Whirlpool - 30" Built-In Gas Cooktop
- Key Specs
- Product Height: 4 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Color Finish: Stainless steel
- General
- Product Name: 30" Built-In Gas Cooktop
- Brand: Whirlpool
- Model Number: WCG97US0DS
- Color Finish: Stainless steel
- Dimensions
- Product Height: 4 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 60 pounds (The out of box weight of the item.)
- Features
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Installs Over Built-In Oven: true
- Control Type: Analog
- Control Location: Top
- Digital Display: false
- Hot Surface Indicator(s): false (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
- Child Lock: false (Setting that allows appliance to be temporarily locked to prevent use.)
- Portable: false
- Cooktop Features
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Stainless steel
- Sealed Burners: true (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Specialty Burner(s): Simmer (Do more with your cooktop with burners designed for specific cooking needs and precise control. For example, simmer burners provide consistent, low-temperature heat for melting delicate foods or simmering sauces, while power burners provide high cooking power for quick boiling, searing, or stir-fry cooking.)
- Grate Type: Continuous (Continuous grates allow cookware to be slid from burner to burner, while individual grates require the pot or pan to be lifted when moving around the cooktop.)
- Grate Material: Cast iron
- Dishwasher-Safe Grates: true (Cooktop grates are safe to be washed in a dishwasher if they are treated with a special coating that withstands the high heat, water pressure, and detergent used in a standard wash cycle.)
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Griddle Included: false
- Power
- Cooktop Power Source: Gas
- Certifications Listings & Approvals
- ADA Compliant: true (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Other
- UPC: 883049324074

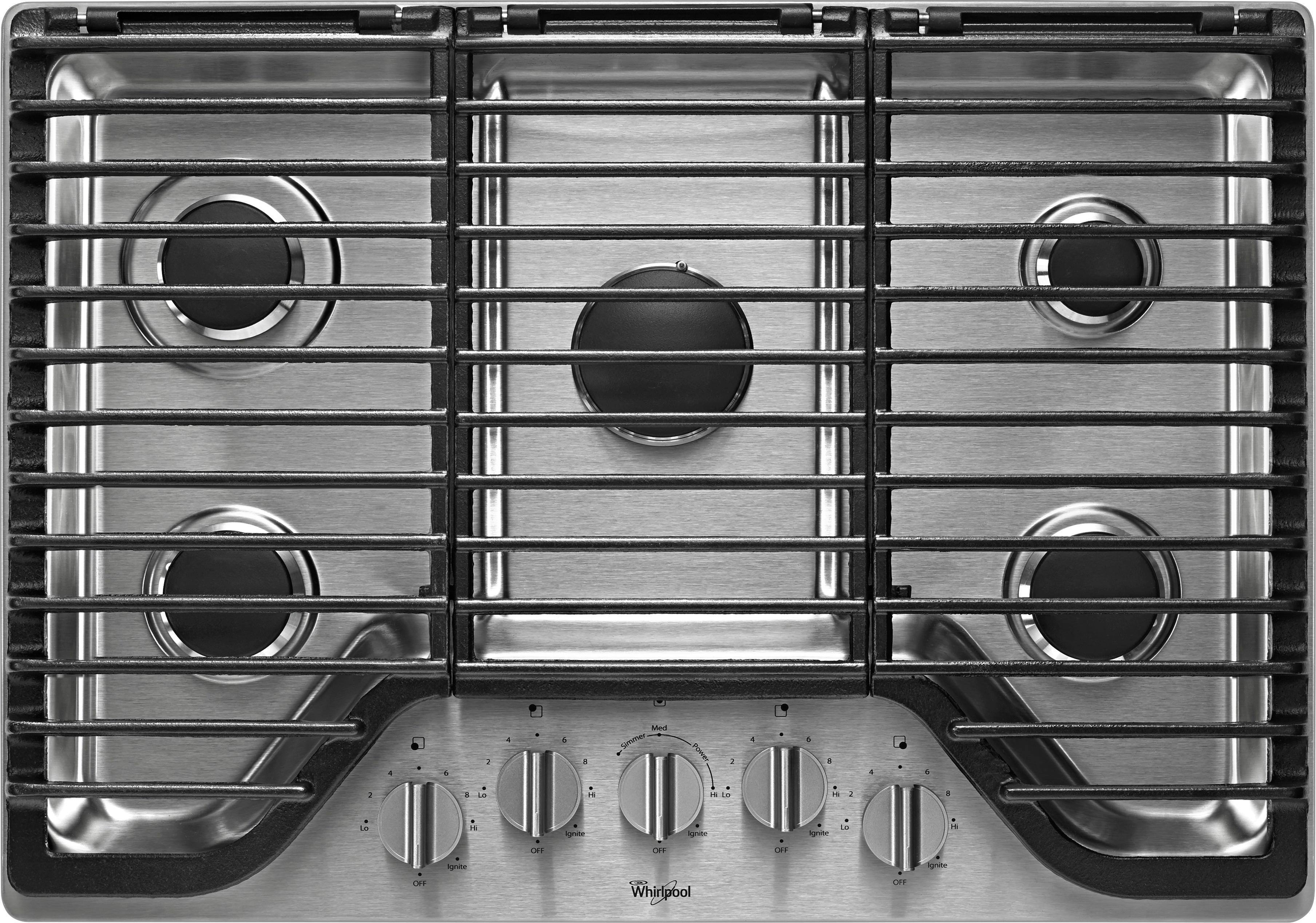

This Whirlpool WCG97US0DS built-in gas cooktop features 5 burners, including SpeedHeat, FlexHeat and AccuSimmer Plus burners, that deliver precise amounts of heat for fast, efficient meal preparation. EZ-2-Lift cast-iron grates facilitate cleanup.
- Dishwasher-safe knobs: Make it easy to control the cooktop.
- Dishwasher-safe continuous cast-iron grates: Create a flat and sturdy cooking surface that makes movement of pans between burners easy and safe.
- Sealed burners: Eliminate the space between the burners and cooktop to contain spills and boilovers for easy cleaning.
- 5 burners: Include 5,000 BTU right-rear AccuSimmer Plus, 9,100 BTU left-front, 9,100 BTU left-rear, 10,000 BTU right-front SpeedHeat and 17,000 BTU center-front FlexHeat burners for versatility.
- SpeedHeat burner: Allows you to boil water and rapidly prepare food.
- FlexHeat burner: Provides flexible cooking options.
- AccuSimmer Plus burner: Lets you cook sauce and other delicate recipes.
- SpillGuard cooktop: Makes it easy to wipe away spills. EZ-2-Lift hinged grates simplify cleanup.
Product Manuals
Q: Can I use a griddle on this cooktop?
A: Yes, you can use a griddle on the cooktop.
Q: Is a vent needed for this cooktop?
A: A vent is recommended for this cooktop.
Q: What are the minimum and maximum cut-out dimensions for the counter top?
A: Hi Melissa, the cut out dimensions are: Cutout Depth Max(IN,inches) 20 Cutout Depth Min(IN,inches) 19 Cutout Depth(IN,inches) 19 1/2 Cutout Width Max(IN,inches) 29 5/16 Cutout Width Min(IN,inches) 28 1/2 Cutout Width(IN,inches) 28 7/8
Q: Can this cooktop be installed over/on top of the wall oven WOS51EC0AS in a kitchen island?
A: undefined
Q: does this item burn propane? I know gas and propane use different burners
A: Hello Tbone! Yes, this does use propane. It will come with a conversion kit. Thank you for your inquiry on our Whirlpool appliances.
A: Hello ANJNadgee! The Griddle is an optional accessory. You can purchase it to use. You may contact Whirlpool at 800-253-1301 to order W10685483 this.
Q: Are the knobs plastic or metal?
A: CW929- The knobs for this cooktop are metal.
Q: Does this 5 burner version come in white?
A: No, the cooktop is not available in white.
