Specifications
- GPU Base Clock Frequency1.62 gigahertzGPU Boost Clock Frequency2.565 gigahertzDisplayPort Ports3 x DisplayPort 2.1HDMI Ports1 x HDMI 2.1Maximum Resolution8K (4320p)Maximum Number of Displays Supported4
- Key Specs
- GPU Base Clock Frequency: 1.62 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.565 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- DisplayPort Ports: 3 x DisplayPort 2.1 (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): Ray tracing (Imaging technology designed to improve graphics rendering.)
- GPU Video Memory (RAM): 16 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- Slot Size: 2.75-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- PCI Express Version: PCI Express 4.0
- Product Height: 335.28 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 129.54 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 50.8 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Graphics Processing Unit (GPU): AMD Radeon RX 7800 XT (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- General
- Brand: XFX
- Model Number: RX-78TMERCBR
- Product Name: SPEEDSTER MERC319 AMD Radeon RX 7800XT 16GB GDDR6 PCI Express 4.0 Graphics Card
- Color: Black
- GPU Chipset Manufacturer: AMD
- Graphics Processing Unit (GPU): AMD Radeon RX 7800 XT (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- Year of Release: 2023
- Performance
- GPU Base Clock Frequency: 1.62 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.565 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)

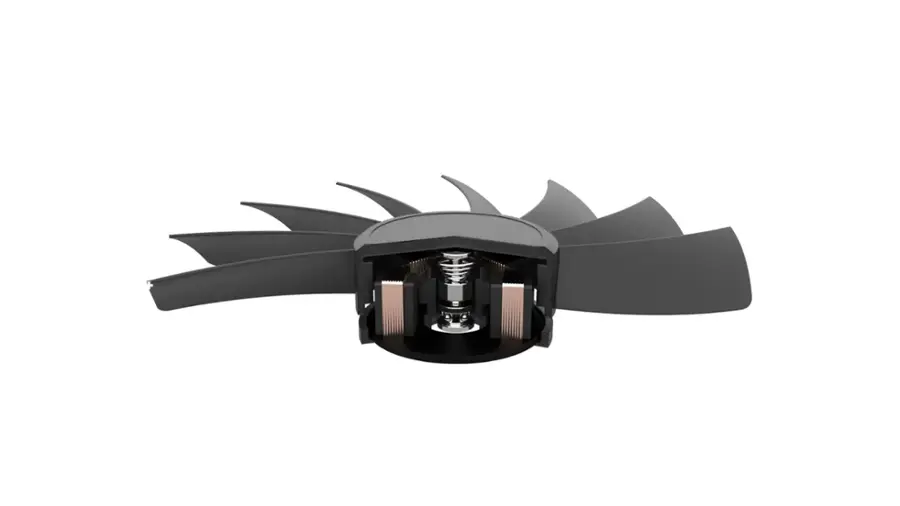

- Cooling System: Fan (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Connectivity
- DisplayPort Ports: 3 x DisplayPort 2.1 (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
- Power Connector: 1x 8pin (The configuration of the connector as it connects the motherboard to a power supply unit.)
- Display
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): Ray tracing (Imaging technology designed to improve graphics rendering.)
- Memory
- GPU Video Memory (RAM): 16 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- GPU Video Memory Base Clock Frequency (RAM): 19.5 gigahertz
- Compatibility
- Slot Size: 2.75-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- System Requirements: Windows 10, Windows 11, Linux, PCI-E x16 capable motherboard. (The software that a product must have for it to be able to integrate with another product.)
- PCI Express Version: PCI Express 4.0
- Operating System Compatibility: Windows, Linux
- Features
- Multi-GPU Support: None
- Technology Support: Direct X 12, Vulkan, Open GL, Open CL
- Included Software: AMD Adrenalin 2023 Software Download
- Power
- Total Graphics Power: 236 watts
- Recommended Power Supply: 700 watts
- Dimensions
- Product Height: 335.28 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 129.54 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 50.8 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 3.7 pounds (The out of box weight of the item.)
- Other
- UPC: 840191502538
AMD Radeon RX 7000 Series graphics cards, featuring the groundbreaking AMD RDNA 3 architecture, deliver ultra-high frame rates for your favorite games at 4K max settings.
- GDDR6 Memory for advanced gaming: Equipped with 16GB of advanced GDDR6 memory to provide high bandwidth performance, enabling 1080p performance for today's most demanding games.
- AMD Infinity Cache: High-performance bandwidth. AMD Infinity Cache enables high bandwidth performance at low power, and low latency when gaming.
- PCI Express 4.0 interface: The AMD Radeon RX 7700 Series graphics cards feature PCIe 4.0, with a throughput of 16GT/s which enables two times the bandwidth when compared to PCIe 3.0
- Windows and Linux Compatable: Enables next-generation gaming.
- AMD RDNA 2 architecture: With up to 32 enhanced compute units delivery powerhouse performance, 1080p gaming is easily possible at smooth framerates and maximum visual settings.
- Virtual reality ready: Provides a powerful next-generation platform for the ultimate immersive virtual reality experience.
- Direct X 12, Vulkan, Open GL, Open CL: Enhances gameplay by delivering ultrarealistic images, detail and texture and improved lighting effects that create lifelike interactivity.
- AMD Smart Access memory: Get more performance through new levels of communication between AMD Ryzen desktop processors and AMD Radeon graphics cards over PCI Express.
- HDMI and DisplayPort outputs: Enable flexible connectivity.
Whats Included
- SPEEDSTER MERC319 RADEON RX 7800XT
Q: What software comes with this graphics card?
A: It comes with the AMD Adrenalin 2023 Software.
Q: How many displays does this graphics card support?
A: The graphics card supports a maximum of 4 displays.
Q: What is the recommended power supply for this graphics card?
A: The recommended power supply for this graphics card is 700 watts.
Q: What type of memory does this graphics card use?
A: This graphics card is equipped with 16GB of GDDR6 memory.
Q: Does this graphics card support Virtual Reality?
A: Yes, this graphics card is VR ready and provides a powerful platform for an immersive virtual reality experience.
Q: What interface does this graphics card use?
A: This graphics card utilizes a PCI Express 4.0 interface.
Q: Are both power connections required to be connected for the card to work with two monitors?
A: Both power connection are required for the card to work at all.
Q: Will a Corsair 750e fully modular PSU be adequate for this GPU? Thank you!
A: You should be okay as long as you have the 2 8 pins avaliable. The card uses a little more wattage than the equivalent 4070, but you shouldn't have an issue
