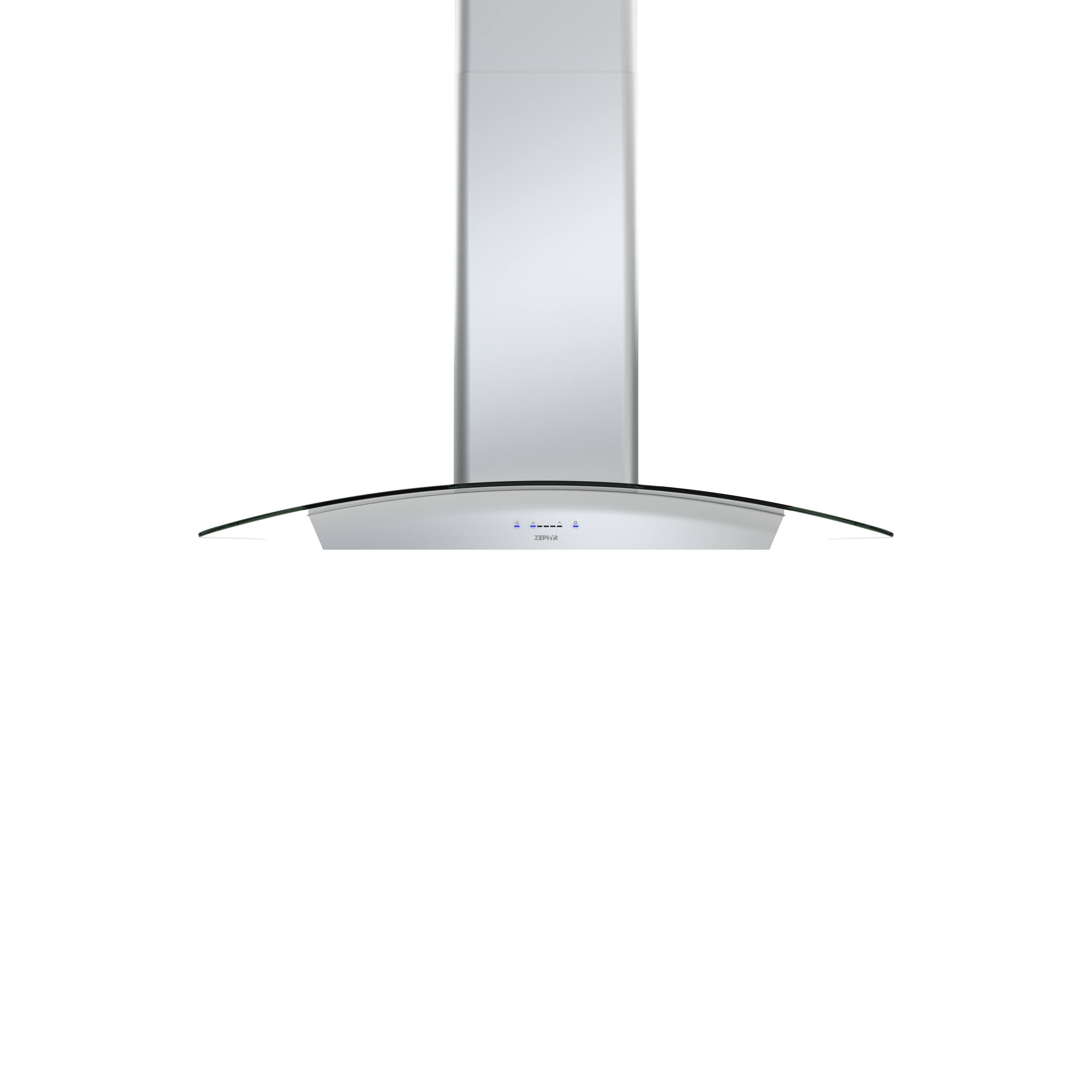

Zephyr - 35 inches - Convertible - Wall Range Hood - Stainless Steel/Glass
Model: ZRV-M90BGC
SKU: 5735138
This item is no longer available in new condition. See similar items below
- Key Specs
- Product Height: 23 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 3/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Convertible
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Color Finish: Stainless steel
- General
- Product Name: Ravenna 36 in. 600 CFM Wall Mount Range Hood with LED Light in Stainless Steel with Clear Glass Canopy
- Brand: Zephyr
- Model Number: ZRV-M90BGC
- Color: Stainless Steel/Glass
- Color Finish: Stainless steel
- Dimensions
- Product Height: 23 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 26 inches
- Maximum Installation Height Above Cooktop: 36 inches
- Product Width: 35 3/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 35 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 43.5 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Features
- Exhaust Vent Location: Top
- Vent Type: Convertible
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Wall
- Number of Fan Speeds: 5
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Button
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Remote Control: false
- Auto Fan Shut-Off: true
- Integrated Light(s): true
- Number of Lights: 1
- Number of Light Levels: 2
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 9 watts
- Filter Info
- Filter Material: Other
- Removable Grease Filter: true
- Electrical Specification
- Amperage: 4 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Other
- UPC: 646328005626
The delicate curve of a glass canopy arching over your cooktop will add an elegance to your everyday cooking experience. Updated with Zephyr’s trend-setting Black Stainless Steel, the Ravenna combines 21st century know-how with timeless beauty. Featuring clear and smoke-gray glass canopy options, as well as ACT™ technology, ICON Touch® Controls, BriteStrip™ LED lighting and a powerful, yet quiet, 600 CFM blower.
- Airflow Control Technology™ (ACT™): Airflow Control Technology or ACT™ is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- BriteStrip™ LED Lighting: The future just got brighter. BriteStrip™ LED lighting includes key features such as being dimmable, lasts 25,000 hours, has a 3,000K warm white color and evenly distributes light over your cooking surface.
- Optional Ductless Recirculating Kit: Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
- Optional Extension Duct Cover Kit: Extension duct cover kit to accommodate ceiling heights up to 12 ft. (see spec sheets for more details).
Product Manuals
Q: How many inches above the gas cooktop should the Zephyr Ravenna range hood be installed?
A: Hello, The mounting height of this hood is 26 - 34 inches. You may view more detailed information on the Zephyr web site here: https://zephyronline.com/product/ravenna-wall-mount-range-hood/ Thank you for your inquiry! - Zephyr
