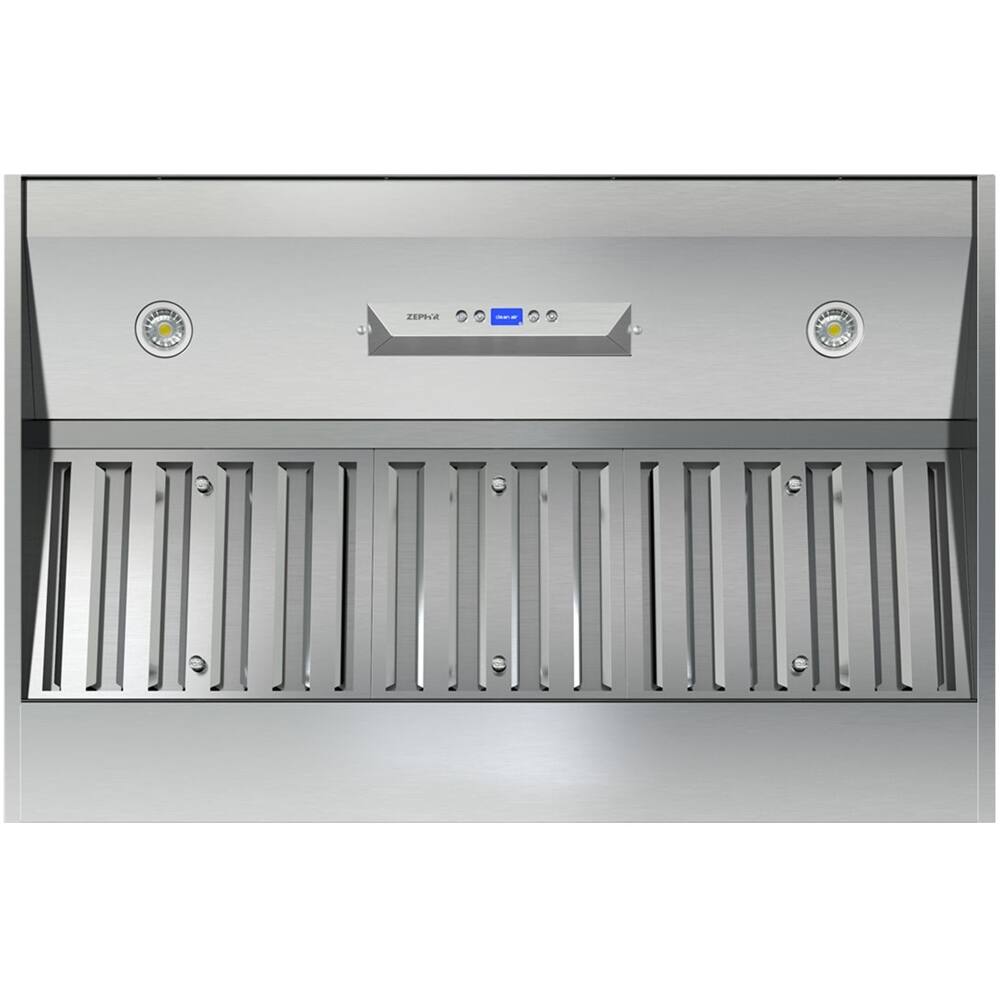

Zephyr - 36 inches - Range Hood Insert - Stainless Steel
- Key Specs
- Product Height: 12 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 34 2/5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 22 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted
- Color Finish: Stainless steel
- General
- Product Name: Essentials Power Monsoon DCBL 34" Externally Vented Range Hood
- Brand: Zephyr
- Model Number: AK9434AS
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 12 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 26 inches
- Maximum Installation Height Above Cooktop: 36 inches
- Product Width: 34 2/5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 22 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 0 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Width: 34 1/2 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 22 5/8 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted
- Range Hood Type: Insert
- Number of Fan Speeds: 5
- Remote Control: true
- Integrated Light(s): true
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 12 watts
- Filter Info
- Filter Material: Other
- Electrical Specification
- Amperage: 4 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Other
- UPC: 646328002649
Monsoon DCBL is one-of-a-kind. The traditional one-piece liner has been upgraded with innovative technology, that improves performance and is easy to install and maintain.
- 715 cfm exhaust capacity: Quickly pull smoke and cooking odors out of the air.
- 5 fan-speed settings: Allow you to adjust ventilation to meet your needs.
- Electronic controls: Offer simple operation.
- Dual LED lights shine down on the cooktop: To illuminate your workspace.
- Top and rear exhaust: Allow the option of connecting the duct work to either the top or the rear of the hood.
- Stainless steel finish: Offers a sleek, stylish look.
- Designed to fit standard 8" round ductwork: For ease of installation.
Whats Included
- Zephyr Essentials Power Monsoon DCBL 34" Externally Vented Range Hood
Q: Does this range hood have LED lights?
A: Yes, this range hood has LED lights. The product specifications indicate that the "Bulb Type Required" is LED and "Bulb(s) Included" is true. Additionally, the product features mention "Dual LED lights shine down on the cooktop".
Q: What is the required cut-out width for installing this range hood?
A: The required cut-out width for installing the Essentials Power Monsoon DCBL 34" Externally Vented Range Hood is 34 1/2 inches. This information can be found in the product specifications section of the provided context.
Q: What is the voltage requirement for operating this range hood?
A: The voltage requirement for operating the Essentials Power Monsoon DCBL 34" Externally Vented Range Hood is 120 volts. This information is specified in the product specifications section of the provided context.
Q: What brand manufactures this range hood?
A: The brand that manufactures this range hood is Zephyr. This information can be found in the product specifications, where it is explicitly stated that "Brand: Zephyr".
Q: What is the amperage draw of this range hood?
A: The amperage draw of the Zephyr Essentials Power Monsoon DCBL 34" Externally Vented Range Hood is 4 amperes. This information is found in the product specifications section, under the "Amperage" row.
Q: What is the maximum height above the cooktop that this range hood can be installed?
A: The maximum height above the cooktop that this range hood can be installed is 36 inches. The minimum installation height is 26 inches.
Q: What is the required cut-out depth for installing this range hood?
A: The required cut-out depth for installing the Essentials Power Monsoon DCBL 34" Externally Vented Range Hood is 22 5/8 inches. This information can be found in the product specifications section of the provided context.
Q: Is this range hood certified by UL?
A: Yes, this range hood is certified by UL. The context states that "UL Listed: true".
