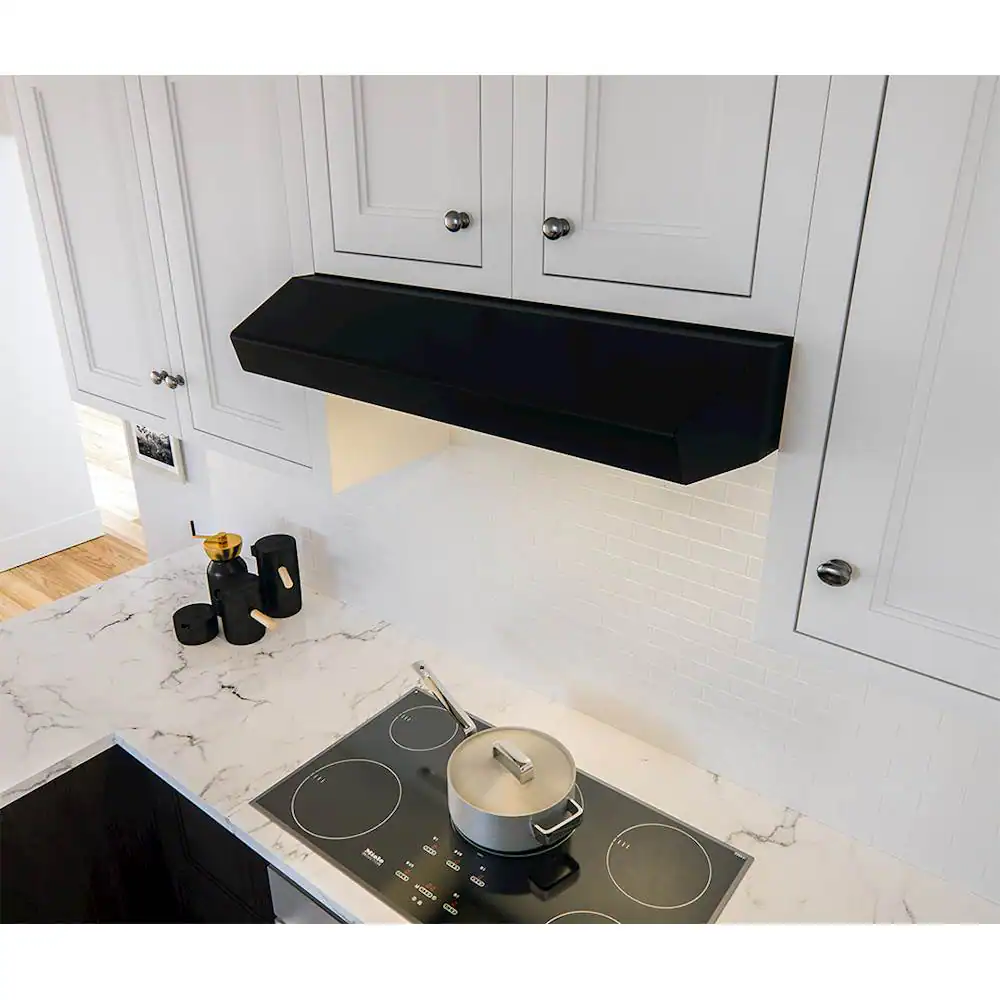

Zephyr - 36 inches - Under cabinet Range Hood - Black
- Key Specs
- Product Height: 5 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted
- Color Finish: Black
- General
- Product Name: Breeze II 36" Externally Vented Range Hood
- Brand: Zephyr
- Model Number: AK1236BB
- Color: Black
- Color Finish: Black
- Dimensions
- Product Height: 5 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 26 inches
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 21.7 pounds (The out of box weight of the item.)
- Features
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted
- Range Hood Type: Under cabinet
- Number of Fan Speeds: 3
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: true
- Integrated Light(s): true
- Bulb(s) Included: true
- Performance
- Maximum Air Flow Capacity: 400 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 175 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Filter Info
- Filter Material: Aluminum
- Dishwasher-Safe Filter: true
- Electrical Specification
- Amperage: 1.4 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Other
- UPC: 646328005862
Clear kitchen air quickly with this 36-inch Breeze II under-cabinet range hood. The integrated three-speed blowers let you control the ventilation level, and the dishwasher-safe aluminum filters are simple to clean. Dual-level halogen bulbs add reliable illumination to this Breeze II under-cabinet range hood so your cooking area stays well lit.
- 400 cfm exhaust capacity: Quickly pull smoke and cooking odors out of the air.
- Three fan speed settings: Allow easy adjustments to meet your needs.
- Electronic controls: Offer simple operation.
- Two-level LED strip light: Illuminate the cooktop below for better visibility while cooking.
- Timed delay-off function: Lets the hood automatically clear the air and power down after five minutes.
- Dishwasher-safe aluminum filters: Make cleanup quick and easy.
- Horizontal and vertical exhaust: Connect the ductwork to either the top or the rear of the hood.
- Low-profile body: Delivers a stunning design and quality performance.
- Convertible to nonvented operation: Use a ductless recirculating kit 0AK11-21001 to make the hood nonvented (kit is sold separately).
Whats Included
- Zephyr Breeze II 36" Externally Vented Range Hood
A: Hello, The Breeze II is an under cabinet style hood- that is installed under your existing cabinet. It requires a 10X 3 1/4" duct- or you may need to use an adapter if you have a round duct. You can view detailed information and specifications on our web site zephyronline.com and on the Breeze Ii spec page: http://docs.zephyronline.com/docs/specs/breeze2b_spec.pdf You can also view detailed instalation information in the User Manual Guide- pages 11- 17. Thank you for your inquiry! http://docs.zephyronline.com/docs/manuals/breezeb_manual.pdf
Q: Does this range hood (Model: AK1236BS SKU: 5735167) come with dual blower motor or single motor?
A: Hello, The Breeze II comes with a single, 400CFM blower. You may view more details here:http://docs.zephyronline.com/docs/specs/breeze2c_spec.pdf Thank you for your inquiry!
A: Hello, The Breeze II hood is measured in sones. The rating is 1.9- 4.5 on the 3 different speed levels. A sone is a measurement of sound. For example a 1 sone is equated to the silent sound a refrigerator makes- and 4.5 is approximately equivalent to normal conversation on a TV. Thank you for your inquiry!
Q: how is the noise level rated?
A: Hello, The sound is measured and rated in sones. The sone measurement for the Breeze II - with 3 speeds is 1.9- 4.5. Thank you for your inquiry!
Q: What is the height of the hood at the wall? It appears to be taller at the back than the front.
A: Hello, The height of the Breeze II at the back is 5 1/2 " you may view more details here: http://docs.zephyronline.com/docs/specs/breeze2b_spec.pdf Thank you for your inquiry!
A: undefined
A: It has 400 CFM exhaust capacity.
