Key Specs
- Product Height: 8 3/10 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 9/10 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Vent Type: Convertible
- Color Finish: Stainless steel
General

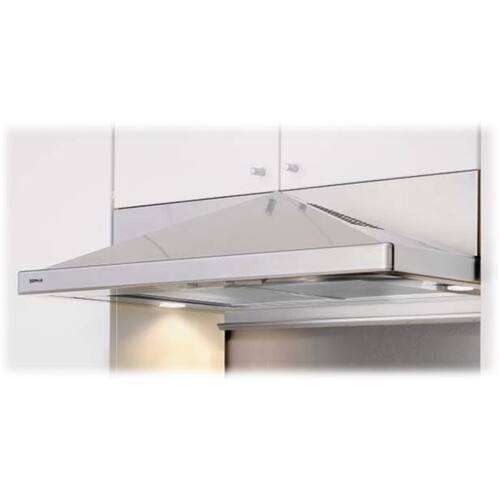

- Product Name: Pyramid 36" Convertible Range Hood
- Brand: Zephyr
- Model Number: ZPY-E36AS
- Color: Stainless Steel
- Color Finish: Stainless steel
Dimensions
- Product Height: 8 3/10 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 32 inches
- Maximum Installation Height Above Cooktop: 32 inches
- Product Width: 35 9/10 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 65 pounds (The out of box weight of the item.)
Features
- Vent Type: Convertible
- Range Hood Type: Under cabinet
- Number of Fan Speeds: 3
- Control Type: Slide
- Display Type: None
- Integrated Light(s): true
- Bulb Type Required: Halogen
- Bulb(s) Included: true
- Maximum Bulb Wattage: 100 watts
Performance
- Maximum Air Flow Capacity: 400 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 210.1 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Maximum Operating Sound Level: 5 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 2 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
Filter Info
- Filter Material: Aluminum
Electrical Specification
- Amperage: 2 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
Other
- UPC: 646328089039

Classic, architectural lines meet at an apex to energize the familiar look of the chimney style under-cabinet hood. This expressive yet utilitarian design also features an adjustable back-panel utensil bar that accommodates a variety of cabinet depths to put cooking utensils within easy reach. New control configuration and 12″ depth ensure simple operation and a true fit with popular cabinet styles.

Adjustable utensil bar: This utensil bar can be installed at multiple heights to accommodate hanging utensils.
Vertical or horizontal ducting: This hood has the ability to vent either out the top or out the back.
3 year parts, 1 year labor warranty: We back our products with an unparallelled level of service and a generous muti-year warranty.
Optional ductless recirculating kit: Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
Compatible Appliances: ZRC-0200, MUA006A, Z0B0040, Z0F-C002
