Name: Zmodo - 4-Channel, 4-Camera Indoor/Outdoor Security System - Black/Silver
Brand: Zmodo
SKU: 2317314
Rating: 3 (1 reviews)

Key Specs
- Night Vision: true
- Number Of Cameras Included: 4
- Number Of Channels: 4
- Indoor Or Outdoor Use: Indoor and outdoor (Indicates the appropriate environment product was designed to be used in.)
General
- Product Name: 4-Channel, 4-Camera Indoor/Outdoor Security System
- Brand: Zmodo
- Model Number: KDA4-BARQZ4ZN-5G
Camera
- Night Vision: true
- Night Vision Distance: 65 feet
- Number Of Cameras Included: 4
- Number of IR LEDs: 24 (Quantity of infrared (IR) LED lights for emitting IR light and allowing the camera to detect objects in low light.)
- Image Sensor Type: CMOS (CCD and CMOS are the two main technologies used in image sensors. CCD, the older of the two types, turns analog light signals into digital pixels. This conversion happens without distortion, resulting in high-quality images. Newer CMOS sensors use transistors at each pixel to move electrical charges. CMOS sensors are typically less expensive, but also require more light to create distortion-free images.)
Compatibility
- Camera Compatibility: Select CCTV-equipped cameras
- Operating System Compatibility: Apple iOS, Android
Connectivity
- Camera Connectivity: Wired (Security system cameras can be set up in several ways. Wired cameras require cables for power and footage transmission, while wire-free cameras don't need cables for either. Wireless cameras still require cables for receiving power but are able to transmit footage via a wireless network.)
Recording & Playback
- Number Of Channels: 4
Storage
- DVR Storage Capacity: 500 gigabytes
Performance
- Indoor Or Outdoor Use: Indoor and outdoor (Indicates the appropriate environment product was designed to be used in.)
Dimensions
- Camera Height: 2.6 inches
- Camera Width: 3.38 inches
- Camera Depth: 2.5 inches
- DVR Height: 1.85 inches
- DVR Width: 11.81 inches
- DVR Depth: 8.66 inches
- DVR Weight: 4.12 pounds
Output
- DVR Output(s): VGA
Display
- Camera Color Display: true
Included
- Camera(s) Included: true
- DVR Included: true
- Monitor Included: false
Warranty
- Manufacturer's Warranty - Parts: 1 year
- Manufacturer's Warranty - Labor: 1 year
Other
- UPC: 846655011561

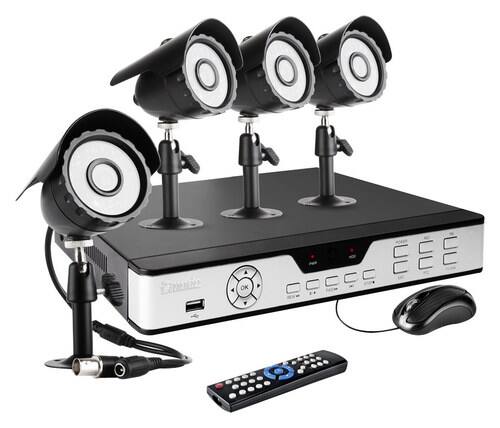

This Zmodo indoor/outdoor security system includes a 4-channel DVR and 4 IR cameras with 1/4" color CMOS sensors, making it easy to capture video footage of your home or business both during the day and at night for simple monitoring.

4 outdoor IR security cameras: Each feature a 1/4" color CMOS sensor with a 3.6mm lens that produces sharp, clear video with 600 TV lines.
24 IR LEDs: Provide night vision up to 65', so you can capture black-and-white footage in low-light environments.
Weather-resistant design: Permits both indoor and outdoor use.
4-channel DVR: Allows you to keep an eye on up to 4 different areas simultaneously. Supports H.264 to simplify video compression.
500GB hard drive: Lets you record footage for reviewing at a later time. Expandable up to 2TB.
Recording resolutions: Include 960H (NTSC/PAL, 12 fps), D1 (NTSC/PAL, 20 fps), HD1 (NTSC/PAL, 20 fps) and CIF (NTSC, 30 fps/PAL, 25 fps).
Display resolutions: Include 704 x 480 (NTSC, D1) and 704 x 576 (PAL, D1). Effective camera pixels include 768 x 494 (NTSC) and 752 x 582 (PAL).
Recording modes: Include continuous, time schedule and motion detection for versatility. Playback modes include normal play, fast forward, fast rewind and frame-by-frame.
Pentaplex operation: Lets you perform multiple commands simultaneously.
BNC 4-channel video input: Features 4 BNC inputs for analog cameras and a VGA video output for connecting to a monitor to enable flexible setup.
Wall-mountable design: Lets you place the cameras in areas that are well concealed.
10/100 Mbps Ethernet LAN with an RJ-45 connector: Allows remote viewing (requires a physical Internet connection).
Compatible with select devices: Featuring iOS 4.3 or later or Android 2.2 or later for wide-ranging use. Also supports Windows XP, Vista, 7 and 8.
