Zmodo - 8-Channel, 8-Camera Indoor/Outdoor Security System - Black
- Key Specs
- Night Vision: true
- Number Of Cameras Included: 8
- Number Of Channels: 8
- Indoor Or Outdoor Use: Indoor, Outdoor (Indicates the appropriate environment product was designed to be used in.)
- General
- Product Name: 8-Channel, 8-Camera Indoor/Outdoor Security System
- Brand: Zmodo
- Model Number: KDS8-BARQZ8ZN-1T
- Camera
- Night Vision: true
- Night Vision Distance: 65 feet
- Number Of Cameras Included: 8
- Number of IR LEDs: 24 (Quantity of infrared (IR) LED lights for emitting IR light and allowing the camera to detect objects in low light.)
- Image Sensor Type: CMOS (CCD and CMOS are the two main technologies used in image sensors. CCD, the older of the two types, turns analog light signals into digital pixels. This conversion happens without distortion, resulting in high-quality images. Newer CMOS sensors use transistors at each pixel to move electrical charges. CMOS sensors are typically less expensive, but also require more light to create distortion-free images.)
- Compatibility
- Camera Compatibility: Select CCTV-equipped cameras
- Operating System Compatibility: Apple iOS, Android
- Connectivity
- Camera Connectivity: Wired (Security system cameras can be set up in several ways. Wired cameras require cables for power and footage transmission, while wire-free cameras don't need cables for either. Wireless cameras still require cables for receiving power but are able to transmit footage via a wireless network.)
- Recording & Playback
- Number Of Channels: 8
- Storage
- DVR Storage Capacity: 1000 gigabytes
- Performance
- Indoor Or Outdoor Use: Indoor, Outdoor (Indicates the appropriate environment product was designed to be used in.)
- Dimension
- Camera Width: 3.38 inches
- DVR Height: 3.9 inches
- DVR Width: 12.8 inches
- DVR Depth: 10.4 inches
- DVR Weight: 4.66 pounds
- Output
- DVR Output(s): HDMI, VGA
- Display
- Camera Color Display: true
- Included
- Camera(s) Included: true
- DVR Included: true
- Monitor Included: false
- Warranty
- Manufacturer's Warranty - Parts: 1 year
- Manufacturer's Warranty - Labor: 1 year
- Other
- UPC: 846655011615
Utilizing an 8-channel DVR and 8 IR security cameras, this Zmodo security system allows you to monitor indoor and outdoor spaces, so you can easily keep your home or business safe. PTS (pan/tilt/zoom) camera control lets you capture a wide area.
- 8 outdoor IR security cameras: Each feature a 1/4" color CMOS image sensor with a 3.6mm lens that produces sharp video with 600 TV lines.
- 24 IR LEDs: Provide night vision up to 65', so you can capture black-and-white footage in low-light environments.
- Weather-resistant design: Permits both indoor and outdoor use.
- 8-channel DVR: Allows you to keep an eye on up to 8 different areas simultaneously. Supports H.264 to simplify video compression.
- 1TB hard drive: Lets you record footage for reviewing at a later time. Expandable up to 2TB.
- Selectable recording resolutions: Include 960H (NTSC/PAL, 12 fps), (NTSC/PAL, 20 fps), HD1 (NTSC/PAL, 20 fps) and CIF (NTSC, 30 fps/PAL, 25 fps).
- Display resolutions: Include 704 x 480 (NTSC, D1) and 704 x 576 (PAL, D1). Effective camera pixels include 768 x 494 (NTSC) and 752 x 582 (PAL).
- Recording modes: Include continuous, time schedule and motion detection for versatility.
- BNC 8-channel video input: Features 8 BNC inputs for analog cameras and a VGA output for connecting to a monitor to enable flexible setup.
- Wall-mountable design: Lets you place the cameras in areas that are well concealed.
- 10/100 Mbps Ethernet LAN with an RJ-45 connector: Allows remote viewing (requires a physical Internet connection).
- Compatible with select devices: Featuring iOS 4.3 or later or Android 2.2 or later for wide-ranging use. Also supports Windows XP, Vista, 7 and 8.
Whats Included

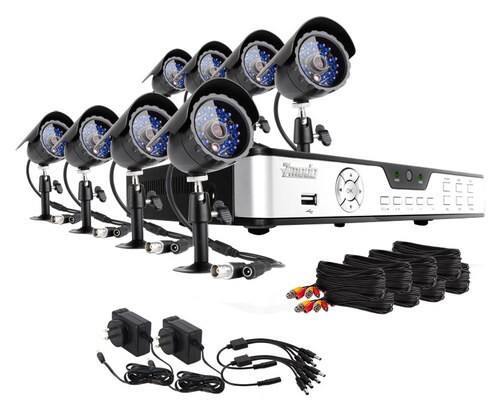

- 8 outdoor security cameras, 8-channel 960H resolution DVR
- Eight 60' CCTV power and video cables, two 1-4 splitter cables
- Quick Setup Guide
- Two 12V/1500 mA security camera power supplies, DVR power supply, IR remote, software CD
Q: Are all 8 cameras ptz? If not, then how many are ptz?
A: The Zmodo DVR has the option to connect a PTZ camera through a RS-485 port, but none of the included cameras are PTZ enabled.
Q: There are 2 different answers for the audio. Is there audio even if you can't record it?
A: No, this is not designed to support audio recording or playback.
Q: Does this system have audio?
A: This model DVR that comes with this security kit used to support audio. We have upgraded it to a newer DVR that does not support audio. We realize that sounds contradictory to lose a feature with the change, but the other features are better. So the answer is no, going forward, it does not support audio.
Q: Can I connect using android phone
A: Yes you can.
