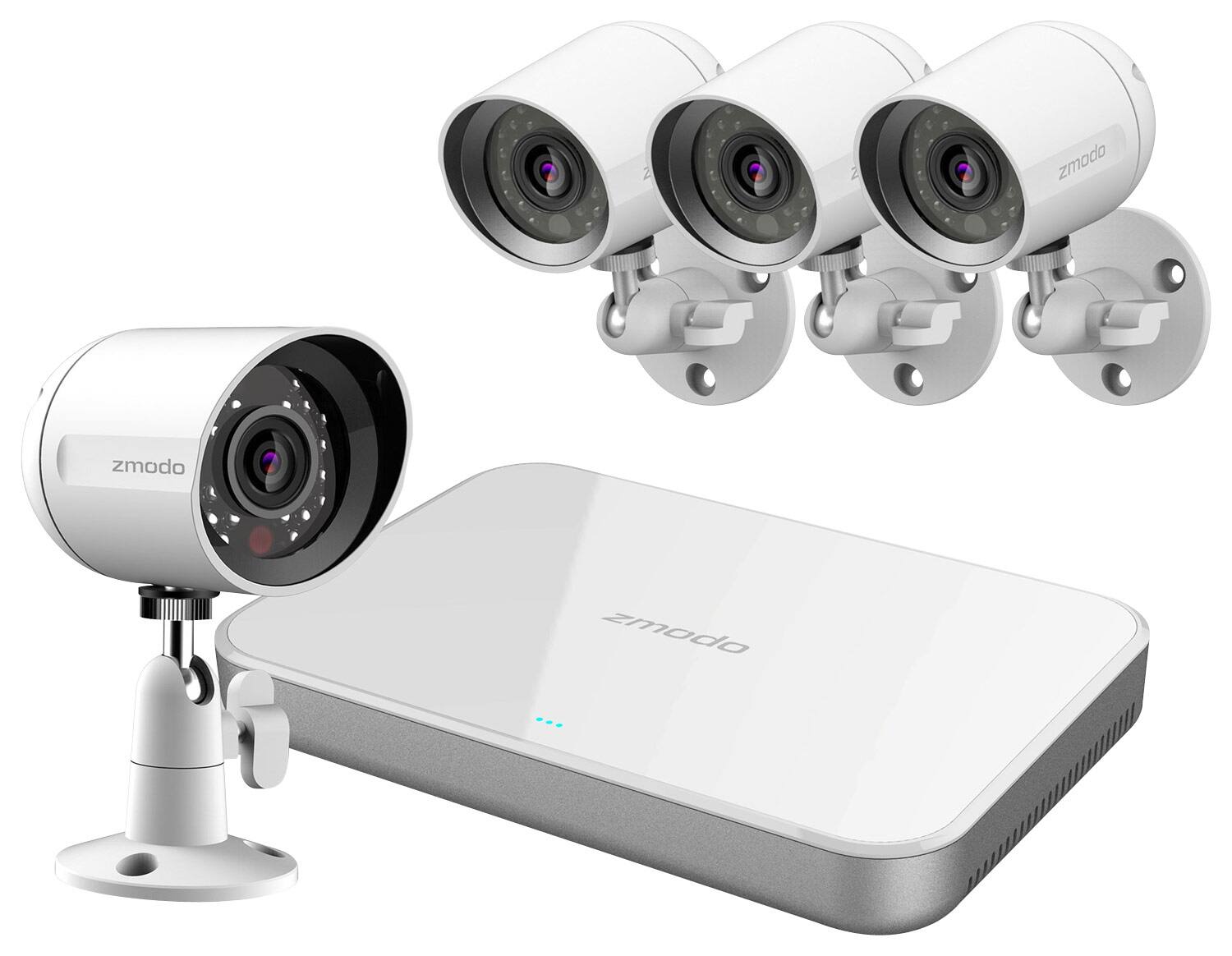

Zmodo - Mini 4-Channel, 4-Camera Outdoor High-Definition DVR Surveillance System - White
- Key Specs
- Camera Resolution: 720 (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Field Of View: 81 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
- Night Vision: true
- Number Of Cameras Included: 4
- Number Of Channels: 4
- Recording Resolution: 720 (Refers to the number of pixels, both horizontally and vertically, used to capture video. The higher the resolution the finer the video detail that can be seen.)
- Indoor Or Outdoor Use: Outdoor (Indicates the appropriate environment product was designed to be used in.)
- Minimum Operating Temperature: 14 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 122 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- General
- Product Name: Mini 4-Channel, 4-Camera Outdoor High-Definition DVR Surveillance System
- Brand: Zmodo
- Model Number: ZM-SS7CD8D4-S-1TB
- Camera
- Camera Resolution: 720 (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Field Of View: 81 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
- Night Vision: true
- Night Vision Distance: 65 feet
- Number Of Cameras Included: 4
- Day/Night Mode: true (Captures images/video with optimal clarity by automatically adjusting settings to various light levels.)
- IP Camera: Wired (An Internet Protocol (IP) camera is able to record and display image/video data via the internet, without need for a local recording device.)
- Minimum Required Illumination: 0.1 lux (Refers to the minimum amount of light needed to view objects. Generally, the lower the number, the better the camera can detect objects in little to no light.)
- Number of IR LEDs: 25 (Quantity of infrared (IR) LED lights for emitting IR light and allowing the camera to detect objects in low light.)
- Camera Iris: Fixed (The iris is the opening on a camera that controls how much light reaches its image sensor, which in turn affects image/video clarity. Fixed and manual irises are generally suited for locations with consistent levels of light. Automatic and "P" (precise) irises automatically adjust in response to changing levels of light and are suited for a wider variety of environments. "P" irises feature additional capabilities for improving footage clarity.)
- Camera Mount Type: Wall mount
- Compatibility
- Camera Compatibility: Select Zmodo wired cameras
- Operating System Compatibility: Android, Apple iOS, Windows, Mac, Chrome
- Connectivity
- Camera Connectivity: Wired (Security system cameras can be set up in several ways. Wired cameras require cables for power and footage transmission, while wire-free cameras don't need cables for either. Wireless cameras still require cables for receiving power but are able to transmit footage via a wireless network.)
- Recording & Playback
- Records Audio: false
- Number Of Channels: 4
- Video Compression Type: H.264
- Simultaneous Operation: Pentaplex (Refers to the number of operations (live view, record, playback, back up, remote control, etc.) the DVR can perform simultaneously. For example, a simplex DVR can perform only one task at a time, such as recording or playback of footage, while a pentaplex DVR can multitask up to 5 functions.)
- Recording Resolution: 720 (Refers to the number of pixels, both horizontally and vertically, used to capture video. The higher the resolution the finer the video detail that can be seen.)
- Storage
- DVR Storage Capacity: 1000 gigabytes
- Performance
- Indoor Or Outdoor Use: Outdoor (Indicates the appropriate environment product was designed to be used in.)
- Minimum Operating Temperature: 14 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 122 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- Features
- Audio-Only Option: false
- 3-Axis Adjustable: true
- Auto-On Detection: None
- Dimension
- Camera Height: 4.5 inches
- Camera Width: 2.13 inches
- Camera Depth: 3.75 inches
- Camera Weight: 0.65 pounds
- DVR Height: 7.7 inches
- DVR Width: 5.8 inches
- DVR Depth: 0.9 inches
- DVR Weight: 0.58 pounds
- Output
- DVR Output(s): HDMI
- Display
- Clock Display: false
- Camera Color Display: false
- Included
- Camera(s) Included: true
- DVR Included: true
- Monitor Included: false
- Remote Control Included: false
- Cable(s) Included: true
- Warranty
- Manufacturer's Warranty - Parts: 3 years
- Manufacturer's Warranty - Labor: 3 years limited
- Other
- UPC: 889490006767
Zmodo Mini 4-Channel, 4-Camera Surveillance System: With 4-channel video monitoring, this system is the perfect security solution for home or business owners. View footage on a monitor (sold separately) via the HDMI port, or get updates using the Zsight mobile app.
- Stay informed with notifications on your mobile device: Zsight mobile app provides motion-detection alerts via push notifications.
- Monitor your property with 4 cameras: Includes 4 cameras for thorough surveillance.
- View and record from up to 4 channels: Included DVR allows 4-channel simultaneous monitoring.
- Record and store videos with pre-installed hard drive: 1TB hard drive can be expanded up to 2TB (additional hard drive sold separately).
- Capture high-definition footage: 720p resolution offers high quality footage.
Whats Included
- 4-channel DVR with 1TB hard drive, 4 cameras
- 3' CAT5e network cable, 4 camera cables, USB mouse
- Owner's manual
A: Yes, these cameras are powered by our sPoE technology. The cameras connect to the back of the NVR with a provided network cable that will send both power and video to the cameras. You can substitute your own Cat5 or Cat6 cable for longer runs, if needed.
Q: Does this system works without wifi to view the camera if I have it hook up to a screen/monitor ?
A: Yes, these system uses network cables from each camera to the back of the NVR to provide power and video. If you connect the NVR to a monitor, you don't need WiFi or high speed internet.
Q: I have the app on my iPhone,can I load the app to my pc? if yes how.
A: You can access the video feed on any web browser by going to user.zmodo.com and entering the same username and password that you use on the app.
Q: Can you hook up to TV or laptop to watch recording
A: Yes! There is an HDMI port to connect the NVR to a TV or monitor. Most laptop's HDMI ports are for video out, so please check your laptop's specifications to make sure it will work.
Q: What type of cable comes with this system? COAX? CAT5 using POE?
A: This comes with CAT5e cable.
Q: How long are the included cables? Thanks
A: 2 cables are 50ft long, and the other 2 are 98ft long.
Q: does this record all the time
A: It has smart recording options. You can have it record constantly, or just certain times of the day, or just when motion is detected if you want to save HD space on the NVR.
A: Yes, through our free smartphone app (simply called Zmodo) you can access the cameras any time on your Android or IPhone. You can set up the system so that an alert is sent to your phone whenever motion is detected.
