ASUS - ROG Maximus XIII Hero (WiFi 6E) Z590 LGA 1200 (Intel 11th/10th Gen) ATX Gaming Motherboard
Related Item
Specifications
- ChipsetIntel Z690Form FactorATXProcessor SocketSocket LGA 1200Wireless Networking StandardWi-Fi 6ENumber Of Memory Slots4Maximum Memory Supported128 gigabytes
- Key Specs
- Chipset: Intel Z690
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1200 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 128 gigabytes
- Memory Type Supported: DDR4
- General
- Brand: ASUS
- Product Name: ASUS ROG Maximus XIII Hero (WiFi 6E) Z590 LGA 1200 (Intel 11th/10th Gen) ATX Gaming Motherboard
- Compatibility
- Chipset: Intel Z690
- Chipset Compatibility: Intel
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1200 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel 10th Generation Core i9, Intel 11th Generation Core i9
- Slot
- Number of M.2 Slots: 4 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 3
- Number Of Memory Slots: 4
- Connectivity
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Ports
- USB Ports: 1 x USB-A 3.2, 1 x USB-C (The number and type of USB ports the product has.)
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 12 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 9.6 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Memory
- Maximum Memory Supported: 128 gigabytes
- Memory Type Supported: DDR4
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: DDR4 up to 5333 MHz (OC) and many lower speeds (e.g. 3200, 3000, etc.) (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 5 (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 1 year
- Other
- UPC: 723098204272

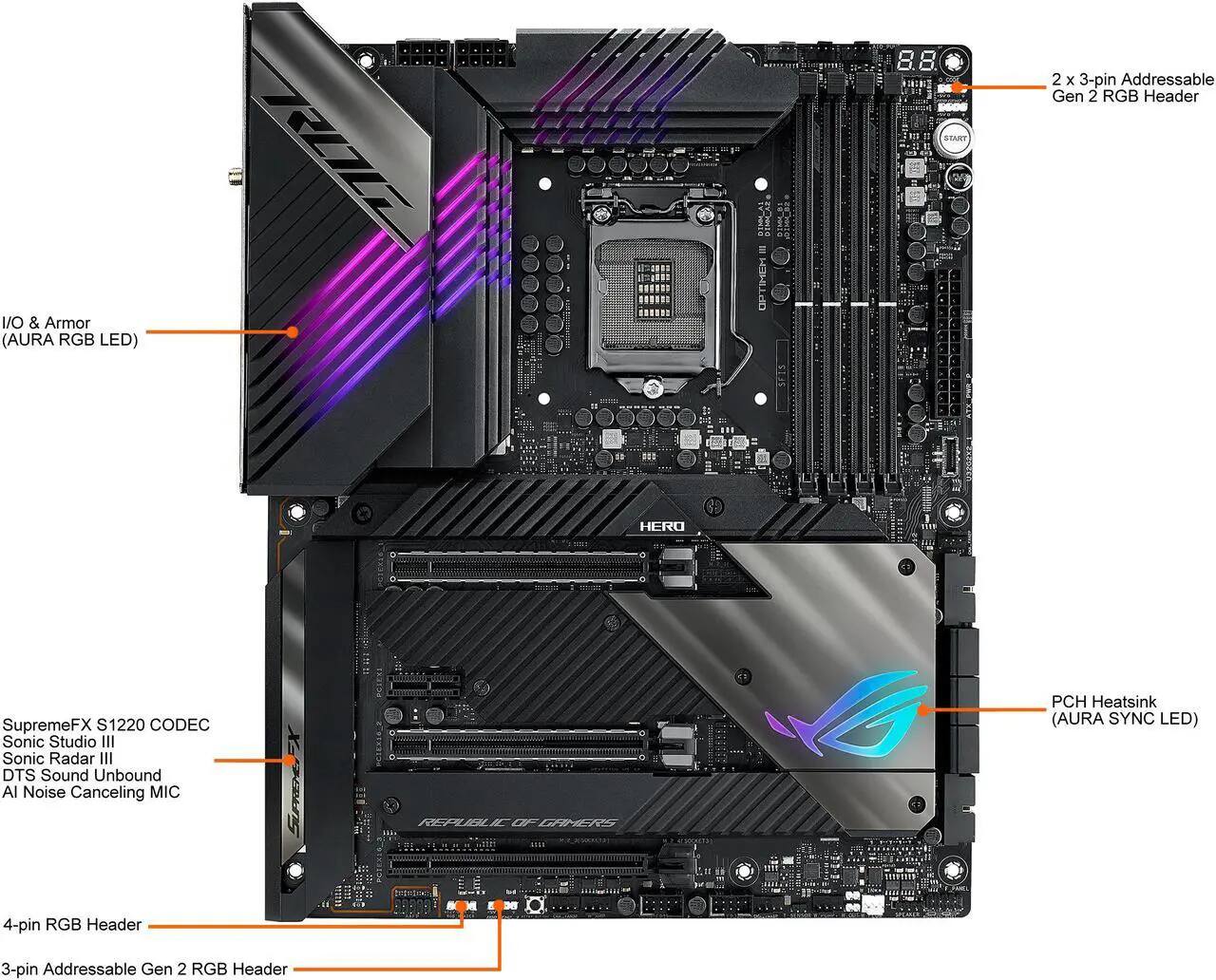

ASUS ROG Maximus XIII Hero is a high-end ATX gaming motherboard from ASUS, built on the Intel Z590 chipset. It is engineered for overclocking, high-performance networking, and advanced connectivity (PCIe 4.0, Thunderbolt 4, WiFi 6E). With a robust power delivery system, premium audio, and extensive cooling support, it targets gamers and enthusiasts who demand top-tier platform flexibility.
- 14 + 2 Phase Power & Thermal Design: Delivers stable power to high-end CPUs using teamed 90 A MOSFET stages, ProCool II connectors, large heatsinks, and VRM cooling.
- Full Connectivity: PCIe 4.0, Thunderbolt & M.2: Supports PCIe 4.0 for 11th Gen Intel, dual Thunderbolt 4 ports (40 Gb/s), and four M.2 slots with heatsinks (two slots support PCIe 4.0)
- Advanced Networking: WiFi 6E + Dual 2.5 Gb Ethernet: Built-in Intel AX210 WiFi 6E (2×2) and dual Intel I225-V 2.5 Gb Ethernet ports offer both ultra-fast wireless and wired networking.
- 14 + 2 Phase Power & Thermal Design: Delivers stable power to high-end CPUs using teamed 90 A MOSFET stages, ProCool II connectors, large heatsinks, and VRM cooling.
- Full Connectivity: PCIe 4.0, Thunderbolt & M.2: Supports PCIe 4.0 for 11th Gen Intel, dual Thunderbolt 4 ports (40 Gb/s), and four M.2 slots with heatsinks (two slots support PCIe 4.0)
- Advanced Networking: WiFi 6E + Dual 2.5 Gb Ethernet: Built-in Intel AX210 WiFi 6E (2×2) and dual Intel I225-V 2.5 Gb Ethernet ports offer both ultra-fast wireless and wired networking.
