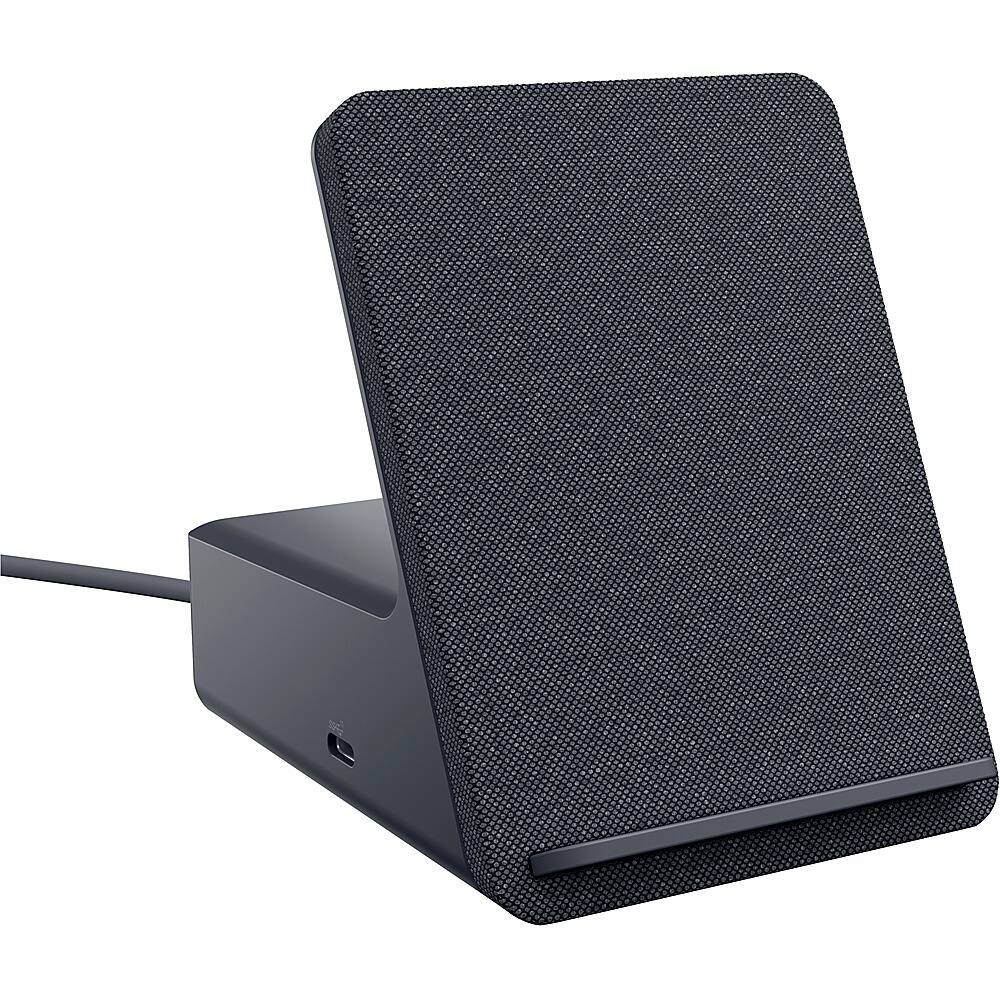

Dell - USB Type C Docking Station - Black
- Key Specs
- Maximum Number of Displays Supported: 2
- Maximum Supported Resolution: 8K (4320p), 4K (2160p)
- Number of DisplayPort Outputs (Total): 1
- Passthrough Power: false (Indicates whether the device allows power to passthrough, possibly with some loss, to another device, typically to charge that other device.)
- General
- Brand: Dell
- Model Number: DELL-HD22Q
- Product Name: USB Type C Docking Station
- Color: Black
- Display
- Maximum Number of Displays Supported: 2
- Maximum Supported Resolution: 8K (4320p), 4K (2160p)
- Ports
- Display Connector(s): 1 x DisplayPort, 1 x HDMI (The number and type of connectors used to connect to an external display.)
- Number of DisplayPort Outputs (Total): 1
- Number of HDMI Ports (Total): 1
- Number of VGA Ports: 0 (VGA (Video Graphics Adapter or Video Graphics Array) is a display standard that transmits via analog signals. This type of interface is typically used to connect a computer to a display device such as a monitor, projector, or TV.)
- Number Of Ethernet Ports: 1
- Number of USB Ports (Total): 5
- USB Ports: 2 x USB-A (The number and type of USB ports the product has.)
- Microphone Input: false (The device features an input for connecting an external microphone.)
- Memory Card Slot: false
- Power
- Powered: true
- Power Supply Input: DC jack (7.4mm)
- Maximum Input Power: 130 watts (The maximum amount of power allowed to come into the device.)
- Passthrough Power: false (Indicates whether the device allows power to passthrough, possibly with some loss, to another device, typically to charge that other device.)
- Compatibility
- Brand Compatibility: Not available
- Model Compatibility: Not Available
- Dimensions
- Product Height: 4 2/5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 4 3/5 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 3 3/5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 23.68 ounces (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 3 year limited
- Warranty - Labor: 3 Year Limited
- Other
- UPC: 884116434467
Enjoy up to 90W of power delivery to your laptop, and charge faster via ExpressCharge on select Dell Commercial Notebooks with the Dell Dual Charge Dock HD22Q. The Wake-on-Dock feature powers on your laptop to get you going and connect quickly to your workspace too!
- Docking Station for a Best User Experience: Docking station with a variety of ports and fast data transfer speeds that allow you to revolutionise your laptop and notebook experience
- USB Type C Host Interface: The USB Type C interface provides smooth data transfer and outstanding performance
- Wired Connectivity Technology: With the wired connectivity, no more worries about low signals and low latency
- 130 W Maximum Power Supply Wattage: 130 W power supply unit (PSU) fulfills your system power requirements
- Color: Premium look and feel with black color
Whats Included
- Owner's manual
A: Dell Dual Charge Dock - HD22Q includes two USB 3.2 Gen 1 Type-A ports (rear), two USB 3.2 Gen 1 Type-A ports (right), and one USB 3.2 Gen 2 Type-C with PowerDelivery 3.0.
A: For technical assistance on this docking station, we recommend contacting the Dell Technical Support team. They are available on Facebook and Twitter(@Dellcares).
Q: This dock work with monitor 165hz by DP PORT?
A: The HDMI port can support up to a 4K HDR 120Hz monitor.
Q: Will this charge the laptop when connected?
A: Yes, if your laptop support charging through the usb-c port. Use the connected usb-c cable to charge you laptop.
Q: Hi does this docking station allows plug in to dual dell monitors
A: Yes, when connected to a compatible laptop, this dock will support up to two external displays. This dock has one DisplayPort 1.4 port and one HDMI 2.1 port, compatible monitors can be connected to these ports.
Q: Does this device have wireless charging capability for phones?
A: If your cell phone has wireless charging capabilities, yes, it will charge your cell phone.
A: I want to say yes, I think you will need to download the updated firmware. Someone asked that same question on the Dell website about connecting their Macbook M2.
Q: For Samsung 22? Does it have speakers?
A: The Dell Docking station does not have speaker nor a 3.5mm jack for headphone / speakers.
