DS18 Audio - EXL-TR 15" Reinforced Cone Subwoofer with Triple Stacked Magnet, 2500W RMS Dual 4-Ohm
Reviews coming soon
About this product
The EXL-TR15.4D is a 15" car subwoofer from the DS18 EXL-TR series. It handles 2500 watts RMS and uses dual voice coils at 4 ohms per coil, so you can wire multiple subwoofers to the final impedance your amplifier is stable at. Peak power handling is 5000 watts. The motor uses a triple stacked magnet assembly. The cone is reinforced. Mounting requires a 14.0" cutout diameter and 9.2" of mounting depth, so confirm your enclosure before installing. Pair it with a matching monoblock amplifier and a properly tuned enclosure to get the most low-frequency output.
Features
2500W RMS / 5000W Peak Power Handling
Rated at 2500 watts RMS and 5000 watts peak. Behind that rating: 4" voice coil on a black aluminum former wound with CCAW wire, a 3 x 98.3 oz ferrite motor and 20mm of one-way excursion. The motor is vented for improved heat dissipation, so it holds output during long, high-power sessions.
Dual 4-Ohm Voice Coil
Dual voice coils let you wire multiple subwoofers in series or parallel to reach the final impedance your amplifier is stable at, which gives you room to grow the system later.
Triple Stacked Magnet
A triple stacked magnet assembly increases motor force, which improves cone control at high power and helps the subwoofer stay accurate instead of getting loose and boomy when driven hard.
Fitment and Recommended Enclosure

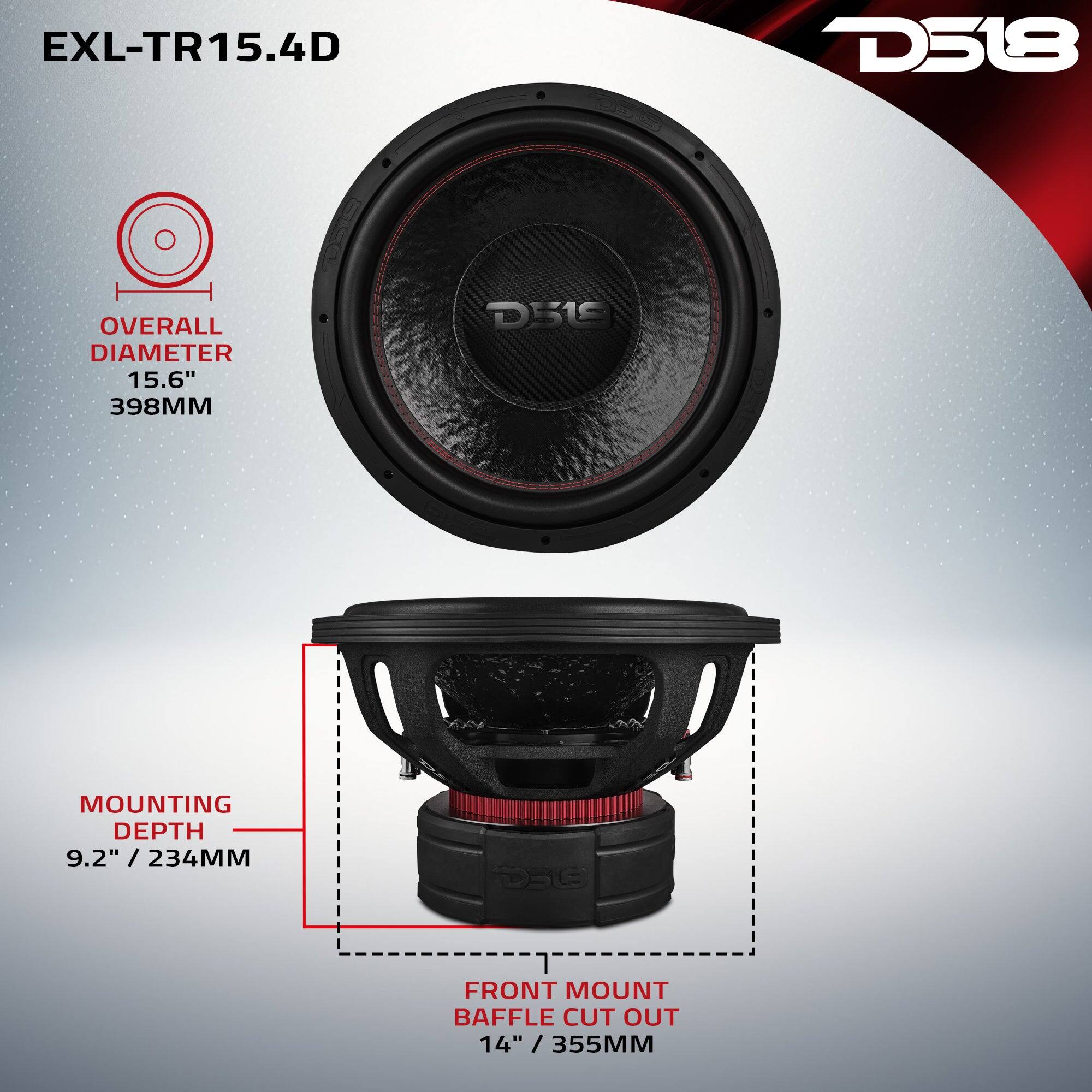

This 15" subwoofer requires a 14.0" cutout diameter and 9.2" of mounting depth. DS18 recommends a sealed enclosure of 1.25 cu ft and a ported enclosure of 2.5 cu ft tuned to 30Hz. Check these numbers against your enclosure before ordering: enclosure volume and tuning change the low-frequency response as much as the driver does.
Reinforced Cone
The reinforced cone stays rigid at high excursion while resisting fatigue over time, so the driver keeps its shape and output under sustained high power.
Specifications
- RMS Power2500 wattsPeak Power Handling5000 wattsImpedance4 ohmsSensitivity84 decibelsDual Voice CoilsYesWoofer Size15"
Reviews
This product doesn't have any reviews yet.
