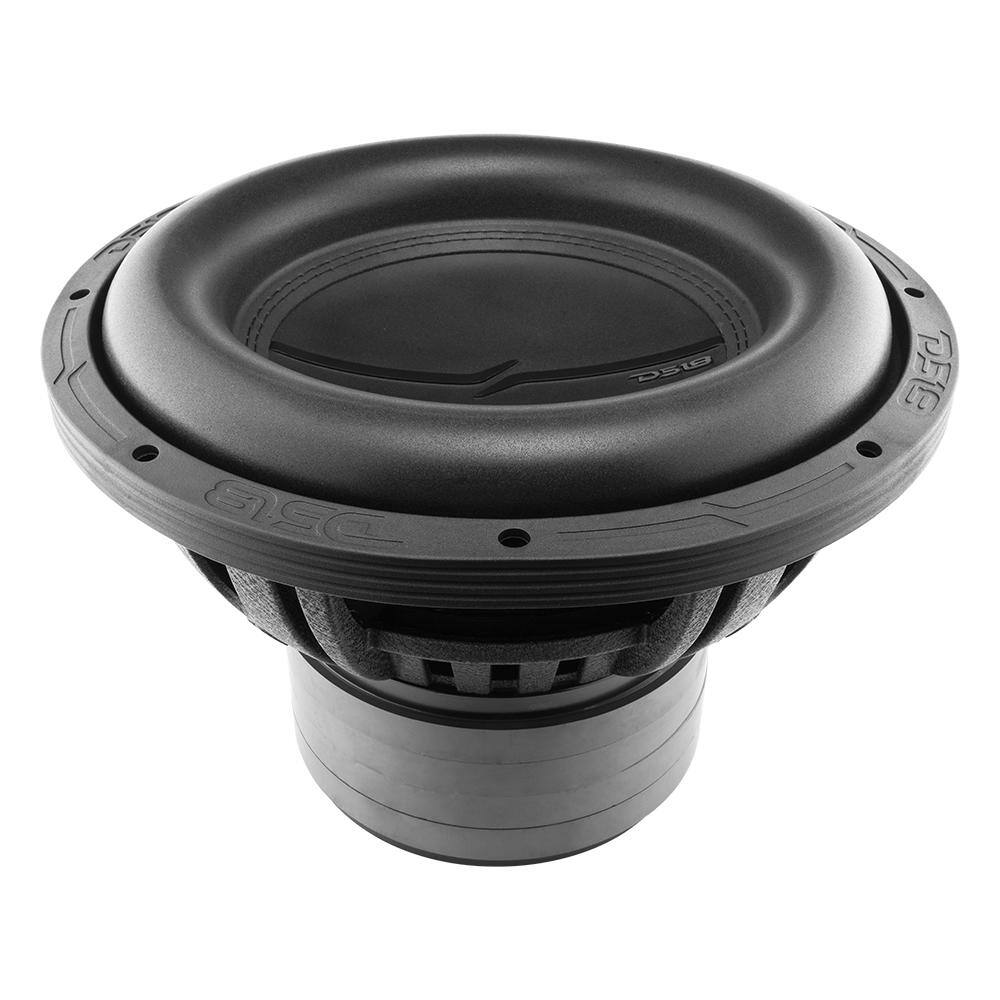

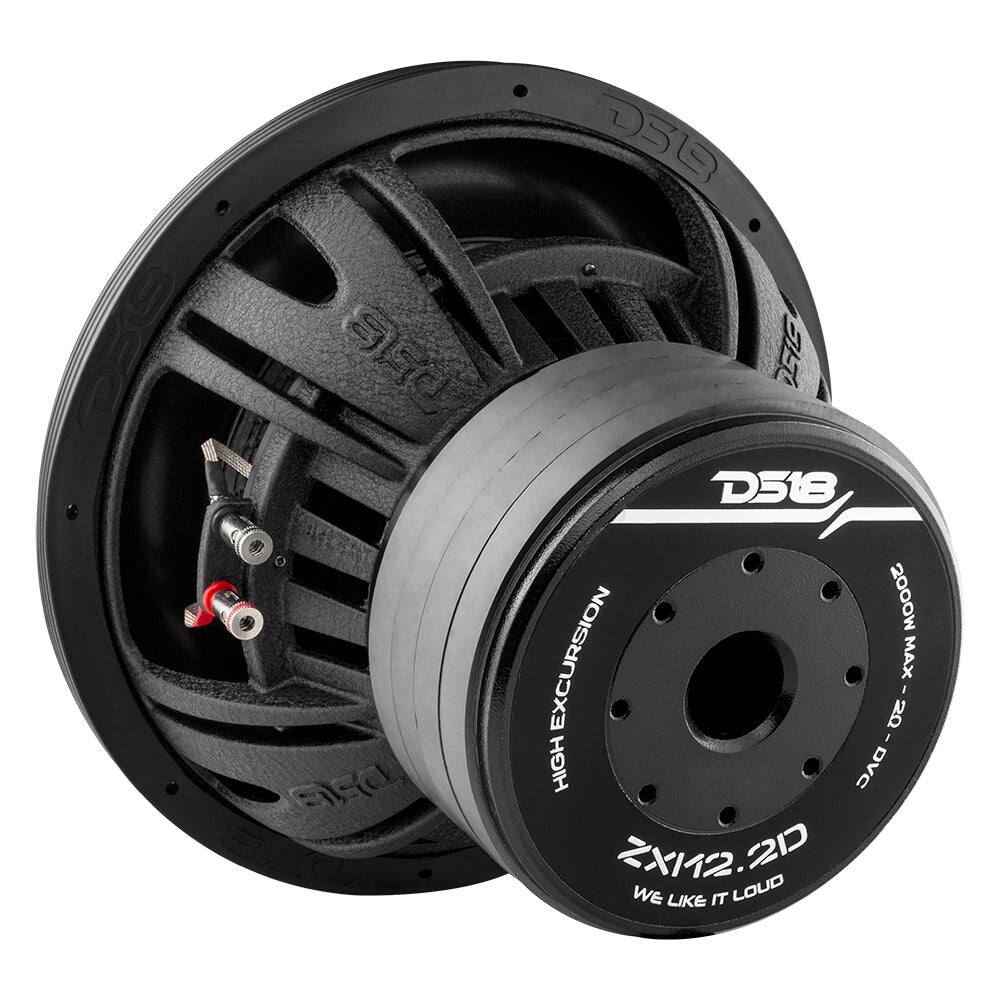

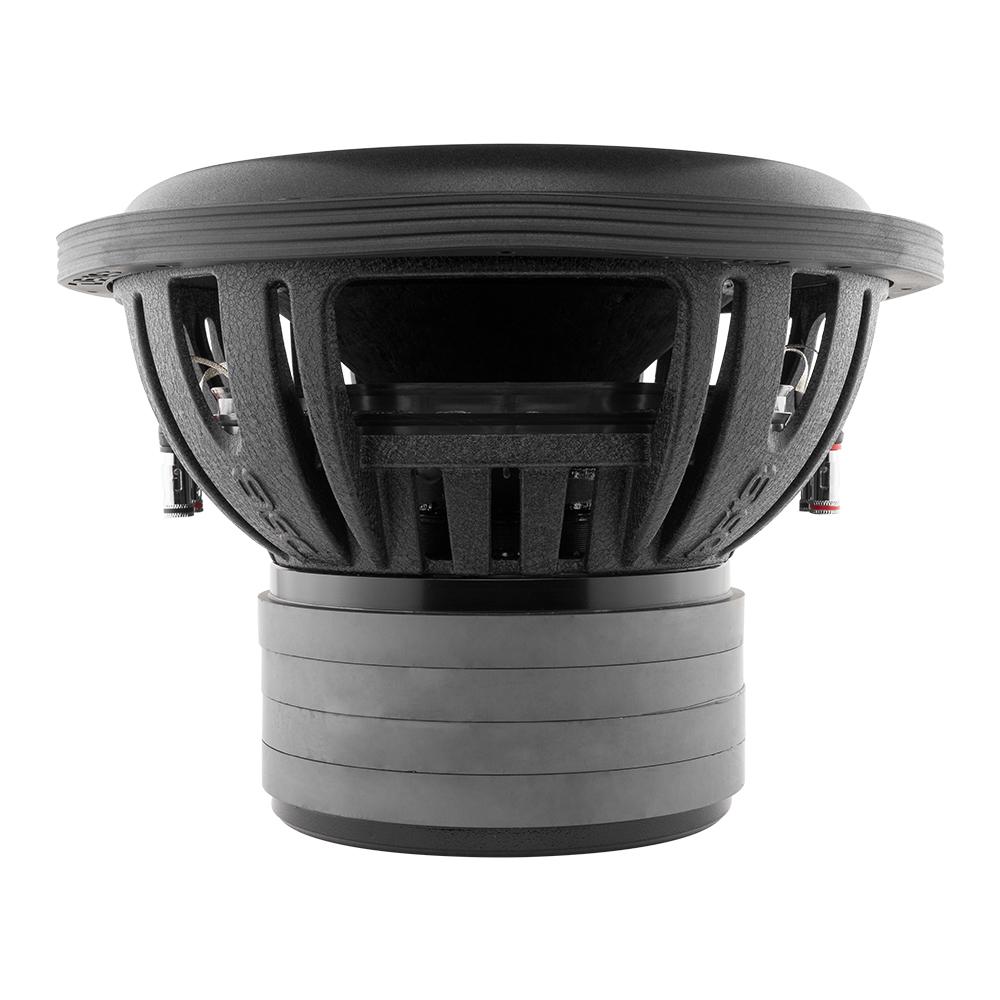

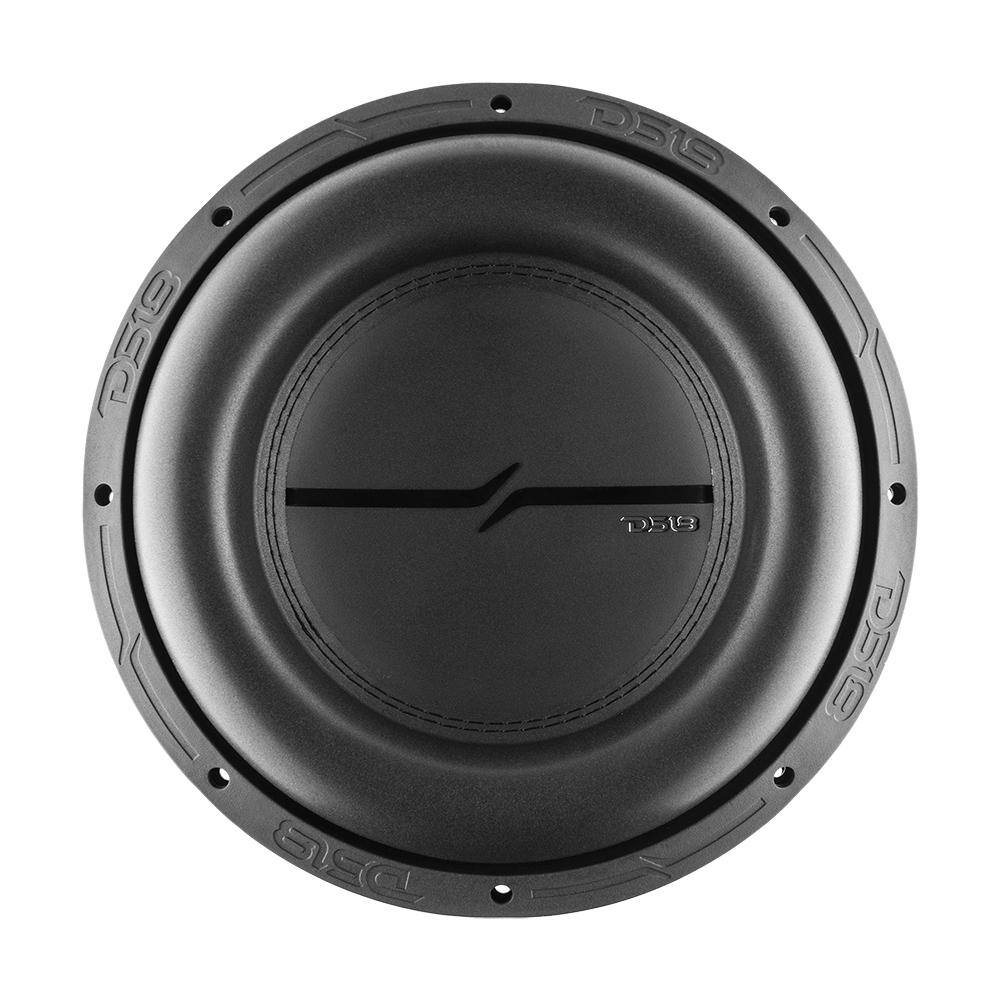

DS18 Audio - ZXI 12" High Excursion Subwoofer with Quad Stacked Magnet, 1000W RMS Dual 2-Ohm

Model: ZXI12.2D
SKU: 13007869

Reviews coming soon

Sold & shipped by

About this product

The ZXI12.2D is a 12" car subwoofer from the DS18 ZXI series. It handles 1000 watts RMS and uses dual voice coils at 2 ohms per coil, so you can wire multiple subwoofers to the final impedance your amplifier is stable at. Peak power handling is 2000 watts. The high-excursion motor and suspension let the cone travel farther for deeper low-frequency output. The motor uses a quad stacked magnet assembly. Mounting requires an 11.1" cutout diameter and 7.55" of mounting depth, so confirm your enclosure before installing. Pair it with a matching monoblock amplifier and a properly tuned enclosure to get the most low-frequency output.

Features

  • 1000W RMS / 2000W Peak Power Handling

    Rated at 1000 watts RMS and 2000 watts peak. Behind that rating: 3" voice coil on a black aluminum former wound with CCAW wire, a 224 oz ferrite motor and 32mm of one-way excursion. That is what lets a 12" cone move this much air without losing control.

  • Dual 2-Ohm Voice Coil

    Dual voice coils let you wire multiple subwoofers in series or parallel to reach the final impedance your amplifier is stable at, which gives you room to grow the system later.

  • High-Excursion Motor for Deep Bass

    The high-excursion motor and suspension allow the cone to travel farther than a conventional subwoofer, which moves more air and produces the low frequencies you feel rather than just hear. Give it a properly tuned sealed or ported enclosure to take advantage of it.

  • Fitment and Recommended Enclosure

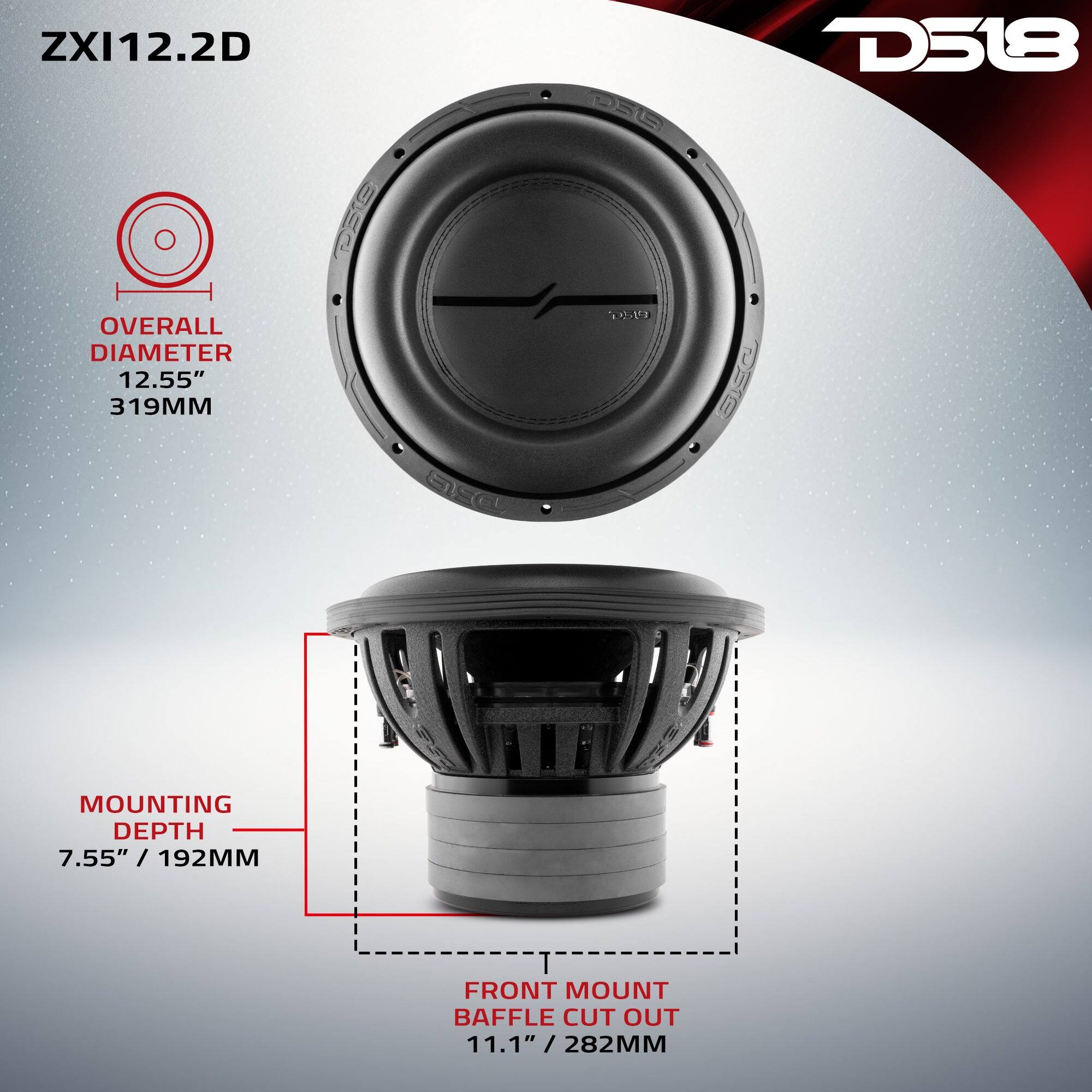

    This 12" subwoofer requires an 11.1" cutout diameter and 7.55" of mounting depth. DS18 recommends a sealed enclosure of 0.75 cu ft and a ported enclosure of 1.4 cu ft tuned to 32Hz. Check these numbers against your enclosure before ordering: enclosure volume and tuning change the low-frequency response as much as the driver does.

  • Quad Stacked Magnet

    A quad stacked magnet assembly increases motor force, which improves cone control at high power and helps the subwoofer stay accurate instead of getting loose and boomy when driven hard.

Specifications

  • RMS Power
    1000 watts
    Peak Power Handling
    2000 watts
    Impedance
    2 ohms
    Sensitivity
    89.2 decibels
    Dual Voice Coils
    Yes
    Woofer Size
    12"
