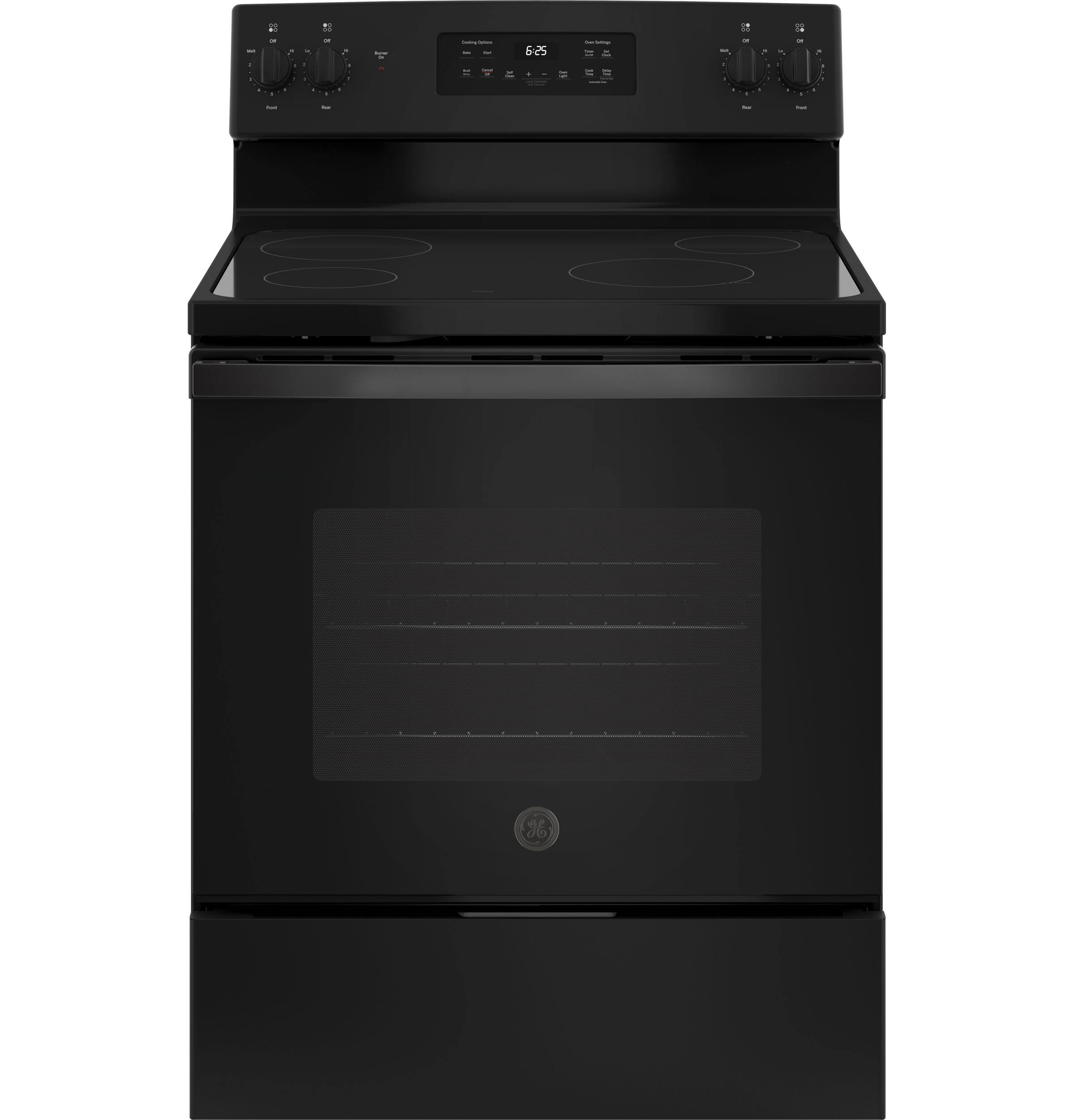

GE - 5.3 Cu. Ft. Freestanding Electric Range with Self-cleaning - Black
- Key Specs
- Color Finish: Black
- Product Height: 47 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 28 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 25 3/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 28 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Oven Cleaning Method: Self-cleaning high heat (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Single/Double Oven: Single Oven
- Cooktop Surface Type: Smoothtop (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Number of Elements: 4
- Induction: false (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: GE
- Model Number: JB625DKBB
- Product Name: 5.3 Cu. Ft. Freestanding Electric Range with Self-cleaning
- Color: Black
- Color Finish: Black
- Dimensions
- Product Height: 47 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 28 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Depth Without Handle: 25 3/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 28 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Product Weight: 159 pounds (The out of box weight of the item.)
- Capacity
- Oven Capacity: 5.3 cubic feet (Standard ovens typically have capacities of about 5 cubic feet, while wall ovens typically have about 3 cubic feet of space.)
- Features
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Range Power Source: Electric
- Fingerprint Resistant: false
- Hot Surface Indicator(s): true (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
- Control Type: Knob
- Oven Control Location: Rear panel
- Clock Display: true
- Oven Light: true
- Power-On Indicator Light(s): true
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Functions
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Oven Cooking Modes: Bake, Broil
- Oven Settings: Delay Bake Option, Delay Clean Option, Time Bake, Timer
- Oven Features
- Oven Cleaning Method: Self-cleaning high heat (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Single/Double Oven: Single Oven
- Drawer Type: Storage (Many ranges have a drawer located beneath the oven. In some models, this drawer functions as a broiler for high-heat cooking and browning. Other models have warming drawers to keep prepared foods warm until serving. If the drawer has no cooking function, it serves as convenient storage for pans and baking sheets.)
- Broiler Location: Oven
- Number of Oven Racks: 2
- Number of Oven Rack Positions: 6
- Oven Window: true
- Cooktop Features
- Cooktop Surface Type: Smoothtop (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Ceramic, Glass
- Number of Elements: 4
- Bridge Element: false (This feature is an additional heating element located between two individual burners. When this is enabled, the individual burners and the bridge element act as one connected cooktop. This equal heat distribution on the cooktop surface helps accommodate larger cookware, such as roaster pans or griddles.)
- Specialty Element(s): PowerBoil
- Induction: false (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- Electrical Specification
- Amperage: 40 amperes (Strength of electrical current.)
- Voltage: 208 volts (Amount of power needed to support an electrical current.)
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Certifications Listings & Approvals
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Chemical Disclosures: For more information about chemicals in this product, including PFAS chemicals, visit: https://www.geappliances.com/chemical-reports. Para obtener más información sobre los productos químicos de este producto, incluidos los productos químicos PFAS, visite: https://www.geappliances.com/chemical-reports.” (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 084691817147
Enjoy advanced cooking features with this 30-inch GE electric range. Its smooth ceramic glass cooktop has two 6-inch burners and two 8-inch burners, including a 2500W Power Boil burner to quickly bring a pot to temperature. The 5.3 cu. ft. oven in this GE electric range has four-pass broil and bake elements for efficient food preparation.
- 8" Power Boil element: Get rapid heat from this powerful 2,500-watt element
- 5.3 cu. ft. oven capacity: Enough room to cook an entire meal at once
- Ceramic glass cooktop: Smooth cooktop easily wipes clean
- Self-clean oven: Cleans the oven cavity without the need for scrubbing
- Removable full-width storage drawer: Store cookware or kitchen accessories
- Dual-element Bake: Upper and lower elements produce even heat and great results
- 8" Power Boil element: Get rapid heat from this powerful 2,500-watt element
- 5.3 cu. ft. oven capacity: Enough room to cook an entire meal at once
- Ceramic glass cooktop: Smooth cooktop easily wipes clean
- Self-clean oven: Cleans the oven cavity without the need for scrubbing
- Removable full-width storage drawer: Store cookware or kitchen accessories
- Dual-element Bake: Upper and lower elements produce even heat and great results
Whats Included
- GE 5.3 Cu. Ft. Freestanding Electric Range with Self-cleaning
- Cooktop cleaning cream and sponge
- Owner's Manual
- GE 5.3 Cu. Ft. Freestanding Electric Range with Self-cleaning
- Cooktop cleaning cream and sponge
- Owner's Manual
A: Hi Rocky - Thanks for your interest! While "special" cooktop is not required, flat bottom pans are essential for good cooking performance since the bottom of the pan needs to touch the glass for the best heat transfer. Stainless Steel and Aluminum are recommended. Check out the following link - RANGE - COOKWARE USED ON A RADIANT SMOOTH GLASS COOKTOP: https://products.geappliances.com/appliance/gea-support-search-content?contentId=16259 - Keeping your range looking new is easy if you watch this quick use and care video. From selecting the best cleaners, proper maintenance practices, to identifying the proper cookware this video will show you all you need to know about enjoying your new range. Play Video: https://www.youtube.com/embed/H4FKm7GUS7w?rel=0 - Also, check out ELECTRIC RANGES & COOKTOPS - GLASS COOKTOP CLEANING INSTRUCTIONS: https://products.geappliances.com/appliance/gea-support-search-content?contentId=16244 - Our cooktops are made of a tough glass ceramic material that is made to withstand scratches with normal use. Sometimes marks may appear on the glass ceramic that seem to be scratches, but are really just marks from a pan and are able to be removed by cleaning. The glass ceramic cooktops are scratch resistant, yet not scratch proof. Check the bottoms of the pans that you use for any rough spots or burned food pieces. Again, the bottoms of the pans should be a "smooth" flat surface. You should be pleased with your choice! Sue
Q: Location of outlet on wall behind range
A: Hey there! When viewing the range from the back, the plug location will be on the lower right side. The outlet location should be no higher than 6 ½ inches off the ground. If we can answer any additional questions, please let us know. Have a wonderful day. -Gina@GEA
A: Hi mde65 - Thanks for reaching out to us and for choosing GE Model # JB625DKWW. We are happy to help. Ovens with a visible bottom bake element generally take 5-10 minutes to preheat. Selected temperature (every 25 degree increment above 350 set temperature will add approximately 45-60 seconds to preheat time. 208 Volt installation (vs 240V) will increase pre-heat time by 25%. If the oven is taking much longer than normal to preheat, first, turn off the circuit breaker for the range, wait 30 seconds, and turn it back on. This makes sure that it is not getting half power. If it was newly installed, then we recommend having the installer check the power cord to make sure it was wired to the range properly. See OVEN PREHEAT TIME TOO LONG: https://products.geappliances.com/appliance/gea-support-search-content?contentId=16540 - A technician may be required for an accurate diagnosis. To schedule service online visit: https://www.geappliances.com/ge/service-and-support/service.htm - We're glad to have you in the family and hope this is helpful. Keep in touch! Sue
A: Hi Fredinflorida- Recipes can differ, as can a food's preheat requirements. Most foods we tested don't require additional oven heating, though there are always exceptions. For precise temps for baking, allow the oven to fully preheat. Electric ovens with a visible bottom bake element can take 5-10 minutes to fully preheat. Keep in touch! Sue
Q: Is the stainless steel finger proof?
A: Hi James- The stainless steel finish is not fingerprint resistant. GE Appliances has a variety of fingerprint resistant finishes that hide fingerprints and smudges. Take a look at Fingerprint Resistant Finishes: https://products.geappliances.com/appliance/gea-support-search-content?contentId=37044 - Keep in touch! SUE@GEA
Q: Is the side of the stove black?
A: White.
Q: Need a manual for glass top stove
A: The manual for the stove is http://products.geappliances.com/MarketingObjectRetrieval/Dispatcher?RequestType=PDF&Name=49-80780-1.pdf .
