GIGABYTE - Z590 AORUS XTREME LGA 1200 Intel Z590 Extended ATX Intel Motherboard
SKU: 11376152
$945.99
Save $152
Comp. Value: $1,097.99
or
$78.84/mo.
suggested payments with12-Month Financing
Show me how
Finance OptionsView your offers
Sold & shipped by
(11)
Related Item
SponsoredGIGABYTE - B650 EAGLE AX (Socket AM5) AMD B650 ATX DDR5 Wi-Fi 6E Motherboard - Black
$159.99
$179.99
Specifications
- ChipsetIntel Z690Form FactorATXProcessor SocketSocket LGA 1200Wireless Networking StandardWi-Fi 6ENumber Of Memory Slots4Maximum Memory Supported128 gigabytes
- Key Specs
- Chipset: Intel Z690
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1200 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 128 gigabytes
- Memory Type Supported: DDR4
- General
- Brand: GIGABYTE
- Product Name: GIGABYTE Z590 AORUS XTREME LGA 1200 Intel Z590 Extended ATX Intel Motherboard
- Compatibility
- Chipset: Intel Z690
- Chipset Compatibility: Intel
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1200 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel 11th Generation Core i9
- Slot
- Number of M.2 Slots: 3 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 2
- Number Of Memory Slots: 4
- Connectivity
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Ports
- USB Ports: 1 x USB-A 3.0 (The number and type of USB ports the product has.)
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 14.96 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 12 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Memory
- Maximum Memory Supported: 128 gigabytes
- Memory Type Supported: DDR4
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: Up to 5333 MHz (OC) (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 5 (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 1 year
- Other
- UPC: 889523027547

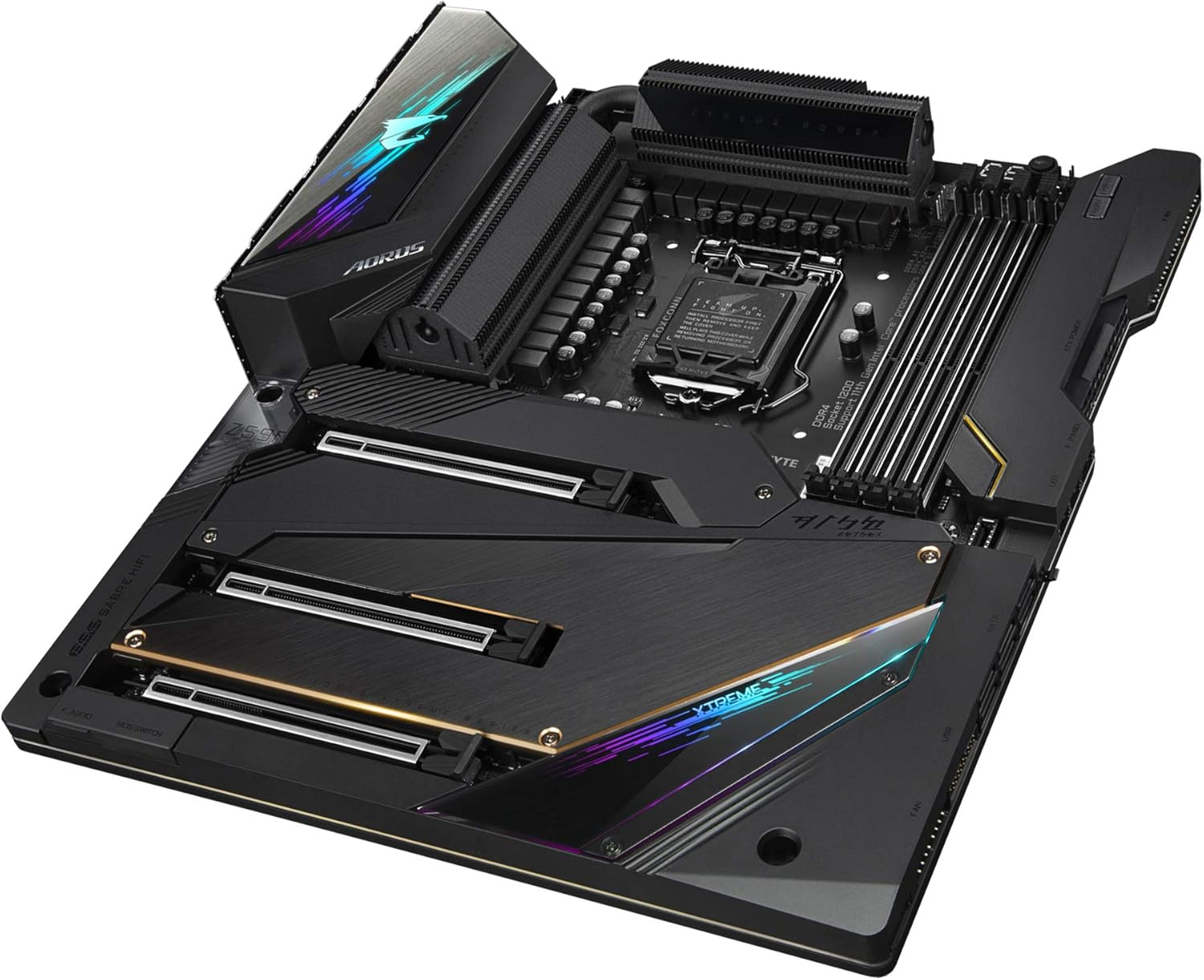

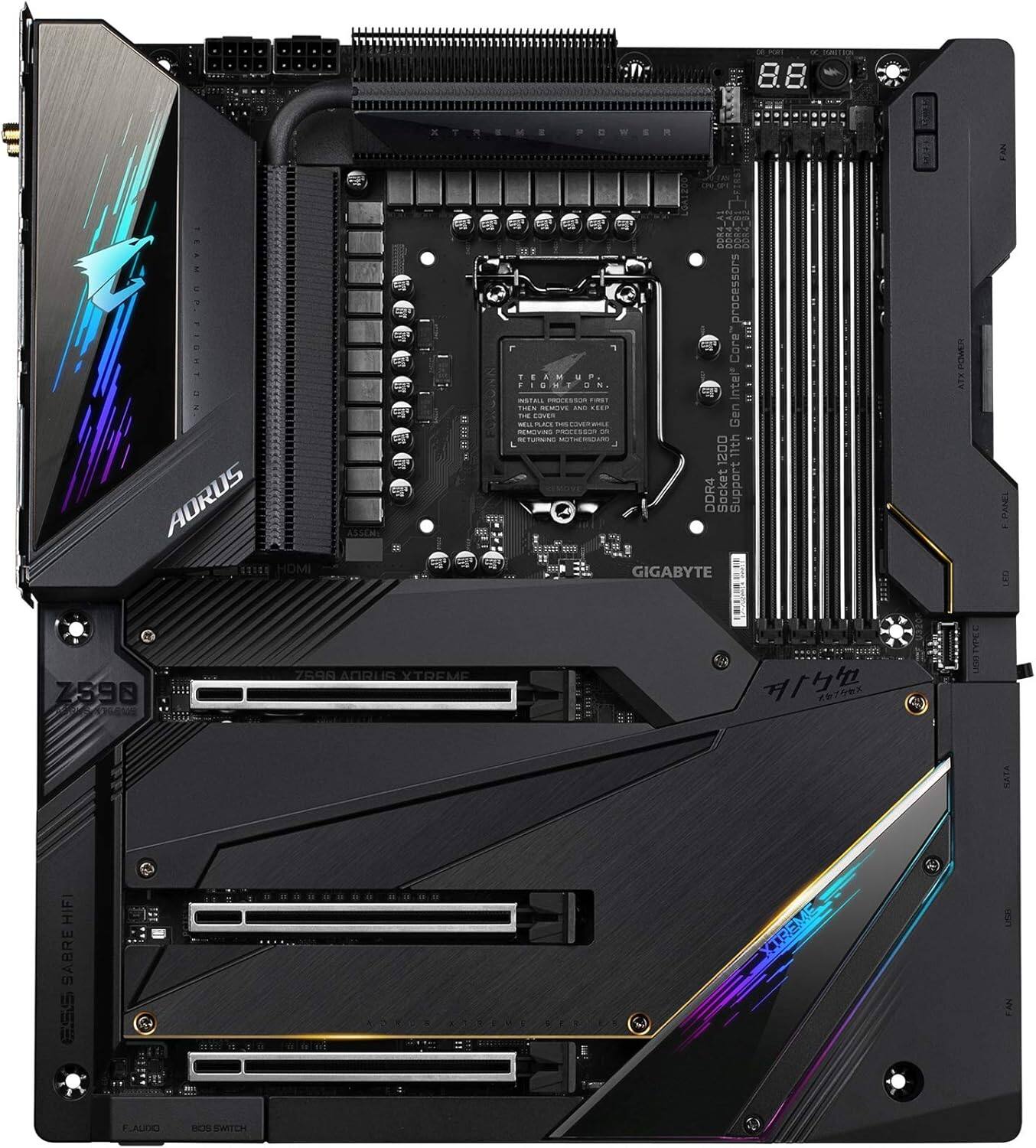

The Gigabyte Z590 AORUS XTREME is a flagship motherboard built for elite gamers and enthusiasts. Designed with cutting-edge thermal design, premium components, and superior connectivity, it delivers exceptional overclocking potential and blazing-fast data transfer speeds for Intel’s 11th Gen processors.
- Unmatched Power Design:: 20+1 phases digital VRM with 100A power stages for extreme CPU performance and stability.
- Advanced Thermal Solution:: Nanocarbon fins-array II heatsink, direct-touch heatpipe, and thermal armor ensure superior cooling efficiency.
- Next-Gen Connectivity:: Dual Thunderbolt 4 ports, WiFi 6E, 10GbE LAN, and triple M.2 slots with thermal guards for ultra-fast data speeds.
- Premium Audio & Aesthetics:: ESS SABRE Hi-Fi DAC, DTS:X Ultra, RGB Fusion 2.0, and an elegant black armor finish make it as beautiful as it is powerful.
- Unmatched Power Design:: 20+1 phases digital VRM with 100A power stages for extreme CPU performance and stability.
- Advanced Thermal Solution:: Nanocarbon fins-array II heatsink, direct-touch heatpipe, and thermal armor ensure superior cooling efficiency.
- Next-Gen Connectivity:: Dual Thunderbolt 4 ports, WiFi 6E, 10GbE LAN, and triple M.2 slots with thermal guards for ultra-fast data speeds.
- Premium Audio & Aesthetics:: ESS SABRE Hi-Fi DAC, DTS:X Ultra, RGB Fusion 2.0, and an elegant black armor finish make it as beautiful as it is powerful.
