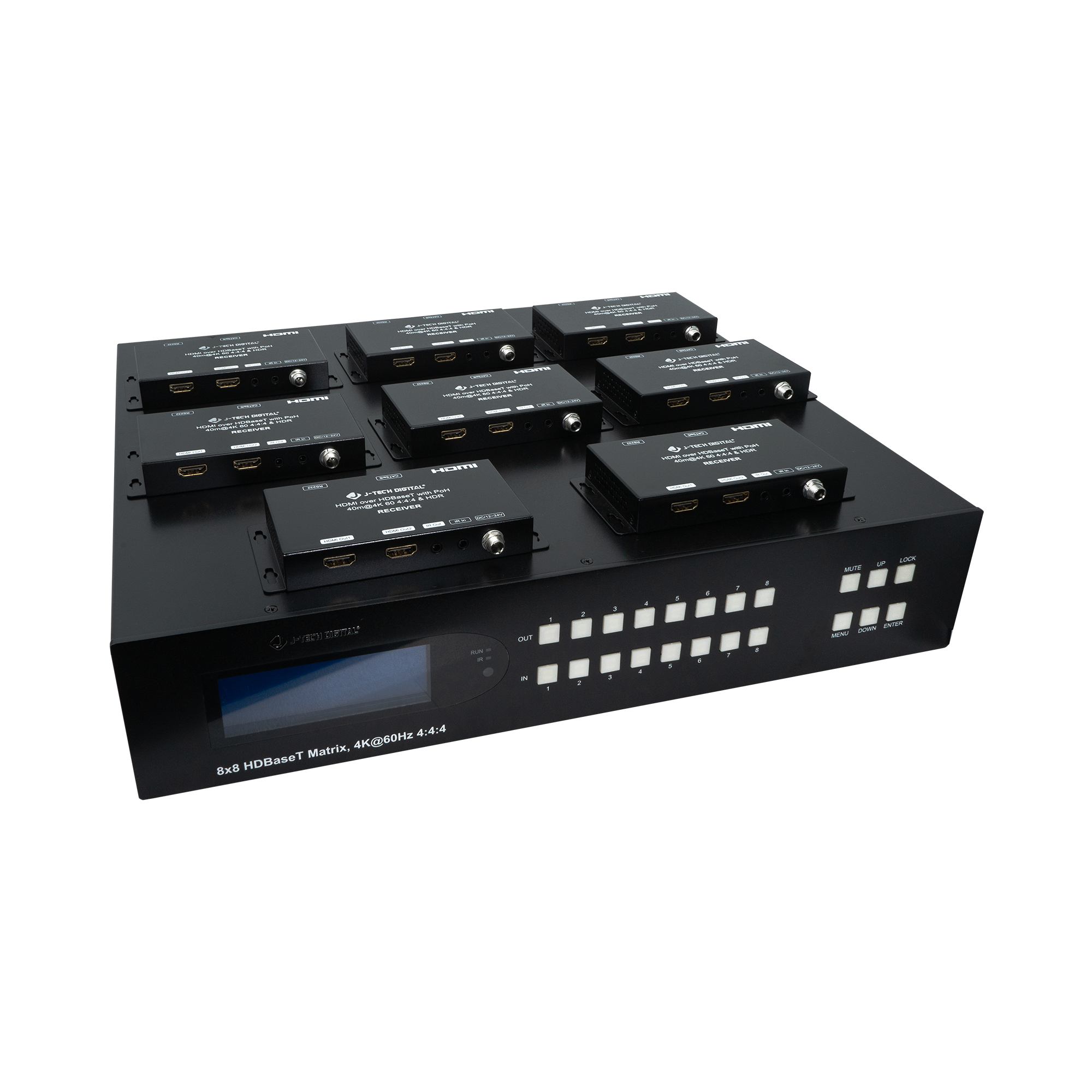

J-Tech Digital - 4K 60Hz 8x16 HDMI Matrix Extender with PoC (130ft) - Black
About This Item
- General
- Brand: J-Tech Digital
- Model Number: JTECH-MX443-UHD
- Product Name: J-Tech Digital 4K 60Hz 8x16 HDMI Matrix Extender with PoC (130ft)
- Color: Black
- Features
- Selector Switch Box Type: HDMI Switch
- Powered: true
- Maximum Supported Resolution (Video Passthrough): 2160p (4K) @ 60 Hz (The highest video resolution supported by the device for passing through video to another device.)
- Surround Sound Supported: Dolby Digital, Dolby Audio (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Connectivity
- Input(s): 8 x HDMI, 8 x IR
- Number of Inputs: 8
- Output(s): 8 x HDMI, 8 x IR
- Number of Outputs: 16
- Network Connector(s): 1 x LAN, 1 x RS-232
- Dimensions
- Product Height: 3.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17.1 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 15.6 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 850001567343
Connect up to 8 different HDMI input sources to the matrix and independently route your video feed to any of the HDMI outputs connected. Connect 8 HDMI displays locally via HDMI outputs and extend 8 HDMI displays via Cat5e/6 ethernet cable. (The ethernet outputs will mirror their corresponding HDMI output).
- 8 x HDMI In | 8 x HDMI Out + 8 x UTP Ports: Connect up to 8 different HDMI input sources to the matrix and independently route your video feed to any of the HDMI outputs connected. Connect 8 HDMI displays locally via HDMI outputs and extend 8 HDMI displays via Cat5e/6 ethernet cable. Note: (The ethernet outputs will mirror their corresponding HDMI output)

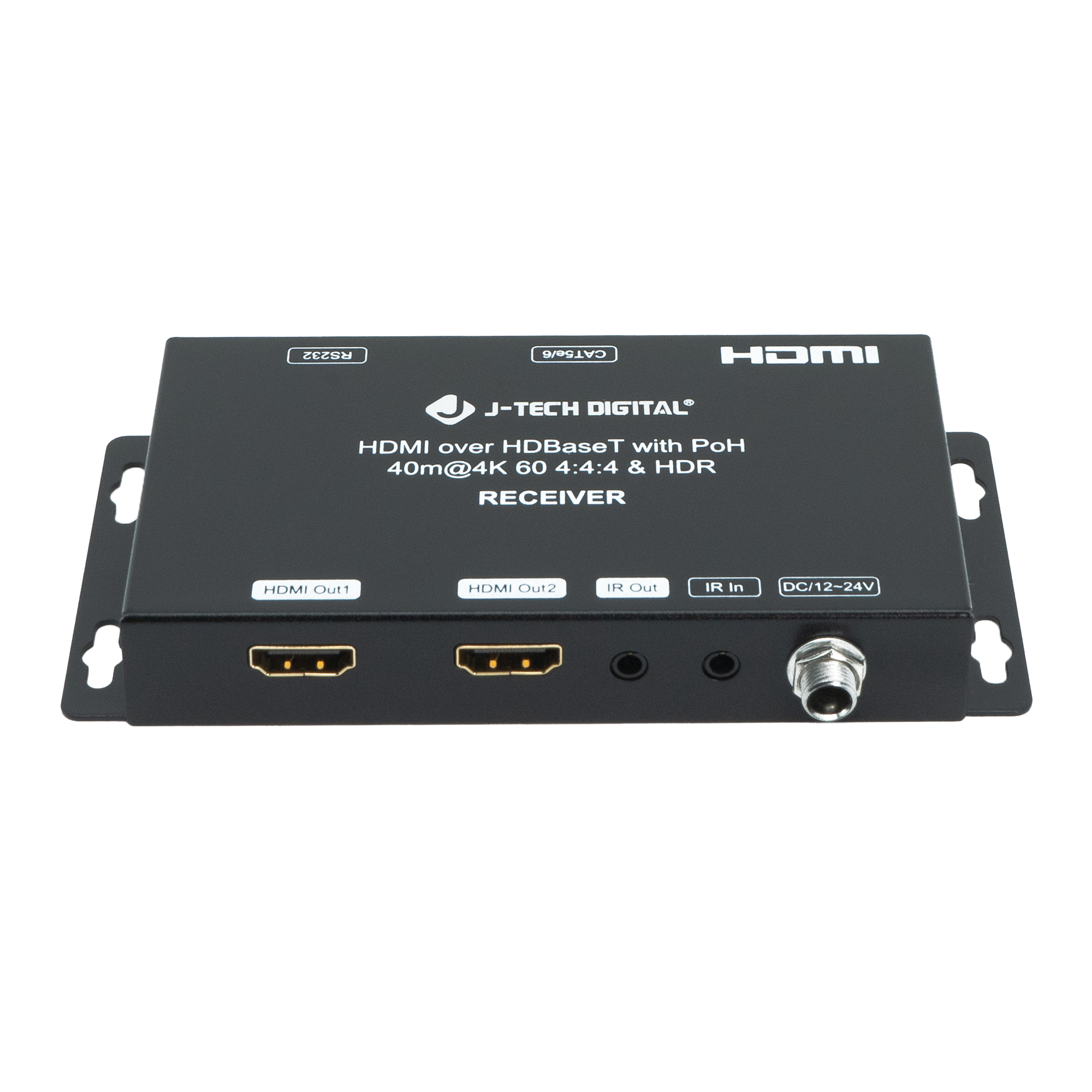

- 4K@60Hz Up To 130ft. | 1080P@60Hz Up To 230ft: Enjoy Ultra High Definition video with this HDMI matrix extender, which supports resolutions of up to 4K@60Hz (4:4:4), 1080p@60Hz and lower. Extend your 4K@60HZ resolution up to 130ft. and 1080p@60HZ resolutions up to 230ft. via the Cat5e/6 cables that mirror their corresponding HDMI output. Supports PoC: No need for power on the receiver side, receivers are powered by the HDMI matrix
- 8 x Digital & 8 x Analog Audio For Both Inputs / Outputs: 8 digital SPDIF inputs and 8 analog 3.5mm analog inputs for audio embedding. Also 8 digital SPDIF outputs and 8 analog 3.5mm outputs for extracting audio to a separate destination such as a soundbar, AV receiver, or surround sound system. Set your analog and digital inputs/outputs via the included PC software
- Various Control Methods: Control your source and display routing and EDID settings using the front panel buttons on the unit, with the included IR remote, via RS-232 or IP control via Web GUI. Copy the EDID settings of your HDMI displays or use the built-in EDID settings of the matrix for wide compatibility

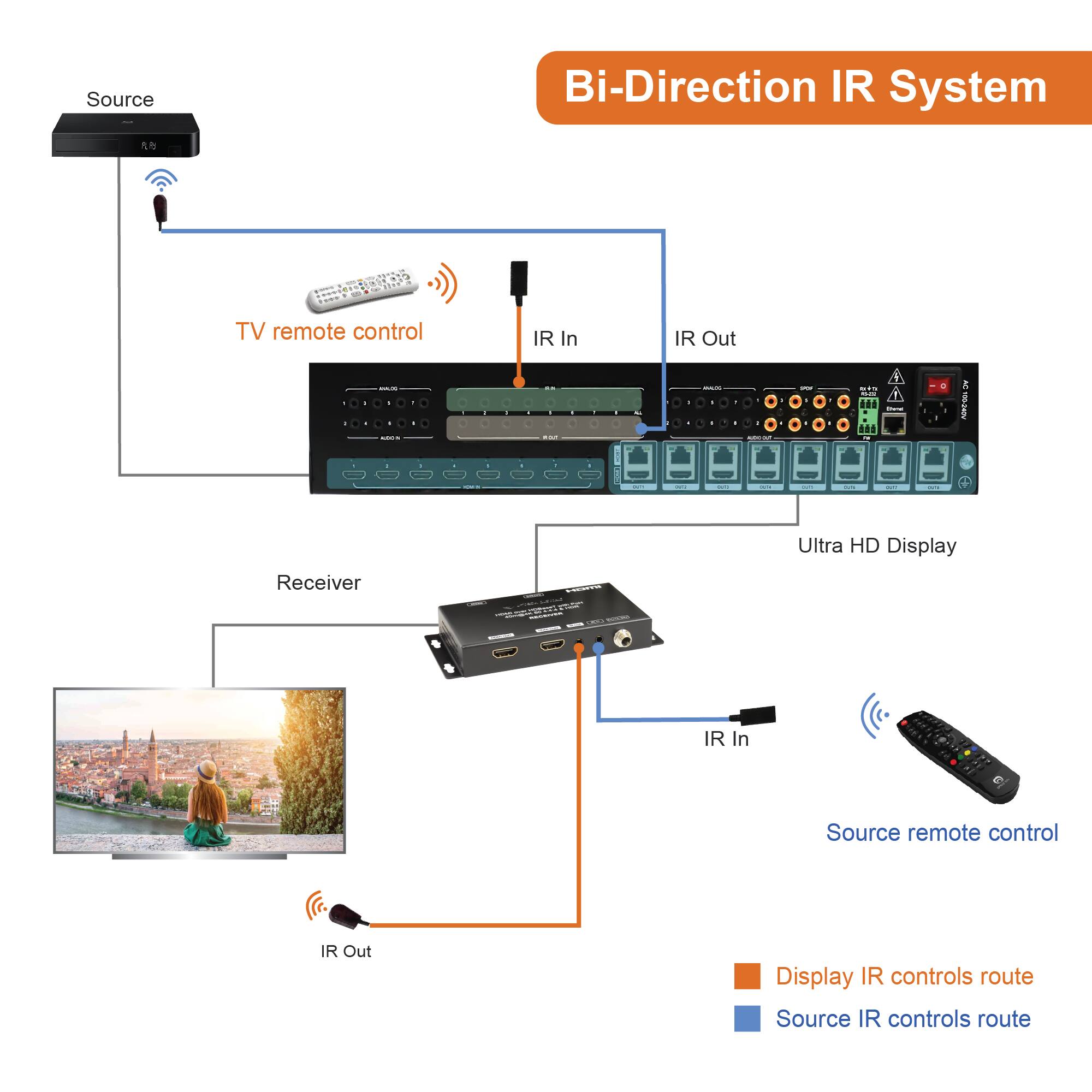

- Bi-Directional IR, EDID Copy: Utilize the dual IR feature to control your source device at the location of your display or control your display from the location of your source device
- 8 x HDMI In | 8 x HDMI Out + 8 x UTP Ports: Connect up to 8 different HDMI input sources to the matrix and independently route your video feed to any of the HDMI outputs connected. Connect 8 HDMI displays locally via HDMI outputs and extend 8 HDMI displays via Cat5e/6 ethernet cable. Note: (The ethernet outputs will mirror their corresponding HDMI output)
- 4K@60Hz Up To 130ft. | 1080P@60Hz Up To 230ft: Enjoy Ultra High Definition video with this HDMI matrix extender, which supports resolutions of up to 4K@60Hz (4:4:4), 1080p@60Hz and lower. Extend your 4K@60HZ resolution up to 130ft. and 1080p@60HZ resolutions up to 230ft. via the Cat5e/6 cables that mirror their corresponding HDMI output. Supports PoC: No need for power on the receiver side, receivers are powered by the HDMI matrix
- 8 x Digital & 8 x Analog Audio For Both Inputs / Outputs: 8 digital SPDIF inputs and 8 analog 3.5mm analog inputs for audio embedding. Also 8 digital SPDIF outputs and 8 analog 3.5mm outputs for extracting audio to a separate destination such as a soundbar, AV receiver, or surround sound system. Set your analog and digital inputs/outputs via the included PC software
- Various Control Methods: Control your source and display routing and EDID settings using the front panel buttons on the unit, with the included IR remote, via RS-232 or IP control via Web GUI. Copy the EDID settings of your HDMI displays or use the built-in EDID settings of the matrix for wide compatibility
- Bi-Directional IR, EDID Copy: Utilize the dual IR feature to control your source device at the location of your display or control your display from the location of your source device
Whats Included
- Matrix Extender, Receivers, User Manual, Remote Control, Serial Cable, Power Adapter
- Matrix Extender, Receivers, User Manual, Remote Control, Serial Cable, Power Adapter
