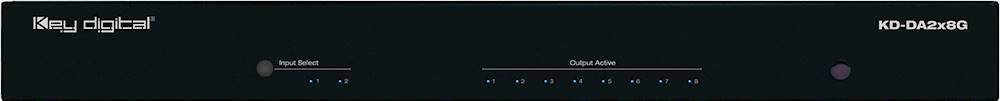

Key Digital - Distribution Amplifier/Switcher with Audio De-Embedding - Black
Model: KD-DA2X8G
SKU: 6412893
This item is no longer available in new condition. See similar items below
- General
- Brand: Key Digital
- Model Number: KD-DA2X8G
- Product Name: Distribution Amplifier/Switcher with Audio De-Embedding
- Color: Black
- Distribution Amplifier Type: Rack
- Features
- Indicator Lights: true
- Number Of Inputs: 2
- Number of Outputs: 8
- Connectivity
- Input(s): Ethernet, HDMI, RS 232
- Output(s): HDBaseT, RCA
- Compatibility
- Maximum Supported Resolution: 4096 x 2160 (4K)
- Surround Sound Supported: DTS-HD Master Audio, Dolby Atmos, Dolby Digital Plus, Dolby TrueHD (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Dimensions
- Product Height: 1.72 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17.3 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 5.25 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 815996020761
Increase your viewing options with this Key Digital eight-output HDMI distribution amplifier and switcher kit. The 4K Ultra HD image support facilitates immersive visuals, and compatibility with HDR formats ensures quality contrast. This Key Digital eight-output HDMI distribution amplifier supports audio de-embedding and requires no additional power supply due to its Power over HDBaseT technology.
- HDMI distribution amplifier and switcher: Provides distribution from two HDMI sources to eight HDBaseT outputs.
- Power over HDBaseT: Eight included Rx units are powered by the main unit.
- Ultra HD/4K support: Supports extension of resolutions up to UHD/4K up to 250' using a Cat-5e, Cat-6, Cat-6a, and Cat-7 cable. 1080p resolution may be extended up to 328'.
- Auto-sensing: Allows for automatic selection of a newly detected source and switching from newly disconnected source via hot-plug detection voltage when enabled.
- Audio de-embedder: The audio of the selected HDMI input is de-embedded at the coax digital (PCM) and analog L/R balanced/unbalanced connectors.
- Control pass-through: Includes eight three-pin Phoenix connectors for bidirectional IR or RS-232 for each HDBaseT output, eight IR sensors, and eight IR emitters.
- Full Buffer System: Manages TMDS re-clocking/signal re-generation, HDCP authentication to source and display, and EDID Control handshake.
- Control system support: Comes Key Digital app-, Key Digital Management Software Pro (KDMS Pro)-, and Compass Control Pro-ready. Fully controllable by most IR, RS-232, and TCP/IP supported control systems via open API.
- High dynamic range (HDR) format support: Provides HDR10 and Dolby Vision support for better media quality.
- Lossless compressed digital audio: Supports Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio, and Dolby Atmos for a perfect sound.
- HDMI distribution amplifier and switcher: Provides distribution from two HDMI sources to eight HDBaseT outputs.
- Power over HDBaseT: Eight included Rx units are powered by the main unit.
- Ultra HD/4K support: Supports extension of resolutions up to UHD/4K up to 250' using a Cat-5e, Cat-6, Cat-6a, and Cat-7 cable. 1080p resolution may be extended up to 328'.
- Auto-sensing: Allows for automatic selection of a newly detected source and switching from newly disconnected source via hot-plug detection voltage when enabled.
- Audio de-embedder: The audio of the selected HDMI input is de-embedded at the coax digital (PCM) and analog L/R balanced/unbalanced connectors.
- Control pass-through: Includes eight three-pin Phoenix connectors for bidirectional IR or RS-232 for each HDBaseT output, eight IR sensors, and eight IR emitters.
- Full Buffer System: Manages TMDS re-clocking/signal re-generation, HDCP authentication to source and display, and EDID Control handshake.
- Control system support: Comes Key Digital app-, Key Digital Management Software Pro (KDMS Pro)-, and Compass Control Pro-ready. Fully controllable by most IR, RS-232, and TCP/IP supported control systems via open API.
- High dynamic range (HDR) format support: Provides HDR10 and Dolby Vision support for better media quality.
- Lossless compressed digital audio: Supports Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio, and Dolby Atmos for a perfect sound.
Whats Included
- Key Digital Distribution Amplifier/Switcher with Audio De-Embedding
- Rack ears and screws
- 8 x IR sensors
- 8 x IR emitters
- 3-pin terminal blocks for IR/RS-232
- 6-pin terminal block for analog audio
- Remote control
- Power supply
- Owner's manual
- Key Digital Distribution Amplifier/Switcher with Audio De-Embedding
- Rack ears and screws
- 8 x IR sensors
- 8 x IR emitters
- 3-pin terminal blocks for IR/RS-232
- 6-pin terminal block for analog audio
- Remote control
- Power supply
- Owner's manual
