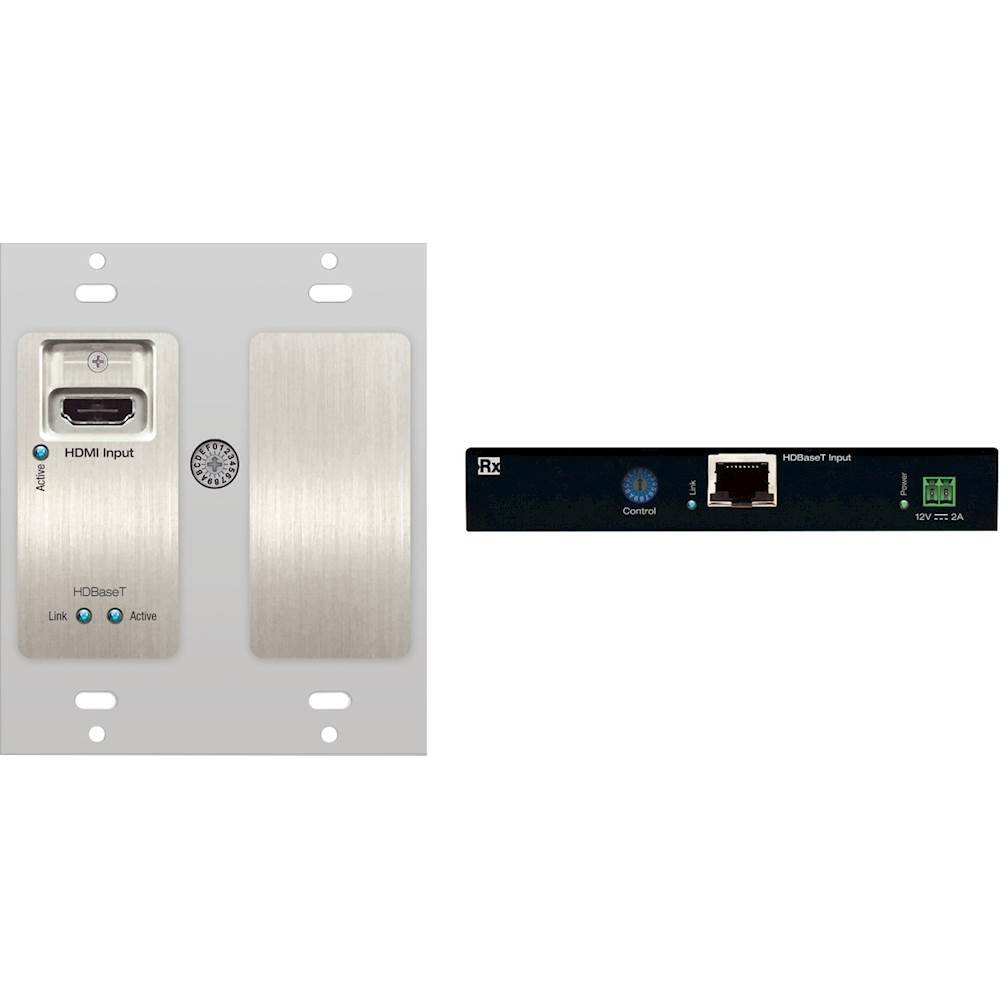

Key Digital - HDBaseT/HDMI Signal Extender Set - White
Model: KD-X422WP
SKU: 5879411
This item is no longer available in new condition. See similar items below
- General
- Brand: Key Digital
- Model Number: KD-X422WP
- Product Name: HDBaseT/HDMI Signal Extender Set
- Color: White
- Features
- Maximum Video Resolution: 2160p (Maximum resolution refers to the highest number of pixels that a screen can process and display. Higher resolution signals produce more detailed video.)
- Powered: true
- Connectivity
- Maximum Transmission Range: 250 feet
- Dimensions
- Product Height: 3.21 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 0.78 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 2.06 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Other
- UPC: 815996020013
Enable long-distance 4K and HDR content transmission with this Key Digital HDBaseT extender kit. Its Power over HDBaseT connectivity links the transmitter and receiver units with a single Cat5e/6 or UTP/STP cable and needs no power supply. This Key Digital HDBaseT extender kit includes a dual-gang transmitter wall plate with HDMI input for end-user convenience.
- HDBaseT/HDMI signal extender set: Ideal for professional video installations in conference rooms, huddle spaces, class rooms, and more.
- Power over HDBaseT via single CAT5e/6 UTP/STP extension: Extends signal with fully automatic adjustment of feedback, equalization, and amplification depending on cabling length.
- Extends 4K UHD signals up to 125': So you can enjoy optimal strength and coverage.
- HDMI and HDCP licensing: Fully licensed and compatible with HDCP 2.2 and HDMI latest technology such as 4K/UHD and 3D.
- EDID control: Internal library features 15 default EDID configurations and native EDID data from Output/Display devices connected via Rx.
- Designed for installation in standard USA dual-gang box: For easy and convenient installing.
- HDR10 (High Dynamic Range) compatible: More life-like images through a greater range of luminance levels.
- Fully controllable by all RS-232 supported control systems via open API: Including Compass Control®, AMX®, Crestron®, KNX®, RTI®, Savant, URC®, Leviton® etc.
- Hot plug detection control: Enables the integrator to choose if active signal voltage is forced to connected input devices.
- Extends IR and RS-232 signals: To control the remotely located equipment.
- Lossless compressed digital audio: Support for Dolby® TrueHD, Dolby® Digital Plus, Dolby Atmos®, and DTS-HD Master Audio™.
- HDBaseT/HDMI signal extender set: Ideal for professional video installations in conference rooms, huddle spaces, class rooms, and more.
- Power over HDBaseT via single CAT5e/6 UTP/STP extension: Extends signal with fully automatic adjustment of feedback, equalization, and amplification depending on cabling length.
- Extends 4K UHD signals up to 125': So you can enjoy optimal strength and coverage.
- HDMI and HDCP licensing: Fully licensed and compatible with HDCP 2.2 and HDMI latest technology such as 4K/UHD and 3D.
- EDID control: Internal library features 15 default EDID configurations and native EDID data from Output/Display devices connected via Rx.
- Designed for installation in standard USA dual-gang box: For easy and convenient installing.
- HDR10 (High Dynamic Range) compatible: More life-like images through a greater range of luminance levels.
- Fully controllable by all RS-232 supported control systems via open API: Including Compass Control®, AMX®, Crestron®, KNX®, RTI®, Savant, URC®, Leviton® etc.
- Hot plug detection control: Enables the integrator to choose if active signal voltage is forced to connected input devices.
- Extends IR and RS-232 signals: To control the remotely located equipment.
- Lossless compressed digital audio: Support for Dolby® TrueHD, Dolby® Digital Plus, Dolby Atmos®, and DTS-HD Master Audio™.
Whats Included
- Key Digital HDBaseT/HDMI Signal Extender Set
- Owner's manual
- Key Digital HDBaseT/HDMI Signal Extender Set
- Owner's manual
