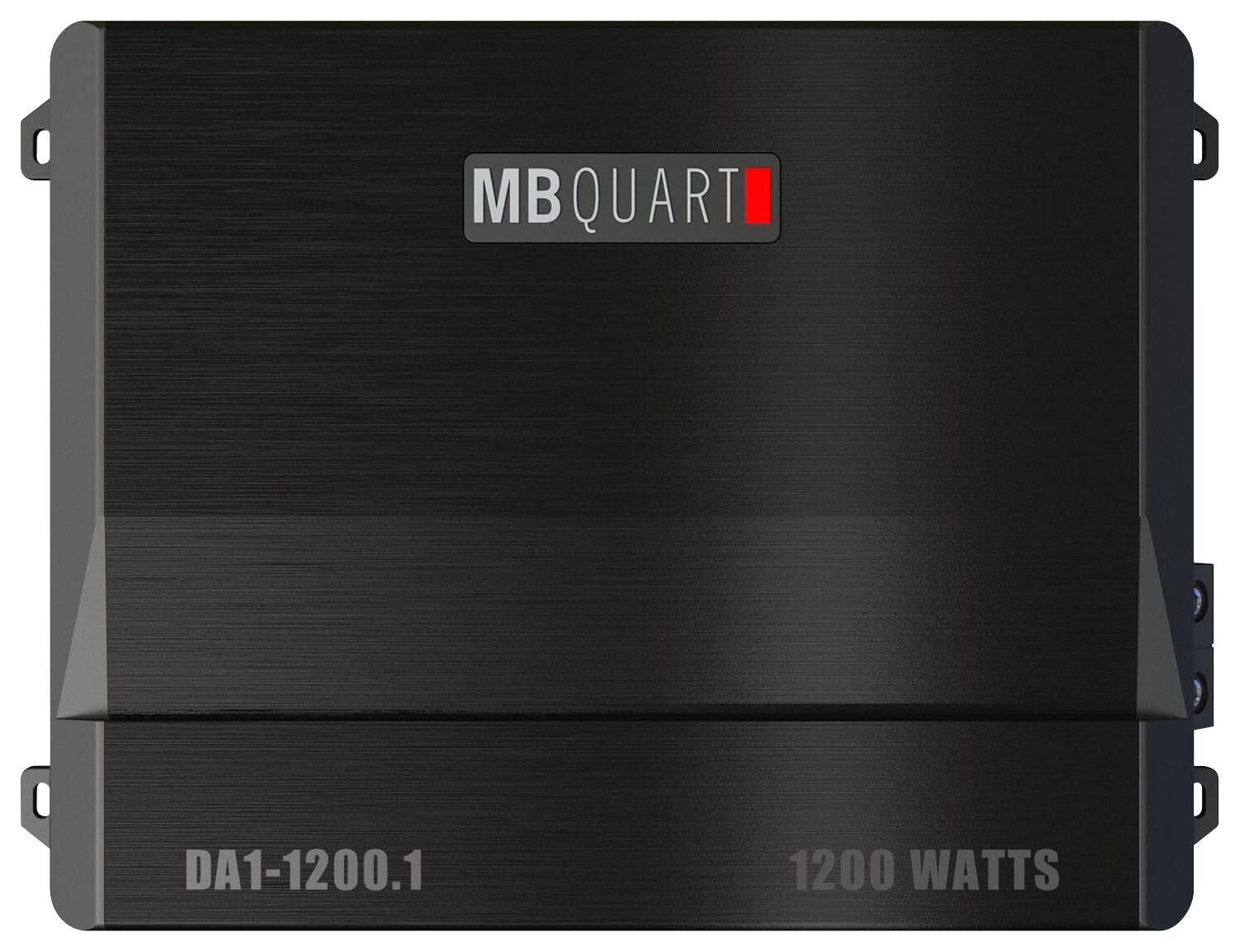

Name: MB Quart - Discus 1200W Class D Mono Amplifier - Black
Brand: MB Quart
SKU: 9076235
Rating: 0 (0 reviews)

Key Specs
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 1
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Low-Pass Crossover: Variable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- High-Pass Crossover: None (Devices with this function allow only audio frequencies above a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
General
- Brand: MB Quart
- Model Number: DA1-1200.1
- Product Name: Discus 1200W Class D Mono Amplifier
- Color: Black
- Mounting Hardware Included: false
Audio Power
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
Audio
- Number Of Channels: 1
- Minimum Frequency Response: 10 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 0.3 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Signal-to-Noise Ratio (SNR): 95 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
Features
- Low-Pass Crossover: Variable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- High-Pass Crossover: None (Devices with this function allow only audio frequencies above a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- MOSFET Power Supply: false (A specific type of power supply with the advantages of high switching speed and efficiency at low voltages.)
- Fan Cooled: false
Input
- Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
Dimensions
- Product Height: 9 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 12.2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 2.2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 8.2 pounds (The out of box weight of the item.)
Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
Compatibility
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
Other
- UPC: 806576223931

MB Quart Discus Amplifier: This powerful amplifier features 1200W output and bass boost, so you can enjoy rich, high-fidelity, low-end sound from your vehicle's subwoofer. Nickel-plated terminals and an aluminum heat sink ensure long-lasting durability.

Up to 1200W total power (1200W x 1 @ 1 ohm): To drive rich subwoofer performance. Up to 600W @ 2 ohms and up to 400W @ 4 ohms.
Low-pass crossover: Ensures flexible operation.
10Hz–300Hz frequency response: For faithful sound reproduction.
Nickel-plated brass terminals: With angled connection for secure wiring and installation.
3-stage protection circuits: Lighted indicators let you monitor thermal, overload, DC and speaker short protection.
Low-profile aluminum heat sink: Dissipates heat for safe operation.
Bass boost: Delivers deep, resonant bass. The wired bass remote lets you easily adjust the bass frequencies.
Q-Stasis pre-amplifier stage: Ensures the maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion.
