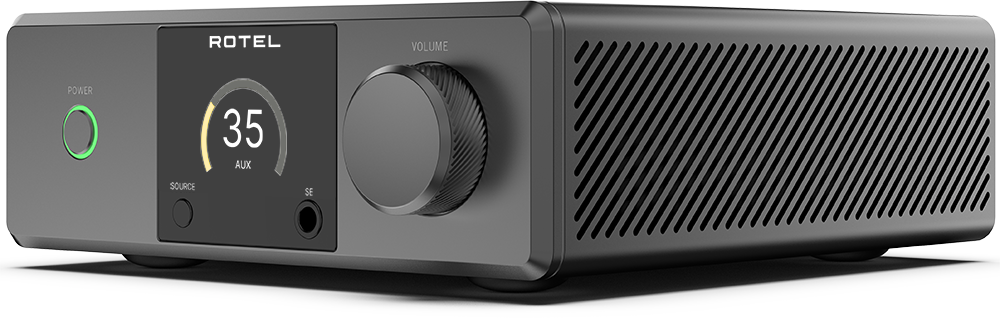

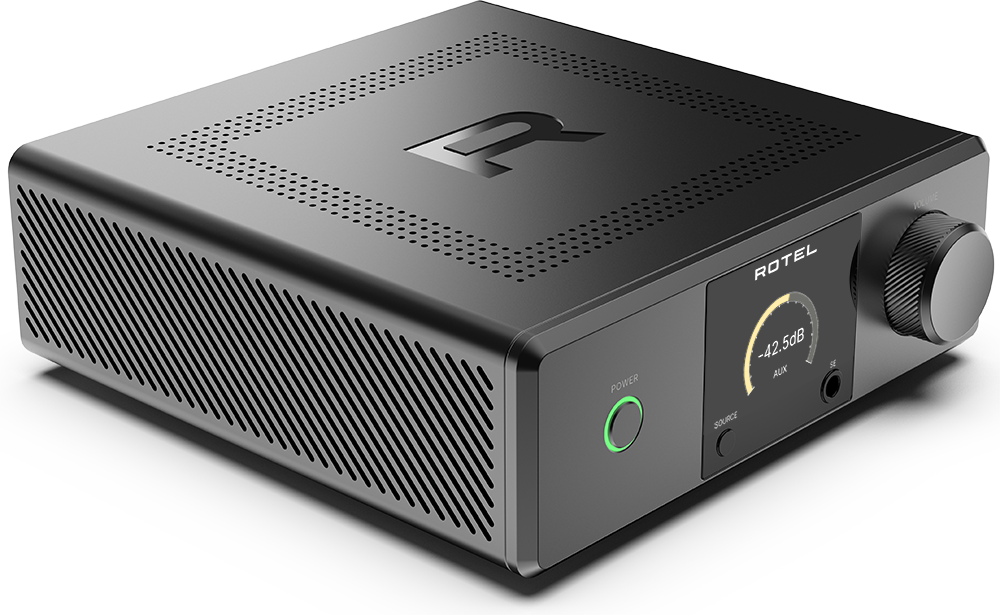

Rotel - DX-5 25W 2-Ch Integrated Amplifier - Black
Color
BlackMore Buying Options
Specifications
- Continuous Watts x Channel @ Ohms25 Watts x 2 @ 8 OhmsNumber of Channels2Number of Audio Zones1Audio Only InputsUnbalanced RCA, 1 x Optical digital audio, 1 x Coaxial digital audioNetwork Connector(s)No network connectorsPreamp OutputsNo
- Key Specs
- Continuous Watts x Channel @ Ohms: 25 Watts x 2 @ 8 Ohms
- Number of Channels: 2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Number of Audio Zones: 1 (Audio zones, typically designated by rooms in a home, are areas in which all speakers are dependent on the same sound source. Whether a zone encompasses one or multiple rooms, the receiver or preamp/processor is used to control all aspects of its audio and is able to select which zones receive sound.)
- Audio Only Inputs: Unbalanced RCA, 1 x Optical digital audio, 1 x Coaxial digital audio
- Network Connector(s): No network connectors
- Preamp Outputs: false
- General
- Brand: Rotel
- Model Number: DX-5 Black
- Product Name: DX-5 25W 2-Ch Integrated Amplifier
- Color: Black
- Audio
- Continuous Watts x Channel @ Ohms: 25 Watts x 2 @ 8 Ohms
- Maximum Watts x Channel @ Ohms: 33 Watts x 2 @ 4 Ohms (This is the maximum load the speaker, subwoofer or amp can drive.)
- Number of Channels: 2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Number of Audio Zones: 1 (Audio zones, typically designated by rooms in a home, are areas in which all speakers are dependent on the same sound source. Whether a zone encompasses one or multiple rooms, the receiver or preamp/processor is used to control all aspects of its audio and is able to select which zones receive sound.)
- Minimum Frequency Response: 10 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Total Harmonic Distortion: 0.03 percent (Measurement of the harmonic sound distortion. The lower the percentage, the cleaner the sound.)
- Maximum Frequency Response: 100 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Amplifier Class: AB (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Amplifier Type: Integrated amplifiers
- Signal-to-Noise Ratio (SNR): 100 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Inputs
- Audio Only Inputs: Unbalanced RCA, 1 x Optical digital audio, 1 x Coaxial digital audio
- Video Only Inputs: No video only inputs (The number and type of video signal only inputs the product has.)
- Network Connector(s): No network connectors
- Speaker-Level Inputs: false (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Outputs
- Preamp Outputs: false
- Speaker Connection Type: RCA
- Video Only Outputs: No video only outputs (The number and type of video signal only outputs the product has.)
- Dimensions
- Product Height: 3 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 10 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 9 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: 5 Years
- Other
- UPC: 672563295119

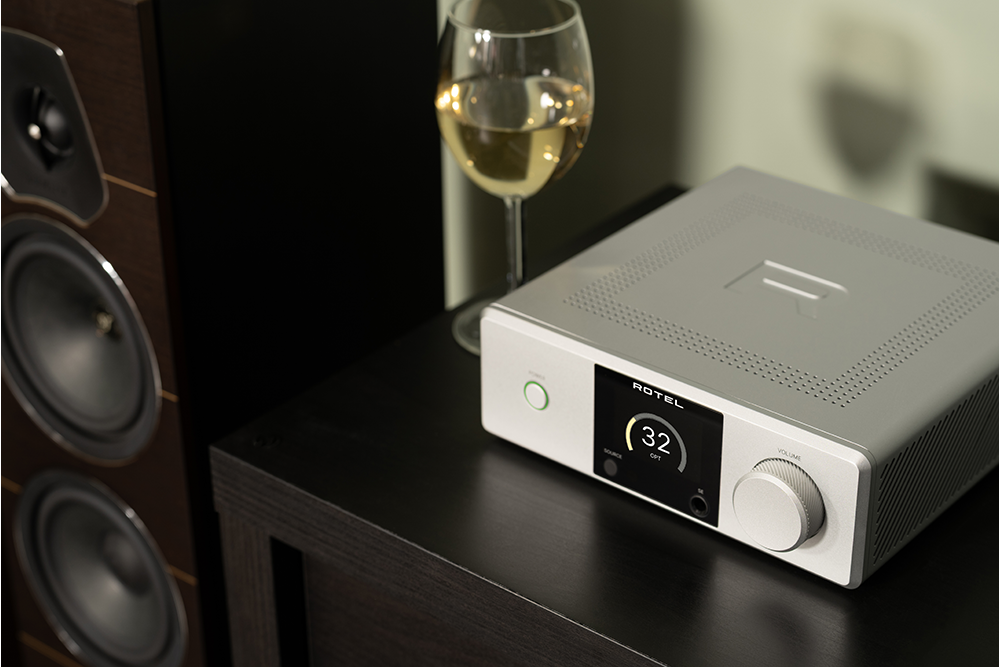

DX-5 Integrated Amplifier delivers 33 watts @ 4 ohms (25 watts @ 8 ohms) of classic Rotel Class AB amplification in an ultra size-efficient chassis.
- Class AB Amplification: Achieve powerful sound with Class AB amplification: 33W per channel at 4Ω and 25W per channel at 8Ω.
- Digital to Analog Conversion: The DX-5 is powered by the premium ESS Sabre ES9039Q2M 32-bit/ 768kHz 2-channel Stereo DAC, delivering state-of-the-art digital-to-analog conversion engineered for superior audio performance. Ultra-low noise and distortion renders audio with stunning clarity and depth on an immersive, high-resolution soundstage.

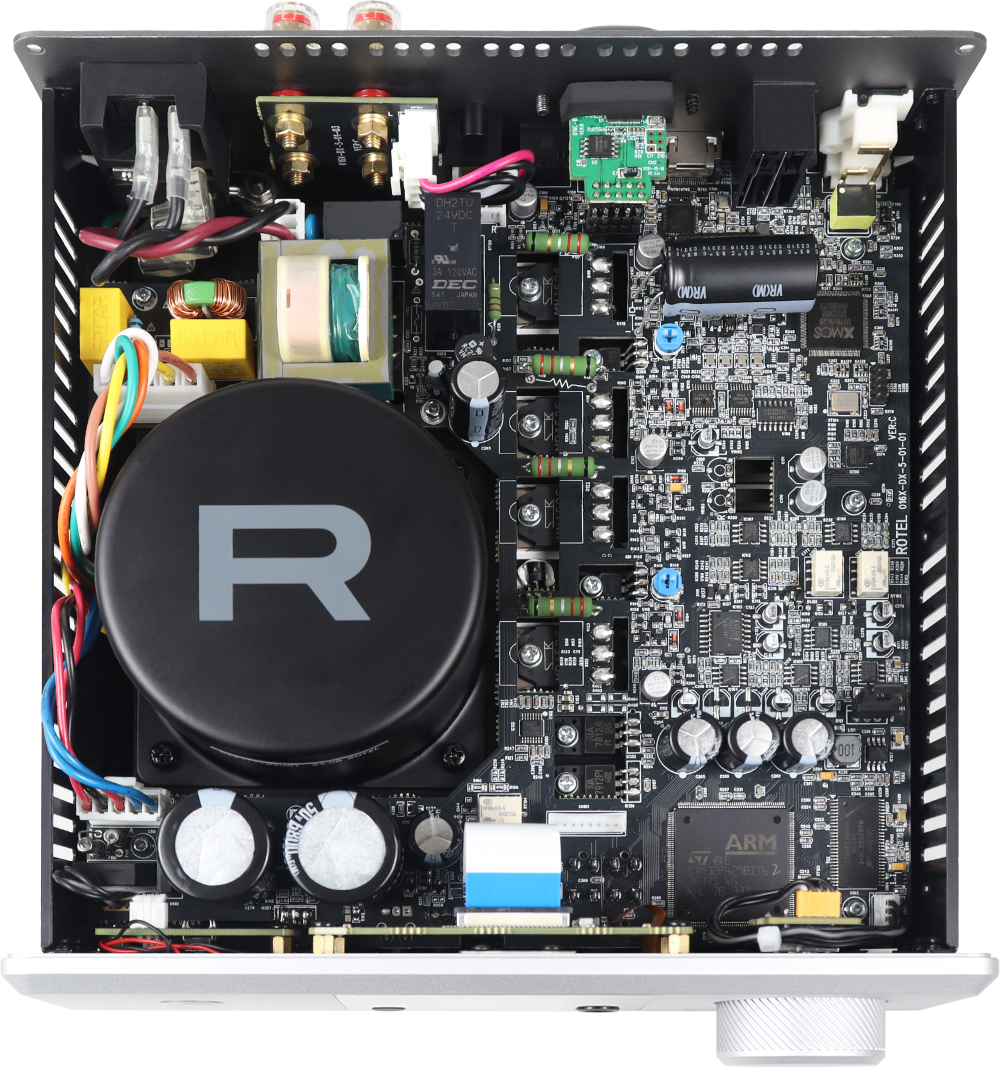

- Toroidal Transformers: Powered by a high-current Rotel in-house manufactured toroidal transformer delivering clean, stable, reliable power to the Class AB amplifier. The isolation of power supply feeds delivers optimal performance to the amplifier while minimizing unwanted noise to the critical low voltage circuits across all frequencies.

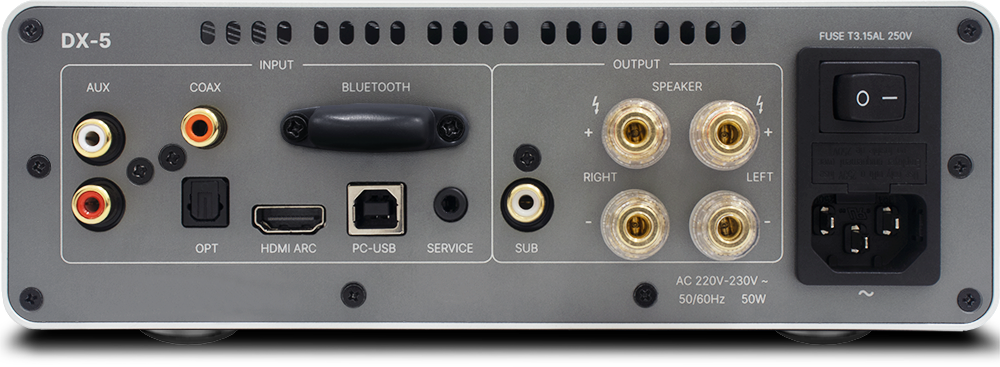

- Versatility: The Rotel DX-5 features HDMI ARC with CEC, Optical, Coaxial, RCA for legacy sources, PC-USB input (PCM 32-bit/384kHz, DSD 4X, Roon Tested) and AAC and aptX HD Bluetooth source inputs. Premium 5-way speaker binding posts and subwoofer output provide 2.0 and 2.1 installation options.
- Class AB Amplification: Achieve powerful sound with Class AB amplification: 33W per channel at 4Ω and 25W per channel at 8Ω.
- Digital to Analog Conversion: The DX-5 is powered by the premium ESS Sabre ES9039Q2M 32-bit/ 768kHz 2-channel Stereo DAC, delivering state-of-the-art digital-to-analog conversion engineered for superior audio performance. Ultra-low noise and distortion renders audio with stunning clarity and depth on an immersive, high-resolution soundstage.
- Toroidal Transformers: Powered by a high-current Rotel in-house manufactured toroidal transformer delivering clean, stable, reliable power to the Class AB amplifier. The isolation of power supply feeds delivers optimal performance to the amplifier while minimizing unwanted noise to the critical low voltage circuits across all frequencies.
- Versatility: The Rotel DX-5 features HDMI ARC with CEC, Optical, Coaxial, RCA for legacy sources, PC-USB input (PCM 32-bit/384kHz, DSD 4X, Roon Tested) and AAC and aptX HD Bluetooth source inputs. Premium 5-way speaker binding posts and subwoofer output provide 2.0 and 2.1 installation options.
Whats Included
- Rotel DX-5 Amplifier
- Power Cord
- Manual
- Remote
- Rotel DX-5 Amplifier
- Power Cord
- Manual
- Remote
