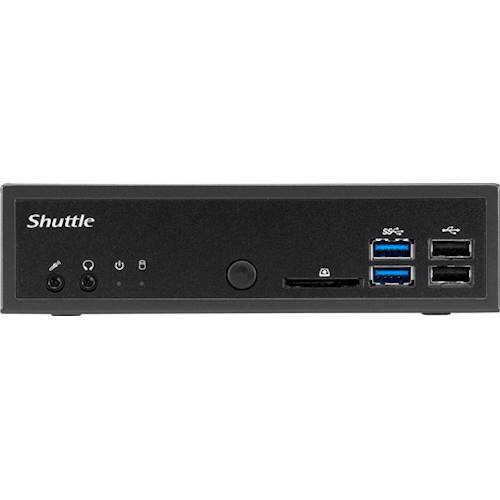

Name: Shuttle - XPC Slim DQ170 Barebone Desktop - Black
Brand: Shuttle
SKU: 6359716
Rating: 0 (0 reviews)

General
- Brand: Shuttle
- Model Number: DQ170
- Product Name: XPC Slim DQ170 Barebone Desktop
- Color: Black
Processor
- Processor Included: false (Indicates whether the product comes with a processor.)
- Processor Compatibility: Intel Celeron, Intel Pentium, Intel Core i3, Intel Core i5, Intel Core i7
Memory
- System Memory (RAM): 0 gigabytes (Random-access memory (RAM) is a computing device's short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the device can handle large amounts of information at one time. For example, gaming or video editing requires more RAM for optimal performance.)
- Type of Memory (RAM): DDR3L (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- System Memory RAM Speed: 1600 megahertz (How fast the information-storing hardware operates. The faster the RAM, the faster memory can be transferred to other system components. Ultimately, faster RAM improves operational efficiency.)
- Number Of Memory Slots: 2
- System Memory RAM Expandable To: 32 gigabytes (Adding more random-access memory (RAM) to a computer speeds up performance and improves efficiency. Upgrades to memory are limited by the number of expansion slots for additional RAM and existing RAM installed on the device.)
Graphics
- Graphics Processing Unit (GPU) Included: false (Indicates whether the product comes with a graphics processing unit (GPU)/graphics card.)
Compatibility
- Motherboard Form Factor: Proprietary (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
Connectivity
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Ethernet Card: 10/100/1000 (Also known as an Ethernet adapter, this card plugs into a computer's motherboard and enables it to access an Ethernet network. Ethernet data transmission speeds are measured in Mbps (megabits per second) and Gbps (gigabits per second). For example, a 10/100 Ethernet port transmits 10 and 100 Mbps, while a 10/100/1000 Ethernet port transmits 10 and 100 Mbps and has a maximum speed of 1000 Mbps (1 Gbps).)
- Number Of Ethernet Ports: 2
- Number of HDMI Outputs (Total): 1
- Number of USB Ports (Total): 8
- USB Ports: 4 x USB-A 2.0, 4 x USB-A 3.0 (The number and type of USB ports the product has.)
- Number Of DisplayPort Outputs: 2
Expansion
- Number of M.2 Slots: 1 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of Internal 2.5" Bays: 1
Features
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Enclosure Type: Other
Dimensions
- Product Height: 1.7 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 6.5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 7.5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 2.8 pounds (The out of box weight of the item.)
Included
- Optical Drive Type: None (An optical disk drive (ODD) uses a laser light to read data from or write data to an optical disc. These discs include CDs, DVDs, and Blu-ray Discs. This allows you to play music or watch movies using prerecorded discs.)
Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
Other
- UPC: 887993000879

Shuttle XPC Slim DQ170 Barebone Desktop: Develop a security-based device with this Shuttle slim barebone computer. The Q170 chipset powers high-performance Intel vPro processors and supports TPM 2.0, protecting confidential data, and Intel AMT compatibility enables remote control via LAN. This Shuttle slim barebone computer has two DDR3L RAM slots that hold up to 32GB for quick multitasking, while the SATA interface offers fast read-and-write speeds with a compatible SSD.

Intel 6th and 7th Gen processor support: The Intel Q170 chipset is compatible with Intel® Skylake and Kaby Lake Core® i3/i5/i7 series, Pentium, and Celeron® LGA 1151 processors with up to 65W TDP.*
Up to 32GB system memory: Each of two memory slots supports up to 16GB DDR3L 1600MHz RAM to smoothly run your graphics-heavy PC games and video-editing applications, as well as numerous programs and browser tabs at the same time.
M.2 expansion slot: This M.2 2260 BM slot supports M.2 SATA SSDs, M.2 PCI-e SSDs, and other M.2 cards with the width of 22mm and length of 30, 42, or 60mm (type 2230/2242/2260).
Compact design adds less bulk to your desk: The tower is less than 6.5" wide and 1.7" high, so it fits into smaller workspaces.
Built-in card reader for simple photo transfer: Supports SD, SDHC, SDXC memory card formats, and boot-up from SD cards.
Four USB 3.0 ports maximize the latest high-speed devices: Also includes four USB 2.0 ports to connect more accessories and peripherals. The USB 3.0 ports are backward compatible with USB 2.0 devices (at 2.0 speeds).
Wired network connectivity: Two built-in Gigabit Ethernet LAN ports plug into your wired network.
5.1-channel high-definition audio: Creates surround sound experience for your music, movies, streaming web content, and games. (Speakers sold separately.)
Multidisplay capability: Connect one monitor, or add a second monitor to double your viewing space for work and games. (Monitors sold separately.)
Additional ports: Microphone-in and headphone-out jacks. HDMI output for a high-definition monitor or HDTV. Two DisplayPorts.
Intel 6th and 7th Gen processor support: The Intel Q170 chipset is compatible with Intel® Skylake and Kaby Lake Core® i3/i5/i7 series, Pentium, and Celeron® LGA 1151 processors with up to 65W TDP.*
Up to 32GB system memory: Each of two memory slots supports up to 16GB DDR3L 1600MHz RAM to smoothly run your graphics-heavy PC games and video-editing applications, as well as numerous programs and browser tabs at the same time.
M.2 expansion slot: This M.2 2260 BM slot supports M.2 SATA SSDs, M.2 PCI-e SSDs, and other M.2 cards with the width of 22mm and length of 30, 42, or 60mm (type 2230/2242/2260).
Compact design adds less bulk to your desk: The tower is less than 6.5" wide and 1.7" high, so it fits into smaller workspaces.
Built-in card reader for simple photo transfer: Supports SD, SDHC, SDXC memory card formats, and boot-up from SD cards.
Four USB 3.0 ports maximize the latest high-speed devices: Also includes four USB 2.0 ports to connect more accessories and peripherals. The USB 3.0 ports are backward compatible with USB 2.0 devices (at 2.0 speeds).
Wired network connectivity: Two built-in Gigabit Ethernet LAN ports plug into your wired network.
5.1-channel high-definition audio: Creates surround sound experience for your music, movies, streaming web content, and games. (Speakers sold separately.)
Multidisplay capability: Connect one monitor, or add a second monitor to double your viewing space for work and games. (Monitors sold separately.)
Additional ports: Microphone-in and headphone-out jacks. HDMI output for a high-definition monitor or HDTV. Two DisplayPorts.
