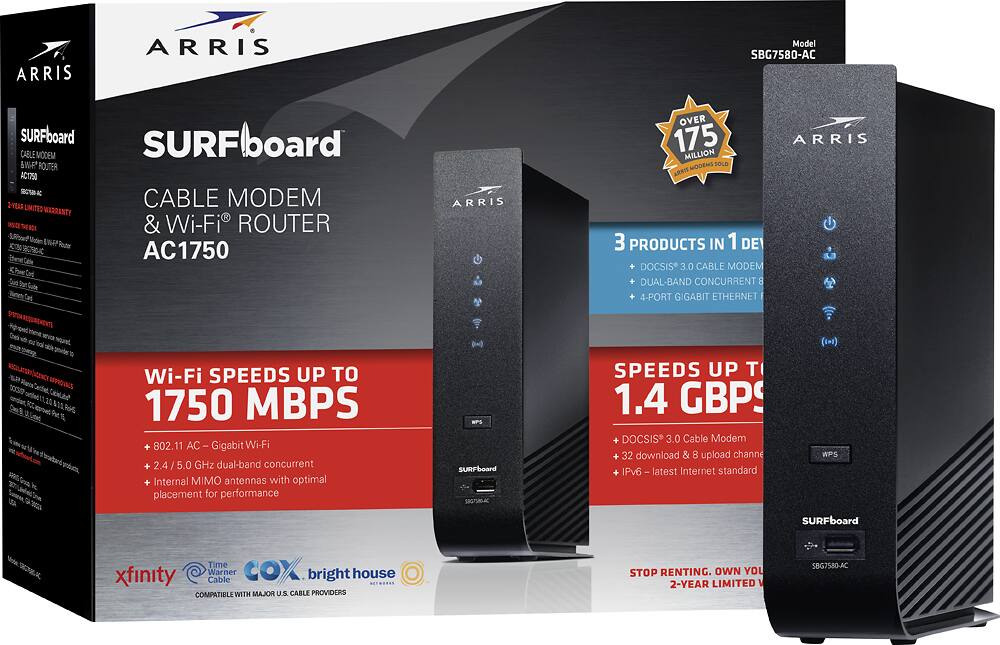

ARRIS - SURFboard Dual-Band Wireless-AC Router with DOCSIS 3.0 Cable Modem - Black
Model: SBG7580-AC
SKU: 5619204
This item is no longer available in new condition. See similar items below
- Key Specs
- Wi-Fi Mesh System: false (A single wireless network consisting of a main router (connected directly to a modem) that connects to a series of satellite modules or nodes placed around the home. Routers with this capability promote stronger, faster wireless signals as well as increase Wi-Fi coverage by reducing interference and eliminating dead zones.)
- DOCSIS Certification: 3.0 (DOCSIS (Data over Cable Service Interface Specification) is a telecommunications standard that allows high-bandwidth data transfer via a coaxial cable for internet access. Each version updates the previous standard and is backwards compatible with other versions.)
- Channel Bonding: 32 x 8 (The process of combining adjacent channels within a given frequency band to deliver faster broadband speeds. Channel bonding combinations are indicated as "downstream x upstream" e.g. 16x4 (16 channels dedicated for downloading data and 4 channels for uploading). The more channels, the more network traffic the device can support.)
- Number Of LAN Ports: 4 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- Wi-Fi Speed: 1750 megabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
- Downstream Data Speed: 1280 megabits per second (The maximum speed at which data is downloaded from the internet.)
- Upstream Data Speed: 240 megabits per second (The maximum speed at which data can be transferred from the client to the server, or the upload speed.)
- Internet Service Provider (ISP) Compatibility: Charter Communications, Cox Communications, XFINITY from Comcast (The internet service provider(s) that the device is able to work with and/or connect to with minimal setup.)
- General
- Product Name: SURFboard Dual-Band Wireless-AC Router with DOCSIS 3.0 Cable Modem
- Brand: ARRIS
- Model Number: SBG7580-AC
- Security
- Data Encryption: true
- Encryption Type: WPA, WPA2 (The security protocols or certification programs that protect the Wi-Fi network.)
- Firewall Type: NAT, Other (The method the firewall uses to filter and process data to increase network security, primarily by blocking malicious traffic requests while allowing legitimate traffic through.)
- Network
- Quality Of Service (QoS) Traffic Prioritization: true (Allows a user to manage a device's network performance by configuring the types of traffic that receive top priority for transmission. High priority functions and applications receive maximum network performance, while low priority traffic receives minimum performance.)
- Band Technology: Dual (Refers to the number of frequency bands used to wirelessly transmit an internet signal. For example, dual-band devices may use one 2.4 and one 5 GHz band, while tri-band devices may use one 2.4 and two 5 GHz bands. Multiple bands also provide more flexibility for designating connected devices to specific band use.)
- Ethernet Standard: 10/100/1000 (Each standard is a variation of the IEEE 802.3 set of computer networking technologies known as Ethernet. New versions evolved to include higher bandwidth, different physical media, and other new and improved features. Standards are often denoted by speeds (in Megabits per second). For example, a 10/100/1000 Ethernet port transmits at 10 Mbps, 100 Mbps, and 1000 Mbps (1 Gbps).)
- Number of Antennas: 3
- Frequency Band: 2.4 GHz, 5.0 GHz (Bands may be grouped into categories such as low- and high-band VHF (Very High Frequency), low- and high-band UHF (Ultra High Frequency), or certain frequency channels (measured in MHz or GHz). Generally, higher frequencies transmit information faster but have shorter range than lower frequencies.)
- Wireless Networking Standard: Wi-Fi 5 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: AC (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Number of 2.4Ghz Streams: 1 (A router's streams are like lanes on a highway. The more streams a router has, the less traffic congestion. Because the 2.4 GHz band is used to transmit wireless signals to a wide variety of devices, there is often high amounts of traffic on that stream. But with multiple streams, each can be designated to a specific device for optimal performance. For example, if one 2.4 GHz stream is assigned to one device, such as a desktop computer, it leaves the remaining streams open for guest users, devices that use more data, or devices with specific band compatibility.)
- Number of 5.0Ghz Streams: 1 (A router's streams are like lanes on a highway. The more streams a router has, the less traffic congestion. The 5.0 GHz band provides high speed, short-range data transmission and typically has less traffic than the 2.4 GHz band. With multiple streams, each can be designated to a specific device for optimal performance. For example, if one 5.0 GHz stream is assigned to one device, such as a streaming media player, it leaves the remaining streams open for guest users, devices that need less data, or devices with specific band compatibility.)
- Wi-Fi Mesh System: false (A single wireless network consisting of a main router (connected directly to a modem) that connects to a series of satellite modules or nodes placed around the home. Routers with this capability promote stronger, faster wireless signals as well as increase Wi-Fi coverage by reducing interference and eliminating dead zones.)
- Ethernet Switch: true (Connects multiple devices to expand the Local Area Network (LAN).)
- Certifications Listings & Approvals
- DOCSIS Compliant: true
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- DOCSIS Certification: 3.0 (DOCSIS (Data over Cable Service Interface Specification) is a telecommunications standard that allows high-bandwidth data transfer via a coaxial cable for internet access. Each version updates the previous standard and is backwards compatible with other versions.)
- Features
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Beamforming: true (A signal processing technique that enables a router to focus a Wi-Fi signal in a specific direction. The router determines where a connected device in the network is located and projects a stronger signal in that specific direction. This can result in faster and higher quality data transfer as well as reduced signal interference.)
- Integrated Modem: true
- Auto Connect: true
- Auto Detecting: true
- Wireless: true
- Channel Bonding: 32 x 8 (The process of combining adjacent channels within a given frequency band to deliver faster broadband speeds. Channel bonding combinations are indicated as "downstream x upstream" e.g. 16x4 (16 channels dedicated for downloading data and 4 channels for uploading). The more channels, the more network traffic the device can support.)
- Ports
- Number Of WAN Ports: 0 (Number of devices able to be connected to the Wide Area Network (WAN). This type of port may simply be labeled "Internet," and it allows the device to share its internet connection with all devices connected to it via LAN ports.)
- Port Type(s): Co-Axial, RJ-45 (USB 2.0 connects external drives, gaming controllers, smartphones, MP3 players and other accessories.USB 3.0 transfers data faster than USB 2.0, but only when used with USB 3.0 devices.USB Type-C provides fast speeds and versatile power, featuring connectors with identical ends that plug in upside down or right side up. Adapters allow for video as well as backward compatibility.Thunderbolt provides ultra-high bandwidth for fast data transfer between devices featuring a Thunderbolt or MiniDisplayPort connection.HDMI allows you to connect a projector or display HD media on your HDTV or monitor.Media card slots allow you to transfer photos from your digital camera or camcorder.)
- Number Of LAN Ports: 4 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- Speed
- Wired Speed: 1000 megabits per second (The maximum rate at which data is transferred between a network device and router using an Ethernet cable.)
- Wi-Fi Speed: 1750 megabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
- Gigabit Ethernet Speed: true (Supports the gigabit Ethernet networking standard, which has a data rate of at least one gigabit per second, or 1,000 Mbps.)
- Downstream Data Speed: 1280 megabits per second (The maximum speed at which data is downloaded from the internet.)
- Upstream Data Speed: 240 megabits per second (The maximum speed at which data can be transferred from the client to the server, or the upload speed.)
- Compatibility
- Bluetooth Enabled: false (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Internet Service Provider (ISP) Compatibility: Charter Communications, Cox Communications, XFINITY from Comcast (The internet service provider(s) that the device is able to work with and/or connect to with minimal setup.)
- Dimensions
- Product Height: 9.25 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 2.25 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 7.5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 1.4 pounds (The out of box weight of the item.)
- Warranty
- Manufacturer's Warranty - Parts: 2 years
- Manufacturer's Warranty - Labor: 2 years
- Other
- UPC: 612572213230
Connect your whole house to the Internet with this powerful ARRIS SURFboard cable modem. This device also functions as a Wi-Fi router and supports speeds up to 1750 Mbps, making it ideal for multi-device home networks. Replace your rented unit with this ARRIS SURFboard cable modem to save on monthly fees and upgrade your web experience.
- Wireless-AC technology: Offers rapid Wi-Fi speeds and coverage, so you can easily connect more than 10 devices to your network.
- Speeds up to 1750Mbps: For 4K streaming use, etc. 6 antennas boost signal strength for reliable operation.
- DOCSIS 3.0 cable modem: Features 32 x 8 channel bonding for download speeds up to 1280Mbps, so you can avoid rental fees from your cable and Internet service provider. Intel Atom® 1.2GHz processor for rapid streaming and gameplay.
- Compatible major U.S. cable providers: Including XFINITY by Comcast, Cox, Charter and many others.
Whats Included
- ARRIS SURFboard Dual-Band Wireless-AC Router with DOCSIS 3.0 Cable Modem
- Ethernet cable
- Owner's manual
- Power cord
- Software license and warranty card
- Support Information card
Q: Will this work with time warner spectrum?
A: Totally!
A: I think it may be a discontinued item. It's only in stores that say you can pick it up in 1 hour and not in a warehouse. It's been my experience that any item listed as pick up in 1 hour is on the shelf of that particular store. I bought the same modem and that's how it was listed at the store I bought it from.
Q: Is this compatible with Xfinity Triple Play?
A: No. Doesn't Have a phone port
Q: Does this modem have a phone hook up also
A: Not to plug directly in the router but you can use one of the Ethernet connection to plug in to the Vonage phone adapter then plug in the power connection and the phone line to the Vonage adapter..
