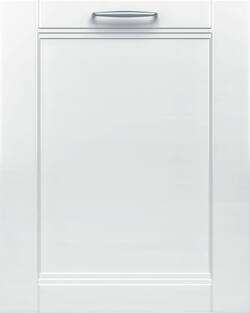

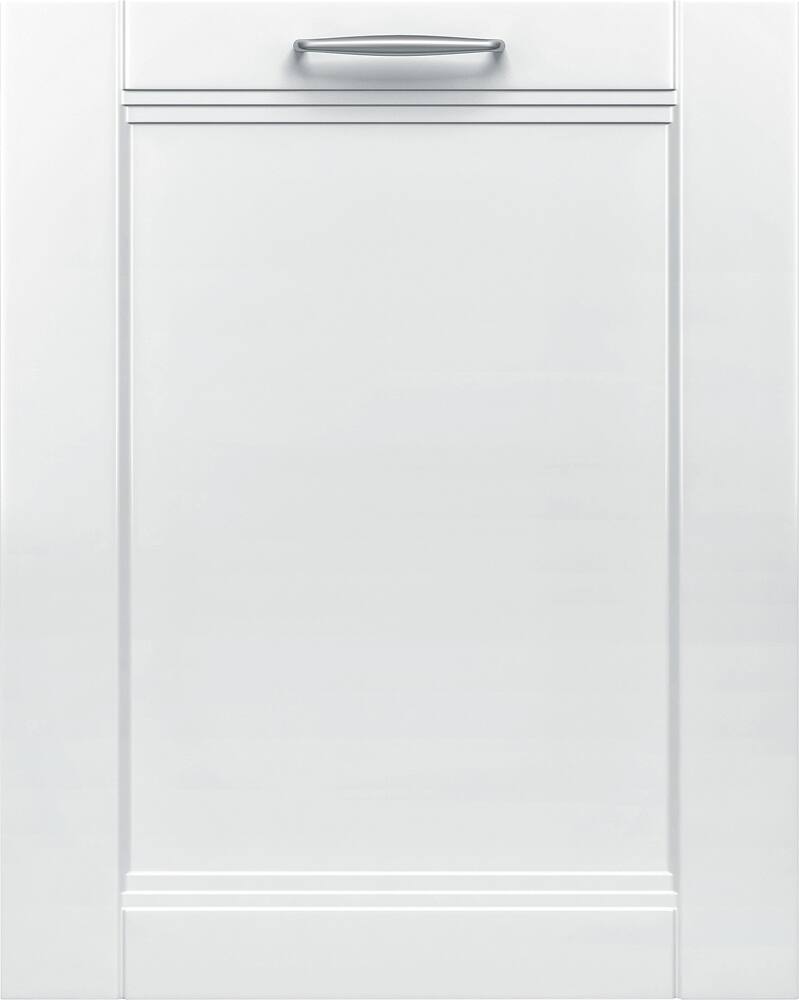

Bosch - 800 Series 24" Tall Tub Built-In Dishwasher with Stainless Steel Tub
Model: SGV68U53UC
SKU: 9273112
This item is no longer available in new condition. See similar items below
- Key Specs
- Product Height: 32 1/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 9/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 5/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Operating Sound Level: 44 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Number Of Racks: 3
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Place Setting Capacity: 15 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- Color Finish: Custom
- General
- Product Name: 800 Series 24" Tall Tub Built-In Dishwasher with Stainless Steel Tub
- Brand: Bosch
- Model Number: SGV68U53UC
- Vendor Collection: Bosch 800 Series (Part of a line of different product types, like kitchen appliances.)
- Color Finish: Custom
- Dimensions
- Product Height: 32 1/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 9/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 5/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 87 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 32 1/8 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 24 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Hard Food Disposer: false (This feature has blades to chop and disintegrate hard food particles, making them small enough to easily drain away. This prevents them from being recirculated back onto dishware and allows for easy maintenance.)
- Operating Sound Level: 44 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Delay Start: true (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
- End-Of-Cycle Signal: true (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
- Cycle Status Lights: true (Lights on the control panel that indicate which cycle is in use and/or its current status. Know when to unload with a simple glance.)
- Child Lock: false (Setting that allows appliance to be temporarily locked to prevent use.)
- Filtered Water: true (Internal water filter(s) remove minerals and chemicals from hard water before the wash cycle. Filtered water is less likely to leave mineral deposits or stains, meaning your dishware will look cleaner for longer.)
- Water Soil Sensor: true (Feature that measures how dirty the water is throughout the wash cycle and adjusts the energy and water usage as needed. This can increase washing efficiency and may reduce energy costs.)
- Cycle Specifications
- Number of Cycles: 6 (Standard dishwashers have at least 3 cycles, each with different water pressure, speed, and temperature settings designed for particular loads.)
- Sensor Wash: true (Feature that automatically senses the load's soil levels and adjusts the wash cycle as needed. This often results in reduced water usage, which in turn may reduce energy costs.)
- Steam Cleaning: false (Wash cycle that primarily uses steam to loosen food debris and clean fragile dishware without force.)
- Steam Pre-Wash: false (Loosens food debris by creating steam inside the washer before the primary wash cycle, allowing for an easier, gentler clean of dishware.)
- NSF-Certified Sanitization Cycle: false (Meets the National Sanitation Foundation (NSF) standards for performance and cleaning effectiveness. When operated on the sanitizing cycle, an NSF-Certified dishwasher reaches a final rinse temperature of 150⁰ Fahrenheit and achieves a minimum 99.999% percent reduction of bacteria.)
- Water Consumption Per Cycle: 3 gallons (Estimated amount of water used during a standard wash cycle. Most standard-size dishwashers today use an average of 3-6 gallons.)
- Rack Features
- Number Of Racks: 3
- Third Rack Features: Utensil separator (Aspects of third rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Upper Rack Features: Adjustable height, Adjustable tines, Cup shelf, Glide rail, Stemware holders, Utility basket (Aspects of upper rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, cup clips, and stemware holders.)
- Lower Rack Features: Silverware basket (Aspects of lower rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Rack Material: Nylon
- Design
- Dishwasher Type: Built-in dishwashers
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Control Location: Top control
- Place Setting Capacity: 15 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Integrated Water-Softener: true (A built-in water softener that automatically filters minerals from hard water to clean your dishes, reducing clouding, streaks, hard-water stains, or mineral deposit build-up.)
- Electrical Specification
- Estimated Annual Electricity Use: 259 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 31 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Amperage: 12 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Wattage: 1300 watts (Measurement of electrical power.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Consortium for Energy Efficiency (CEE) Rating: CEE Tier 1
- Other
- UPC: 825225912262
Bosch 800 Series built-in dishwasher: Talk quietly with friends and family while this dishwasher is running thanks to the quiet, 44 dBA operation. InfoLight shines on the floor while a cycle is running for simple monitoring, and delay-start lets you begin cycles whenever you are ready.
- Simple setting navigation: Hidden electronic controls offer easy adjustments.
- Converse with family uninterrupted or run a cycle while others are sleeping: 44dBA operation ensures a quiet design.
- Accommodates a variety of dishware with ease: Foldable tines, a bottom rack silverware basket and 3 racks with RackMatic adjustment system provide space for silverware, pots and pans and more.
- Thorough and efficient cleaning: High-temperature wash and 3 wash arms offer effective washing.
- Ensures dishes are ready to be put away after a cycle: Condensation drying works efficiently and hygienically.
- Prevent clogged drains: 3 filters work together to keep food away from the pump.
- Clean pots, pans and more: 6 wash cycles, including heavy, express, auto, normal and a rinse-only cycle, provide flexibility. Eco cycle helps conserve energy.
Whats Included
- 800 Series 24" Tall Tub Built-In Dishwasher with Stainless Steel Tub
- Power cord
- Fill and drain hoses
- Owner's manual
Documents
- Energy_Guide_PDF
A: Hi Nancy. Thank you for your question. In order to compare the new Model:SGV68U53UC panel sizing and your current Bosch panel dimensions, please reach out to our Customer Support Team for help. They can be reached at 1-800-944-2904.
Q: Where is this model manufactured?
A: Hi Matt. Thank you for your question. The 800 Series Dishwasher is manufactured in New Bern, North Carolina.
Q: Hi, Does this dishwasher have the new Crystal Dry mechanism?
A: I bought mine last summer and it does not. I wish I would have waited for a model with that feature. Not sure about 2020 models but you definitely want that feature!
A: Hi Kat. Thank you for your question. The Bosch 500 Series has the Auto Air option that opens the dishwasher door automatically when the interior of the dishwasher cools to 118 degrees F. The models that have that feature are SHPM65Z55N and SHXM65Z55N. We do not have that model available with a Custom Panel Ready door.
A: It is a standard size dish washer inside. The 3rd rack is very narrow and used for utensils. It has great capacity in the other 2 racks and the very top shallow rack can be removed. I use it daily for utensils, large knives, spatulas, etc.
Q: Which 24' dishwashers are panel ready and ADA compliant?
A: Hi Janie. Thank you for your question. The model number for the 24 inch panel ready, ADA compliant Dishwasher is SGV68U53UC.
Q: My contractor needs the exactly specification of the door so we can oder the panel ,
A: Hi there. Thank you for your question. Here are the Custom Panel Requirements: Do not exceed 30 1/8” (765mm) for the overall front panel length Needs to be at least 3/4” thick Minimum weight is 9 lbs. and maximum weight is 18 lbs. For further information, please contact our Customer Support Team at 1-800-944-2904.
