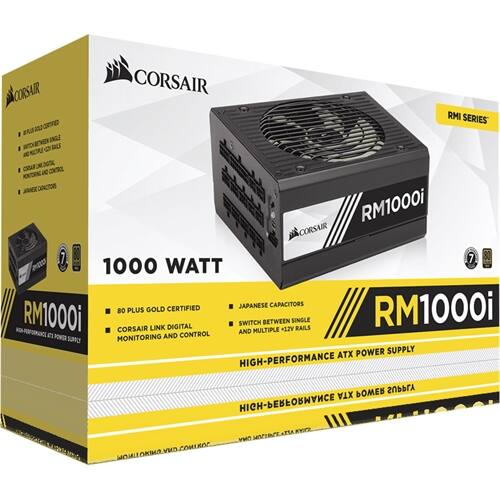

Name: CORSAIR - RMi Series 1000W ATX 80 Plus Gold Fully Modular Power Supply - Black
Brand: CORSAIR
SKU: 4895534
Rating: 5 (2 reviews)

Key Specs
- Wattage: 1000 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- ATX Connector: true (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 8 (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 12 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Product Length: 179.83 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
General
- Product Name: RMi Series 1000W ATX 80 Plus Gold Fully Modular Power Supply
- Brand: CORSAIR
- Model Number: CP-9020084-NA
- Color: Black
Power
- Wattage: 1000 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- Specification Compliance: ATX12V 2.4/ EPS12V 2.92
- Overload Protection: true (Features intended to protect the product from damage and overheating caused by overload.)
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
Connectivity
- ATX Connector: true (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- Floppy Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a floppy disk drive.)
- PCIe Connector: 8 (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 12 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
Dimensions
- Product Height: 85.85 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 149.86 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 179.83 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 4.47 ounces (The out of box weight of the item.)
Cooling
- Cooling Fan Type: Other
Other
- UPC: 843591045766

Build your computer with confidence by using this CORSAIR PC power supply. Built using Japanese capacitors, the 80 PLUS Gold certification ensures your computer operates with reduced heat and minimal sound. CORSAIR's unique design also allows desktop control of the fan speed. Bring power to your PC with this CORSAIR PC power supply.

1000W power supply: Features 850W of output power with 24-pin ATX, two 4+4-pin EPS12V, eight 6+2-pin PCI Express, 10 Serial ATA, 2 floppy and 11 peripheral connectors. 4th Gen Intel Core processor-ready (Intel Haswell and Z87 motherboards).
ATX 12V v2.4 and EPS 2.92 compliant: Backward compatible with ATX 12V 2.2, 2.31 and ATX 12V 2.01 systems.
ATX 12V compliance: Meets industry standards.
Quite cooling: 135mm thermally controlled fluid dynamic bearing fan spins up as needed.
Zero RPM fan mode: Helps eliminate the need for the fan to spin while under low- to medium-size loads.
80PLUS Gold certified: To ensure maximum energy efficiency and minimal heat production.
Configurable +12V rail: It's your choice – run it in the default multi-rail +12V mode, or toggle single-rail operation.
Modular Design: Fully modular cables for easy installation, less clutter, and helps maximize airflow through your computer's chassis.
