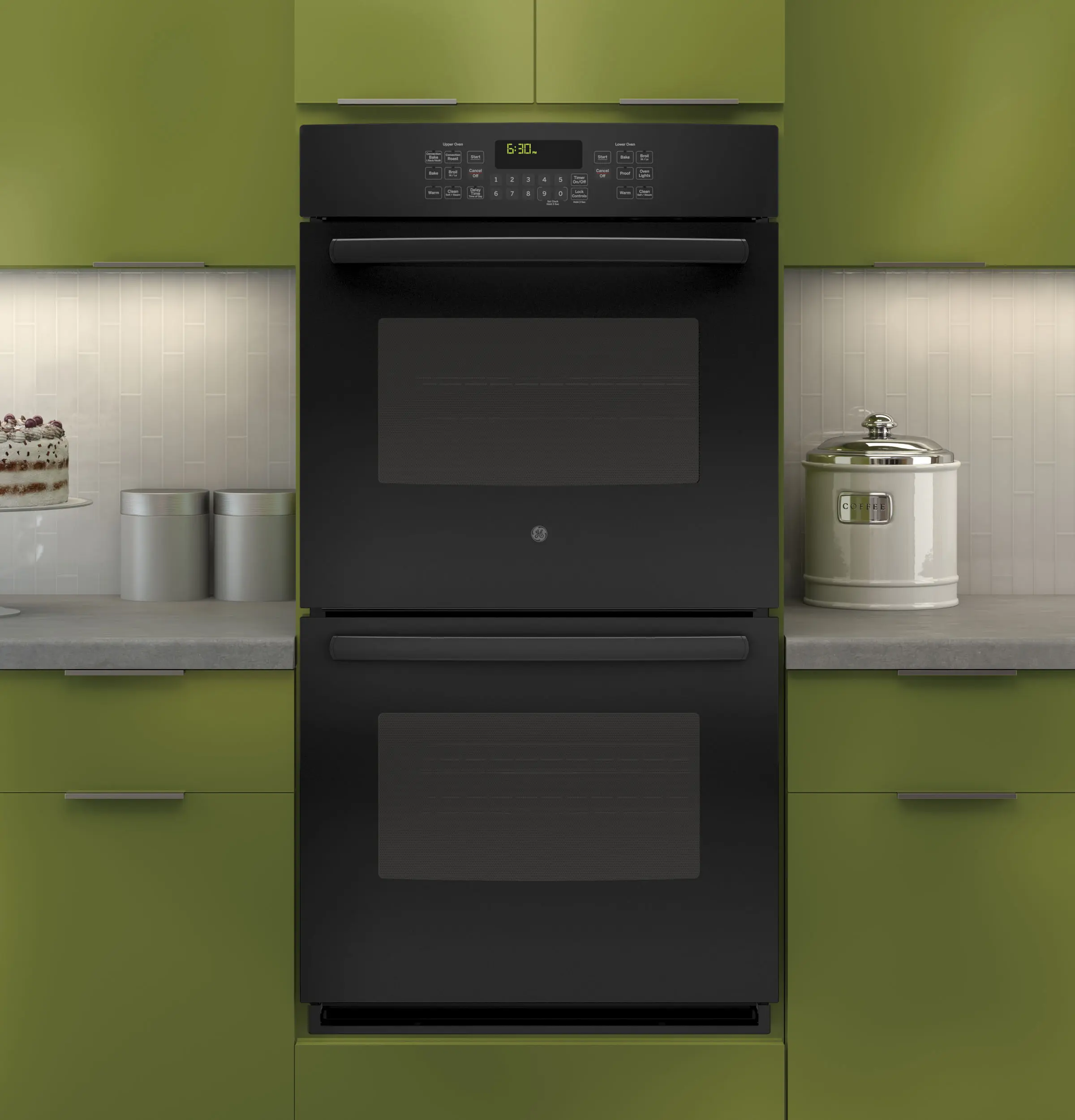

GE - 27" Built-In Double Electric Convection Wall Oven
- Key Specs
- Product Height: 51.13 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 26.75 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 26.63 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Oven 1 Convection: false (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Color Finish: Black
- General
- Product Name: 27" Built-In Double Electric Convection Wall Oven
- Brand: GE
- Model Number: JK5500DFBB
- Color Finish: Black
- Dimensions
- Product Height: 51.13 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 26.75 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 26.63 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 27 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 215 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 49.69 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 25 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 23.5 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Oven 1 Capacity: 4.3 cubic feet
- Oven 2 Capacity: 4.3 cubic feet
- Features
- Oven Type: Double wall oven
- Oven Power Source: Electric
- Auto Shut-Off: false (Feature automatically turns off the product.)
- Clock Display: true
- Oven Light: true
- Functions
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Hidden Bake Element: true (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Time Bake: true (Allows you to program the appliance to run at a pre-determined time and automatically turn off when baking time is finished. Plan for mealtime or entertaining by setting your oven to start baking at a convenient time and reduce the worry of overcooking your food with the automatic shut off feature.)
- Rapid Preheat: false
- Dehydration Settings: false (This function sets the oven at a low temperature, typically under 200 degrees Fahrenheit, for an extended period of time. During this time, warm air circulates throughout the oven to draw moisture out of foods.)
- Oven 1 Specification
- Oven 1 Location: Upper
- Oven 1 Interior Height: 17.25 inches
- Oven 1 Interior Width: 21.5 inches
- Oven 1 Interior Depth: 20 inches
- Oven 1 Convection: false (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 1 Convection Type: Convection (Convection adds a fan system to the two heating elements for continuous air motion and efficient cooking. True convection adds a third heating element to the fan system, for even more uniform heating.)
- Oven 1 Window: true
- Oven 1 Cleaning Method: Self-High Heat Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 1 Rack Positions: 6
- Number of Oven 1 Racks: 3
- Oven 1 Bake Element: 2600 watts
- Oven 1 Broil Element: 3400 watts
- Oven 2 Specification
- Oven 2 Location: Lower
- Oven 2 Interior Height: 17.25 inches
- Oven 2 Interior Width: 21.5 inches
- Oven 2 Interior Depth: 20 inches
- Oven 2 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Convection Type: True Convection (Convection adds a fan system to the two heating elements for continuous air motion and efficient cooking. True convection adds a third heating element to the fan system, for even more uniform heating.)
- Oven 2 Window: true
- Oven 2 Cleaning Method: Self-High Heat Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 2 Rack Positions: 6
- Number of Oven 2 Racks: 2
- Oven 2 Bake Element: 2600 watts
- Oven 2 Broil Element: 3400 watts
- Electrical Specification
- Wattage: 2600 watts (Measurement of electrical power.)
- Amperage At 208 Volts: true
- Amperage At 240 Volts: true
- Kilowatt Rating At 208 Volts: true
- Kilowatt Rating At 240 Volts: true
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Other
- UPC: 084691249672
Cook an entire meal for your family with this 27" GE JK5500DFBB double electric wall oven that features a True European Convection upper-oven system for delicious, fast results and a 4.3 cu. ft. capacity in each oven to accommodate multiple dishes.
- Fit Guarantee: Replacing a similar wall oven from GE or another brand? GE wall ovens are guaranteed for an exact fit to make replacement easy. See offer criteria and details
- True European Convection (upper oven): Achieve delicious results from a third heating element and fan combination
- Self-clean with Steam Clean option (both ovens): Clean your oven the way you want
- Self-clean, heavy-duty oven racks: Conveniently clean your oven and racks together
- Glass touch controls: Set temperatures quickly and clean with little effort
- Halogen oven lighting: Easily see how your food is baking
- Ten-pass bake element: Even baking is assured with heat that covers more surface area
- Eight-pass broil element: Get full broil coverage and even browning from edge to edge
- Double oven 8.6 cu. ft. total oven capacity (4.3 cu. ft. both ovens): Large meals are easy with capacity that fits more at one time
- Black gloss oven interior: Enjoy a clean and sleek appearance
- Hidden bake oven interior: Make cleanup easy by eliminating hard-to-reach areas
Whats Included
- GE 27" Built-In Double Electric Convection Wall Oven
- Owner's manual
A: Best Buy just came to our house, measured, and have agreed to contract someone to do the modification prior to installing.. They are handleing it all.
Q: DO YOU CHARGE TO COME OUT AND MEASURE FOR A DOUBLE OVEN , COOK TOP, AND HOOD ???
A: Consulted directly with GE pertaining to specifications, and then measured ourselves. No outside assistance was received.
Q: Does this oven include a broiler pan?
A: Hello, Thank you for reaching out. We're happy to answer your question. This oven does not come with a broiler pan included. It must be purchased separately. You can order it by visiting our parts store. The part number for the broiler pan is WB48X10056. We hope this helps. Best wishes. Mike@GEA
A: Hi there, Based on the diagram on pg. 3 of your installation instructions, we are finding that the minimum cutout depth is 23 1/2". With that in mind, if you only have a depth of 22" you may run into some trouble in fitting your wall oven into the space. If you have more questions about dimensions or installation, take a look at pg. 3 section 2C for a diagram as well as a table with more information. Here is a copy of your installation instructions for you: https://products.geappliances.com/MarketingObjectRetrieval/Dispatcher?RequestType=PDF&Name=31-11109-1.pdf - We hope that this helped! Thank you so much for your question. -Michael
A: Hello KaMan - Thank you for being part of the GE Appliances family. Preheat takes approximately 10-20 minutes depending on model. your oven does feature a "Hidden Bake" element in both ovens meaning the elements are covered. This makes cleaning the interior of the oven a breeze but can add to preheat times. Enjoy your oven! - John
Q: Can the convection oven feature be turned on and off??
A: Yes, it can. There is a bake button or convection button on the top oven to choose from. the bottom oven is the regular oven.
Q: Does this oven have a time bake feature and a delay start feature?
A: Yes, this model does have that feature.
Q: I am having an electrician put in a plug. Does the cable on the oven have 3 or 4 prongs ?
A: My oven didnt have a plug it is hard wired.
