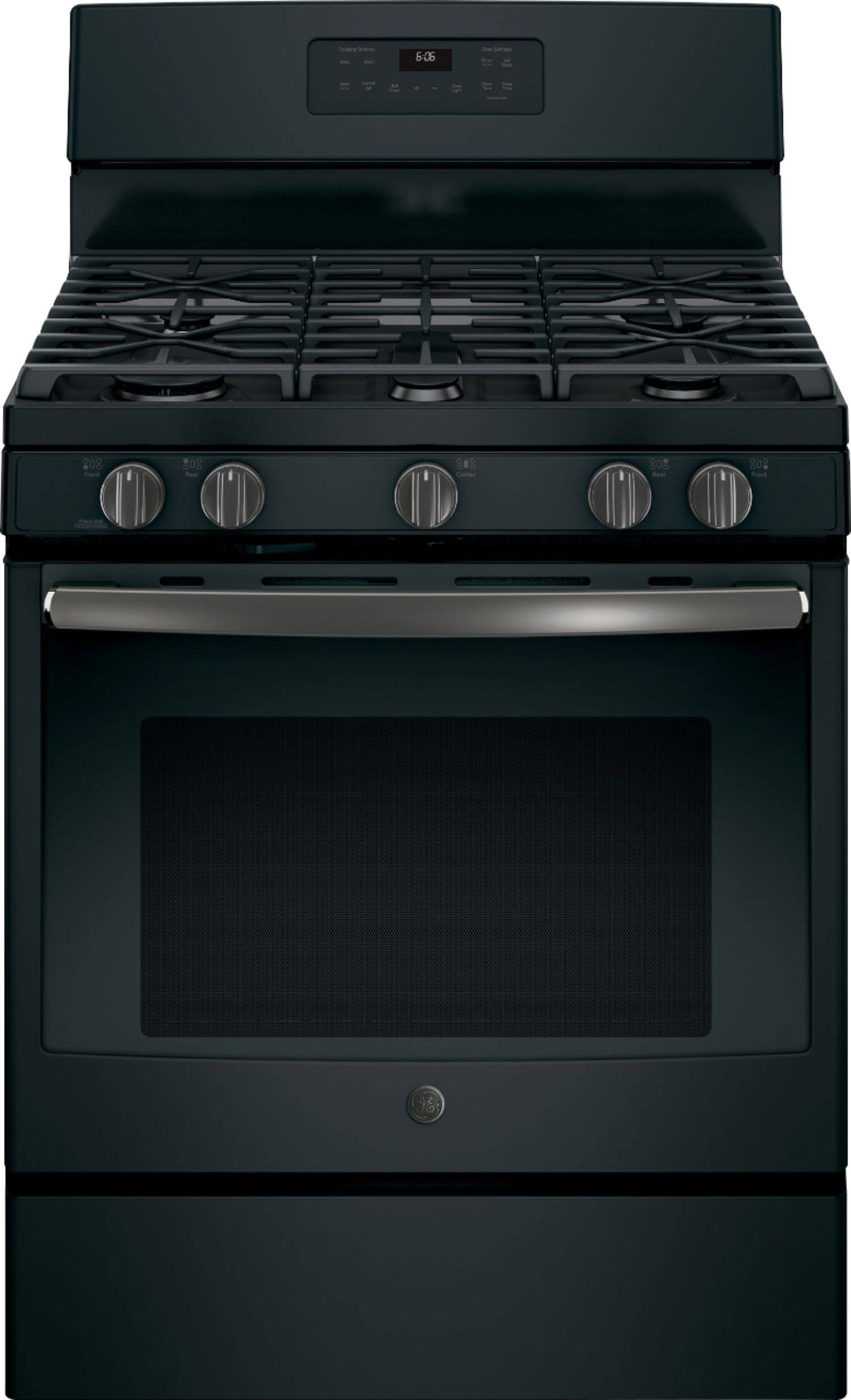

GE - 5.0 Cu. Ft. Self-Cleaning Freestanding Gas Range
- Key Specs
- Product Height: 47 1/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 28 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 26 1/4 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 28 3/4 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Single/Double Oven: Single Oven
- Color Finish: Black slate
- General
- Product Name: 5.0 Cu. Ft. Self-Cleaning Freestanding Gas Range
- Brand: GE
- Model Number: JGB660FEJDS
- Color Finish: Black slate
- Dimensions
- Product Height: 47 1/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 28 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Depth Without Handle: 26 1/4 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 28 3/4 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Product Weight: 195.11 pounds (The out of box weight of the item.)
- Capacity
- Oven Capacity: 5 cubic feet (Standard ovens typically have capacities of about 5 cubic feet, while wall ovens typically have about 3 cubic feet of space.)
- Features
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Range Power Source: Gas
- Gas Type: Natural gas
- Oven Control Location: Rear panel
- Clock Display: true
- Oven Light: true
- Propane (LP) Convertible: true
- Functions
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Oven Features
- Single/Double Oven: Single Oven
- Broiler Location: Oven
- Oven Window: true
- Cooktop Features
- Sealed Burners: false (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Specialty Burner(s): Oval, precise simmer (Do more with your cooktop with burners designed for specific cooking needs and precise control. For example, simmer burners provide consistent, low-temperature heat for melting delicate foods or simmering sauces, while power burners provide high cooking power for quick boiling, searing, or stir-fry cooking.)
- Grate Material: Cast iron
- Griddle Included: false
- Burner Rating
- Broiler Burner Rating: 13498 british thermal units
- Included
- Propane Conversion Kit Included: true
- Other
- UPC: 084691831884
A large, continuous cooking surface gives you extra room for pots and pans of all sizes and lets cookware move easily from burner to burner. Boil water fast with intense heat from the 18,000 BTU burner. A large oval fifth burner is ideal for griddle or odd-size cookware.
- Edge-to-edge cooktop: A large, continuous cooking surface gives you extra room for pots and pans of all sizes and lets cookware move easily from burner to burner
- 18,000 BTU Power Boil burner: Boil water fast with intense heat from this 18,000 BTU burner
- Center oval burner: Large oval fifth burner is ideal for griddle or odd-size cookware
- Precise Simmer burner: Delicate foods don’t burn with low, even heat
- Self-clean oven: Cleans the oven cavity without the need for scrubbing
- 5.0 cu. ft. oven capacity: Cook more dishes at once
- Heavy duty, dishwasher safe grates: Easily and safely clean grates in the dishwasher or place in the bottom of the self-clean oven
Product Manuals
A: After three years, the metal sheet covering the plastic started peeling off the knobs due to exposure to the heat from the oven. It started at the bottom of the knobs above the oven. We contacted GE directly and they sent us new knobs for free. These are cheap plastic and terrible for use in an appliance that uses high heat. The replacements are plastic as well, so we take the knobs off when using the oven, which is really inconvenient. We could not find any knobs that are all metal and don't want to ruin these because we may not get another set at no charge and they are not cheap to purchase. Really poor quality and we are very disappointed in GE, but I think all the manufactures are using plastic knobs now.
A: Hi LaurenP - When preheating, the oven's temperature display will show "100F" or "PrE" for preheat. It has an audible preheat signal. Many newer ranges have a Preheat that will signal when the oven has reached a temperature hot enough to add food, rather than when the set temperature is reached. Typically the range will signal after about 7-12 minutes, depending of the temperature you set. We test our ranges with prepackaged foods, frozen pizzas, baked goods, etc. We put the items in at the beep, and get good results. This can help save time in the kitchen, since you are not waiting longer for the preheat than necessary, in most cases. Recipes can differ, as can a food's preheat requirements. Most foods we tested don't require additional oven heating, though there are always exceptions. If you're finding a recipe isn't cooking properly, then you may want to turn on the oven a little bit before you start your food preparation to give it a little more time. You can also remove unused racks when using the oven for faster preheat, improved efficiency, and optimal performance. Keep in touch! Sue
A: Hi Hjimenez- Thanks for choosing GE! If necessary, the range door can be removed. See page 27 of the Owner's Manual - Lift-Off Oven Door: http://products.geappliances.com/MarketingObjectRetrieval/Dispatcher?RequestType=PDF&Name=49-85220-2.pdf - If you need venting, you may want to pair with GE® 1.7 Cu. Ft. Over-the-Range Sensor Microwave Oven JVM6175SKSS equipped with cooktop lighting and two-speed, 300-CFM venting system to remove smoke, steam and odors. We're glad to have you in the family. Enjoy! SUE@GEA
Q: Hi. Is there a griddle for this model? Thank you.
A: Hi DBK- Yes, we offer OPTIONAL ALUMINUM GRIDDLE WB31X24738 and OPTIONAL CAST IRON REVERSIBLE GRILL/GRIDDLE WB31X24998 (sold separately). You can order online at GEApplianceparts.com or contact our GE Appliances Parts Team for assistance at 1-877-959-8688, Mon–Fri 8am–7pm, Sat 8:30am–5pm ET. You may want to pair with GE® 1.7 Cu. Ft. Over-the-Range Sensor Microwave Oven JVM6175DKWW equipped with cooktop lighting and two-speed, 300-CFM venting system to remove smoke, steam and odors. Thanks for choosing GE! SUEatGEA
Q: Are the knobs on the front of the stove made of plastic or metal?
A: Plastic. I washed them with dish soap and water and 4 of 5 of them, the phony finish disintegrated! Now I have white plastic knobs with no markings on them!
A: Our stove came with a 110v preattached power cord. The power cord is approximately 3 feet. It comes with orafice parts to have stove changed from natural gas to lp if needed.
Q: Is the over a gas-operated or electric-operated?
A: Hello Jini - Thank you for your interest; we are happy to help! The oven is gas-operated, however, it requires electricity to ignite gas. We hope this helps. Thanks for checking. Olga
Q: What are the knobs made of? Are they plastic? Been reading that they melt, is that right?
A: Hi - The stainless steel appearance knobs are a durable electroplated plastic designed for use around heat so melting would not be considered normal. Gas ranges are designed specifically for closed door broiling and produce optimal broiling results. When broiling in gas ranges, you should keep the door closed for safety reasons. You should also use closed-door broiling when cooking in a range with knobs or controls above the door. This keeps the knobs from getting too hot or from getting damaged by the extended periods of high heat. Keep in touch! Sue
