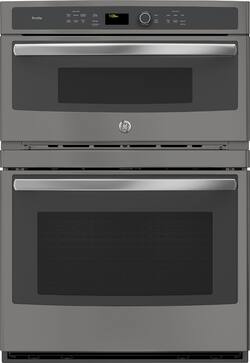

GE Profile - 30" Built-In Double Electric Convection Wall Oven with Built-In Microwave
- Key Specs
- Product Height: 43 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 26 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Oven 1 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Convection: false (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Color Finish: Slate
- General
- Product Name: 30" Built-In Double Electric Convection Wall Oven with Built-In Microwave
- Brand: GE Profile
- Model Number: PT7800EKES
- Color Finish: Slate
- Dimensions
- Product Height: 43 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 26 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 205 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 42 1/4 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 28 5/8 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 23 1/2 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Oven 1 Capacity: 5 cubic feet
- Oven 2 Capacity: 1.7 cubic feet
- Features
- Oven Type: Microwave and wall oven combination
- Oven Power Source: Electric
- Fingerprint Resistant: false
- Auto Shut-Off: false (Feature automatically turns off the product.)
- Clock Display: true
- Oven Light: true
- Turntable Diameter: 16 inches
- Removable Turntable: true
- Turntable: true (Rotating plate within the microwave cooking cavity that helps foods cook more evenly.)
- Functions
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Hidden Bake Element: true (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Time Bake: true (Allows you to program the appliance to run at a pre-determined time and automatically turn off when baking time is finished. Plan for mealtime or entertaining by setting your oven to start baking at a convenient time and reduce the worry of overcooking your food with the automatic shut off feature.)
- Rapid Preheat: false
- Dehydration Settings: false (This function sets the oven at a low temperature, typically under 200 degrees Fahrenheit, for an extended period of time. During this time, warm air circulates throughout the oven to draw moisture out of foods.)
- Oven 1 Specification
- Oven 1 Location: Lower
- Oven 1 Interior Height: 17 3/8 inches
- Oven 1 Interior Width: 25 inches
- Oven 1 Interior Depth: 20 1/4 inches
- Oven 1 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 1 Convection Type: True Convection (Convection adds a fan system to the two heating elements for continuous air motion and efficient cooking. True convection adds a third heating element to the fan system, for even more uniform heating.)
- Oven 1 Window: true
- Oven 1 Cleaning Method: Self-High Heat Cleaning, Self-Steam Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 1 Rack Positions: 6
- Number of Oven 1 Racks: 3
- Oven 1 Bake Element: 2850 watts
- Oven 1 Broil Element: 3400 watts
- Oven 2 Specification
- Oven 2 Location: Upper
- Oven 2 Interior Height: 8 1/2 inches
- Oven 2 Interior Width: 20 1/16 inches
- Oven 2 Interior Depth: 17 inches
- Oven 2 Convection: false (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Window: true
- Oven 2 Cleaning Method: Manual (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 2 Rack Positions: 6
- Number of Oven 2 Racks: 3
- Oven 2 Bake Element: 2850 watts
- Oven 2 Broil Element: 3400 watts
- Electrical Specification
- Amperage: 30 amperes (Strength of electrical current.)
- Voltage: 240 volts (Amount of power needed to support an electrical current.)
- Amperage At 208 Volts: true
- Amperage At 240 Volts: true
- Kilowatt Rating At 208 Volts: true
- Kilowatt Rating At 240 Volts: true
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Other
- UPC: 084691816393
GE PT7800EKES wall oven: Cook delicious meals with this GE Profile double oven. This built-in combination unit includes a convection microwave oven that circulates heat for even browning and cooking. The oven uses a third heating element and fan to provide authentic European convection. This slate gray GE Profile double oven's 10-pass coil covers a larger surface area for faster heating.
- Fit Guarantee: Replacing a similar wall oven from GE or another brand? GE wall ovens are guaranteed for an exact fit to make replacement easy. See offer criteria and details
- Convection microwave (upper oven): Circulates heat for high-quality results
- True European Convection (lower oven): Achieve delicious results from a third heating element and fan combination
- Self-clean, heavy-duty roller rack (lower oven): Easily access items with a rack that glides smoothly
- Self-clean with Steam Clean option (lower oven): Clean your oven the way you want
- Glass touch controls: Set temperatures quickly and clean with little effort
- Halogen interior oven lighting (lower oven): Easily see how your food is baking
- Ten-pass bake element (lower oven): Even baking is assured with heat that covers more surface area
- Eight-pass broil element (lower oven): Get full broil coverage and even browning from edge to edge
- 16" turntable (upper oven): Rotates food throughout the cooking cycle for even cooking results
Whats Included
- Convection Wall Oven with Built-In Microwave
- Owner's manual
Product Manuals
A: Hello lnr103 - Thank you for reaching out. We know appliance lingo can get confusing so we are happy to help. The upper portion of model PT7800SHSS can serve not only as a traditional microwave but is also capable of convection baking. Please let us know if you have any more questions. - John@GEA
A: Unfortunately you may not know until you pull the old unit completely out. The new wall unit has amazing capacity for both upper and lower ovens, but it fully utilized the cut out space. The electrical box and cord where the unit connects can be in the way of a clear fit. It wasn’t a big deal, but we had to move ours for the new unit to fit. I think there is a restocking fee, so I would have BB come out and measure for free with a written agreement there is no restocking fee if it actually does not fit. We are still learning to use all the features, but so far we love the PT7800SHSS.
A: Hi - We certainly appreciate your loyalty! GE Profile™ Series PT7800SHSS is designed for installation in the same 30" cabinet. Both require 23-1/2" deep cutout. FIT GUARANTEE- Replacing a similar wall oven from GE or another brand? GE wall ovens are guaranteed for an exact fit to make replacement easy. See offer criteria and details: https://www.geappliances.com/ge/wall-oven/79756_built_in_ge_rebate.pdf - Keep in touch! SUE@GEA
Q: If one of the units breaks down, do you have to replace both ovens
A: Hi just11wink- Built-in double ovens with microwave are designed as one model so that the oven and microwave are wired together. You cannot replace just the microwave or just the oven. It would require replacing the model. In the event you experience an issue, GE Appliances Repair is well equipped to take full and comprehensive care of your appliances. Get details: http://www.geappliances.com/ge/service-and-support/service.htm?ICID=GEARsupportflyout-service - You can also choose separate units: GE Profile™ Series Built-In Microwave/Convection Oven PWB7030SLSS and GE Profile™ Series 30" Built-In Single Convection Wall Oven PT9050SFSS or GE Profile™ Series 30" Built-In Single Convection Wall Oven PT7050SFSS. Model PT9050SFSS features *WIFI CONNECT- Wirelessly control oven functions from your smartphone. Play Video: https://www.youtube.com/embed/1XmOWZUjxkU?rel=0 - *NOTIFICATION LIGHTING - Know the status of your oven functions with a quick glance. Play Video: https://www.youtube.com/embed/soUSIRX99DY?rel=0 - Thanks for considering our GE Profile Series! SUEatGEA
A: I replaced my existing 30" white GE profile microwave/wall oven combo unit that was put in the wall by the builder when I bought the house new with this new GE profile stainless unit and it fit perfectly without having to cut the cabinetry or make any adjustments. I don't recall the previous unit model number, but the unit was 17 years old, white, and a GE profile combo unit. No issues swapping out the old with the new.
Q: Does the convection oven have auto conversions?
A: Hi Kathy- This is Sue at GE Appliances. Yes, the True European Convection Oven features Auto Recipe Conversion. When on, it will automatically convert the regular baking temperatures entered to convection bake cooking temperature when using Convection Bake. Thanks for checking with us!
Q: How long does the electric version of this oven take to heat up?
A: My oven (model PT7800SHSS) takes 15 minutes to preheat to 400 F.
A: No, this is not true. You can set the microwave for the desired time that you select. -Don@GEAppliances
