GE Profile - 30" Built-In Gas Cooktop
- Key Specs
- Product Height: 2 3/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 7/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Color Finish: Black
- General
- Product Name: 30" Built-In Gas Cooktop
- Brand: GE Profile
- Model Number: PGP9830DJBB
- Color Finish: Black
- Dimensions
- Product Height: 2 3/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 7/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 60 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Width: 28 7/8 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 20 5/8 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Downdraft Ventilation: true (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Control Type: Analog
- Control Location: Top
- Digital Display: false
- Hot Surface Indicator(s): false (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
- Portable: false
- Cooktop Features
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Stainless steel
- Number of Cooking Zones: 5
- Sealed Burners: true (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Specialty Burner(s): Not applicable (Do more with your cooktop with burners designed for specific cooking needs and precise control. For example, simmer burners provide consistent, low-temperature heat for melting delicate foods or simmering sauces, while power burners provide high cooking power for quick boiling, searing, or stir-fry cooking.)
- Grate Type: Continuous (Continuous grates allow cookware to be slid from burner to burner, while individual grates require the pot or pan to be lifted when moving around the cooktop.)
- Dishwasher-Safe Grates: true (Cooktop grates are safe to be washed in a dishwasher if they are treated with a special coating that withstands the high heat, water pressure, and detergent used in a standard wash cycle.)
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Griddle Included: false
- Power
- Cooktop Power Source: Gas
- Ignition Type: Electric
- Propane Conversion Kit Included: true
- Certifications Listings & Approvals
- ADA Compliant: true (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Other
- UPC: 084691813897

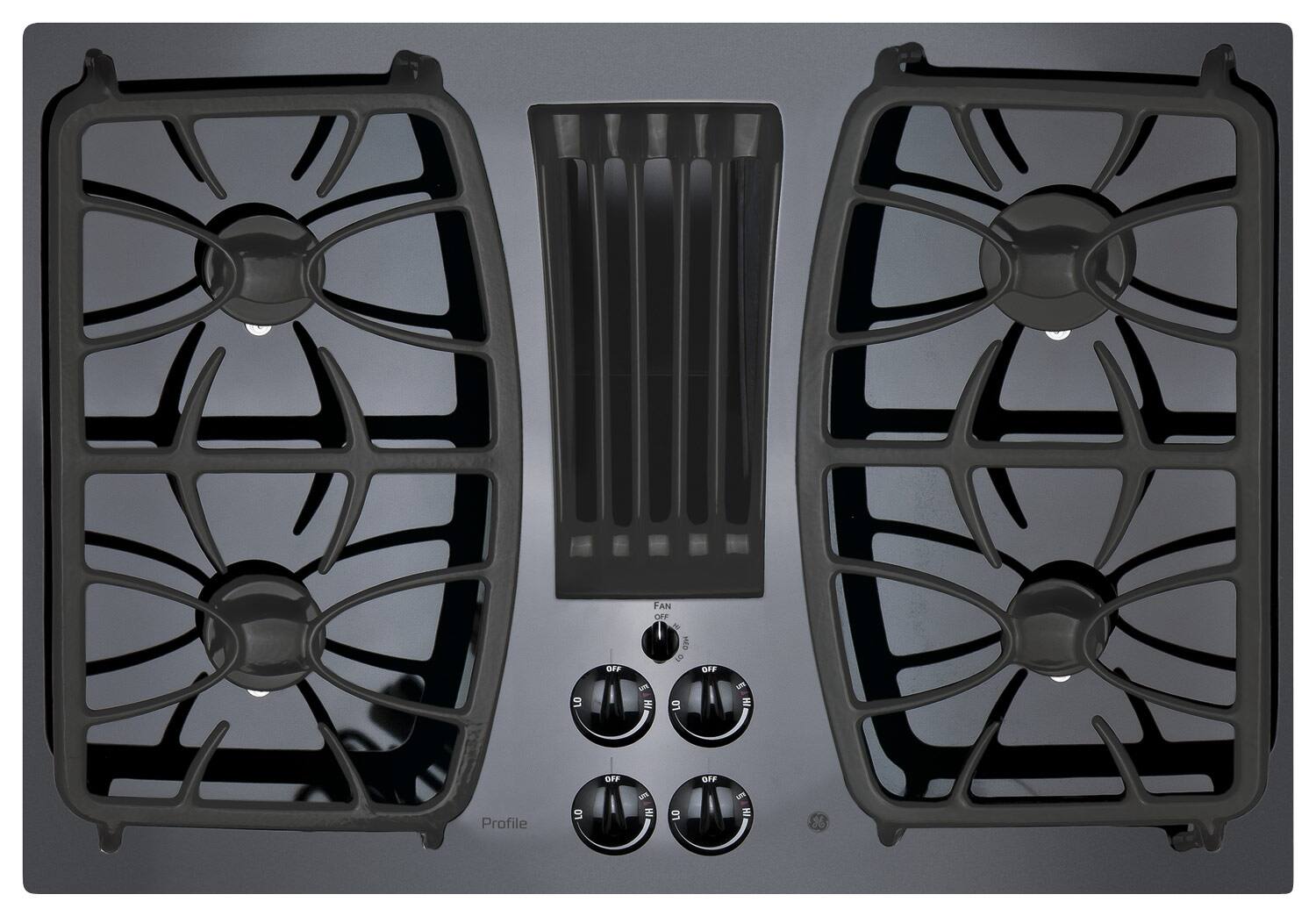

GE Profile Series gas cooktop: With 4 sealed burners providing 5,500-11,500 BTUs of power, you can enjoy versatile heating on this gas cooktop. The 3-speed downdraft exhaust fan moves 330 cfm on high for efficient ventilation when you need it.
- Fit Guarantee: Replacing a similar cooktop from GE or another brand? GE cooktops are guaranteed for an exact fit to make replacement easy. See offer criteria and details
- Four gas cooking burners: Cook foods quickly and evenly with all-purpose burners
- Gas on glass cooktop: Sleek and easy to clean
- 11,500 BTU all-purpose burner: Delivers a wide range of heat output for most cooking needs
- Downdraft exhaust: Powerful exhaust system effectively pulls smoke and steam out of the kitchen
- Sealed cooktop burners: Contains spills and make cleaning quick and easy
- Knob controls with black glass surface: Achieve a modern look with the convenience of knob controls
- Dishwasher-safe grates and knobs: Safe to clean in the dishwasher
A: The fan does not turn on automatically when the burners are in use. You must use the fan switch to activate the fan.
A: Where your exhaust vent exist the building there should be a vent cap with a spring loaded dampener . It opens when positive pressure from the blower is on and automatically closes when you turn off the fan. Can be bought at any Lowes or Depot
Q: Can this unit be used with propane?
A: Hello Cynthia - GE Appliances recommends a qualified installer or servicer convert the gas range, oven, or cooktop to the proper gas supply needed. The conversion must be in accordance with the manufacturer’s instructions and all codes and requirements of the authority having jurisdiction. The conversion instructions are located in the wiring diagram (mini-manual) or included with the LP kit attached to the appliance near the pressure regulator. Please consult the Owner's Manual or Installation Instructions to obtain information regarding any additional parts you may need to purchase. - TREY@GEA
Q: What are the cutout dimentions in the countertop.
A: Hello - this is Nancy at GE Appliances and I am happy to help you. The countertop cutout dimensions for this cooktop are: 20-5/8" deep x 28-7/8" wide. We recommend viewing the Installation Instructions in the following link: http://products.geappliances.com/MarketingObjectRetrieval/Dispatcher?RequestType=PDF&Name=49-80516-4.pdf I hope this helps! Thanks for checking with us!
A: Hi K! Thanks for your question! We'd be happy to take a look into this for you. After some research, we found the part number for the glass top on this cooktop is as follows: WB62X25215. If you're needing this part replaced, we'd recommend scheduling a service appointment for help with this. We hope that this helps and that you're staying safe. -Michael@GEA
Q: Does this model come with the downdraft blower?
A: Hi frenchy, thanks for your question! The downdraft system with blower, motor and ductwork will occupy the cabinet below the cooktop. Drawers cannot be installed below this cooktop. Yes, the blower for the downdraft system is included. We hope that this helps! Stay safe. -Michael
