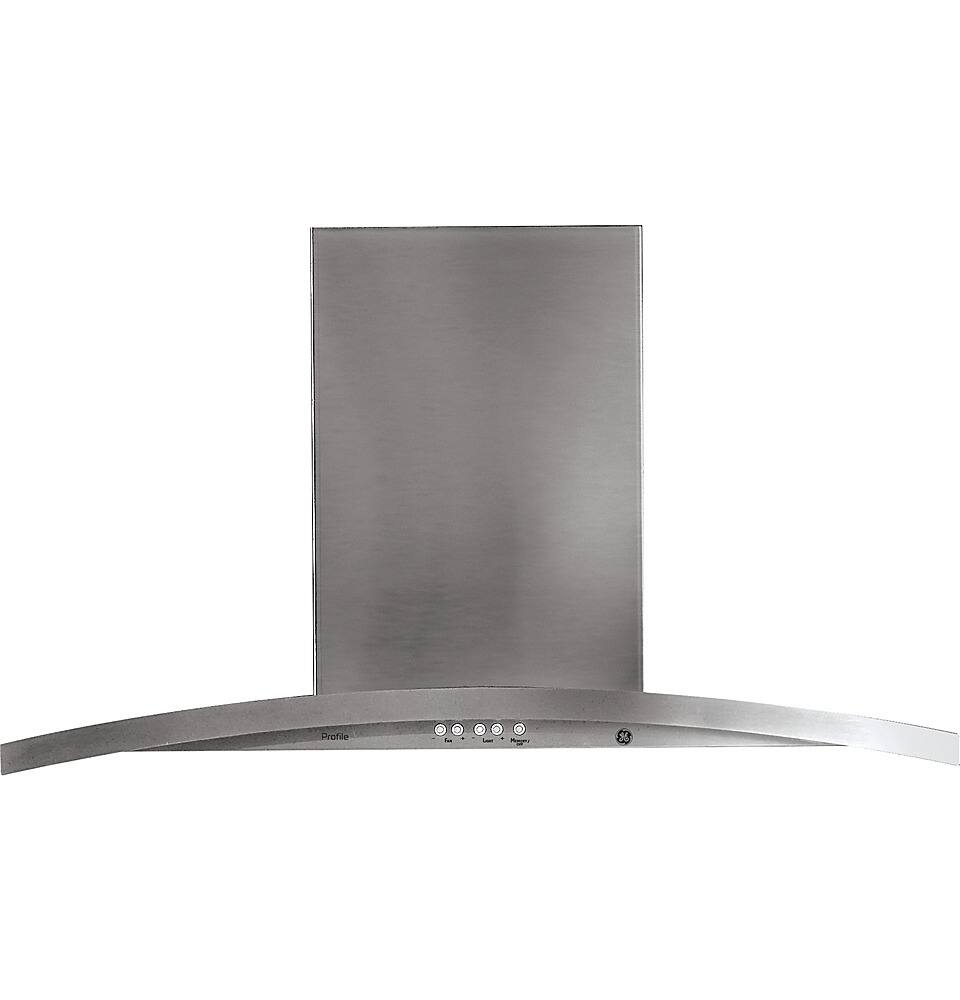

GE Profile Series - 30 inches - Convertible - Wall Range Hood - Stainless Steel
- Key Specs
- Product Height: 2 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Color Finish: Stainless steel
- General
- Product Name: Designer 30" Convertible Range Hood
- Brand: GE Profile
- Model Number: PV970NSS
- Vendor Collection: GE Profile Series (Part of a line of different product types, like kitchen appliances.)
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 2 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 24 inches
- Maximum Installation Height Above Cooktop: 36 inches
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 60 pounds (The out of box weight of the item.)
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Wall
- Number of Fan Speeds: 4
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Button
- Delay Shut-Off: false (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Remote Control: false
- Auto Fan Shut-Off: false
- Integrated Light(s): true
- Number of Lights: 2
- Number of Light Levels: 2
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 3 watts
- Performance
- Maximum Air Flow Capacity: 450 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 210 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Maximum Operating Sound Level: 7 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 1.5 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Electrical Specification
- Amperage: 4.1 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Other
- UPC: 084691174745
This range hood features a 450 cfm exhaust system and a 4-speed fan to provide fast and efficient removal of smoke, odors and grease from your kitchen. The grease filter is dishwasher-safe for easy cleaning.
- 450-CFM venting system: Helps effectively remove smoke, grease, odors and moisture
- Push-button controls: Are easy to see and easy to use
- Variable speed fan control: Helps draw smoke, grease, odors and moisture out of the kitchen air
- Vertical exhaust: Exhausts from the top of the hood
- LED cooktop lights: Illuminates the cooking surface
- Night light: Soft light at night
- Dishwasher safe filter: Filters grease and is dishwasher-safe
Whats Included
- GE Profile Designer 30" Convertible Range Hood
- Owner's Manual
Q: Can this range hood work with a 7 1/2 ft ceiling?
A: Hello, thank you for your question. Yes, this range will work with a 7-1/2 ft ceiling. We recommend you check out the installation instructions for this range hood, found on our website, to view proper installation guidelines. We hope this helps! -Chris@GEA
A: Hello MorePowerful - Thank you for the interest in our wide range of vent hoods. We are happy to share more about them. Model UVW9301SLSS has a Boost setting that runs for 10 minutes at 610 CFM. The normal high setting runs at 380 CFM. The unit cannot also be converted to make 390 or 290 CFM the maximum setting if local code requires it. The model PV970NSS does not have the Boost setting but has a high setting that stays 450 CFM. Please let us know if you have any more questions. - John@GEA
Q: Is this a plug in or must it be wired?
A: It is wired. You can download installation instructions from GE web site.
Q: How high on wall should electric be installed so hood vent covers
A: Hello- Thanks so much for checking with us. We are happy to help! The wiring should enter the back wall at least 18" above the bottom of the hood and within 5” of the left side of the centerline. Please review pages 10 and 14 in the installation instructions for additional details. https://products.geappliances.com/MarketingObjectRetrieval/Dispatcher?RequestType=PDF&Name=49-2000916.pdf&_ga=2.2572144.1738487097.1651512251-286710438.1648489339&_gac=1.208937254.1649717591.EAIaIQobChMImZ3M7YyN9wIVnGxvBB01OgI6EAAYASAAEgI88_D_BwE If you have any questions in the future, please reach out to us directly. We are here to help! Joyce@GEA
Q: Is this 400 or 450 cfm? It says 400 on one description and 450 on specs.
A: The GE - Profile Designer 30" Convertible Range Hood has a 450-CFM rating.
Q: Convertible means exactly what? for this range hood
A: Hello, This is Joyce from GE. I will be happy to help. The Convertible indicates this hood offers customizable venting/installation to suit your kitchen. Thanks so much for checking with us. Have a good day!
