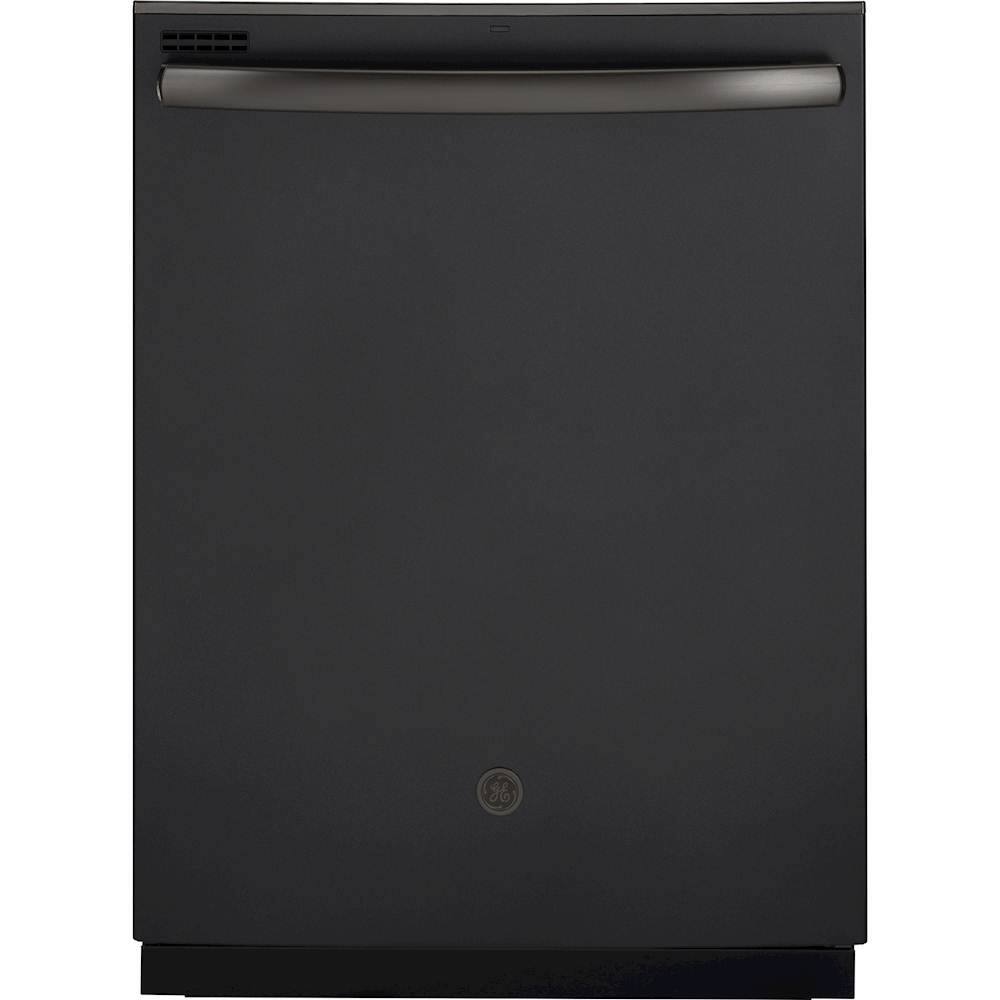

GE - Top Control Built-In Dishwasher with 3rd Rack, 50dBA - Black Slate
- Key Specs
- Product Height: 34 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Operating Sound Level: 50 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Number Of Racks: 3
- Tub Finish: Plastic (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Place Setting Capacity: 16 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- Works With: Amazon Alexa, Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
- Color Finish: Black slate
- General
- Product Name: Top Control Built-In Dishwasher with 3rd Rack, 50dBA
- Brand: GE
- Model Number: GDT630PFMDS
- Color: Black Slate
- Color Finish: Black slate
- Dimensions
- Product Height: 34 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 67 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 34 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 23 3/4 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Hard Food Disposer: true (This feature has blades to chop and disintegrate hard food particles, making them small enough to easily drain away. This prevents them from being recirculated back onto dishware and allows for easy maintenance.)
- Drying Method: Heated drying (Appliances that use heat to dry the dishes will include a heating element or minerals which transform moisture into heat. A fan or vent then circulates the hot dry air throughout the tub during the drying cycle. This may reduce drying time and the risk of water spots. Appliances that use minerals to produce heat are considered more energy efficient than those that include a heating element. Appliances that use condensation drying are considered more energy efficient than those that use heated drying. Instead, high temperature water is produced during the final rinse cycle which warms the interior and eventually condensates and drains out of the machine.)
- Operating Sound Level: 50 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Delay Start: true (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
- End-Of-Cycle Signal: true (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
- Cycle Status Lights: true (Lights on the control panel that indicate which cycle is in use and/or its current status. Know when to unload with a simple glance.)
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
- Wireless Connectivity: Wi-Fi adapter required (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Cycle Specifications
- Number of Cycles: 4 (Standard dishwashers have at least 3 cycles, each with different water pressure, speed, and temperature settings designed for particular loads.)
- Dishwasher Cycles: 1 Hour Wash, Auto Sense, Heavy Wash, Normal Wash
- Options and Programs: Bottle Wash, Child Lock, Delay Start 1-12 Hr., Dry Boost, Heated Dry, Sanitize (Certified to NSF Standard 184), Start/Reset, Steam PreWash, Wash TempBoost, Wash Zone Lower Only, Wash Zone Upper Only
- Steam Pre-Wash: true (Loosens food debris by creating steam inside the washer before the primary wash cycle, allowing for an easier, gentler clean of dishware.)
- NSF-Certified Sanitization Cycle: true (Meets the National Sanitation Foundation (NSF) standards for performance and cleaning effectiveness. When operated on the sanitizing cycle, an NSF-Certified dishwasher reaches a final rinse temperature of 150⁰ Fahrenheit and achieves a minimum 99.999% percent reduction of bacteria.)
- Rack Features
- Number Of Racks: 3
- Third Rack Features: Removable (Aspects of third rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Upper Rack Features: Adjustable height, Ball-tipped tines, Removable (Aspects of upper rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, cup clips, and stemware holders.)
- Lower Rack Features: Ball-tipped tines (Aspects of lower rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Rack Material: Nylon
- Design
- Panel Ready: false (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Dishwasher Type: Built-in dishwashers
- Tub Finish: Plastic (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Control Type: Button
- Control Location: Top control
- Place Setting Capacity: 16 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Electrical Specification
- Estimated Annual Electricity Use: 270 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 35 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Amperage: 7.1 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Consortium for Energy Efficiency (CEE) Rating: CEE Not Qualified
- Compatibility
- Works With: Amazon Alexa, Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
- Other
- UPC: 084691850878
Keep stacks of dirty dishes to a minimum with this GE built-in dishwasher. The Piranha hard food disposal system prevents clogs and keeps food particles off of your dishes, while the high-temperature rinse function sanitizes dishes to kill most of bacteria. This GE built-in dishwasher boasts four wash cycles and automatic temperature control for consistent, reliable results.
href="http://www.bestbuy.com/site/buying-guides/dishwasher-buying-guide/pcmcat333300050011.c?id=pcmcat333300050011&type=category" name="&lid=PDP_DishwasherBuyingGuide_122899" onclick="return popNew(this,960,800);" title="Dishwasher Buying Guide" target="_blank" name="&lid=PDP_DishwasherBuyingGuide_122899">
- 3rd rack: Easily clean an entire flatware collection, knives, and small utensils with an additional rack across the top of the dishwasher.
- Dry Boost™: Gets hard-to-dry items up to 3 times drier than heated dry cycles (compared to heated dry option).
- 4 bottle wash jets: Clean hard-to-reach areas inside tall items with up to 4 dedicated jets integrated into the upper rack that shower water deep inside for an ultimate clean.
- Wash zones: Wash a true half-load in either the upper or lower rack without sacrificing cycles and options available on a full wash.
- Three-level 600 Series wash system: Get full wash coverage from three pressurized wash zones.
- Steam prewash: Loosens tough soils before any cycle, virtually eliminating the need for soaking or prerinsing dishes.
- Dedicated silverware jets: Get table-ready silverware thanks to powerful jets that focus on silverware baskets.
- Piranha hard food disposer: To ensure consistently clean items, this stainless steel blade rotates at 3600 rpm to pulverize food particles and helps prevent large particles from clogging the wash arms.
- Adjustable upper rack: Fitting plates up to 10½" and other tall items in the upper rack is possible with an adjustment.
- 1-hour wash: Enjoy a quality clean when you're short on time.
Whats Included
- Dishwasher hookup kit is not included
- GE Top Control Built-In Dishwasher with 3rd Rack, 50dBA
- Owner's manual
Product Manuals
Documents
- Energy_Guide_PDF
A: Hi jack, Thanks so much for reaching out. We're happy to answer your question. The water supply line may enter from the rear, either side or from the floor. Please check page 5 for more detailed instructions. https://files.bbystatic.com/4hVkhLouucufMH5qmHi%2FQg%3D%3D/05f363b3-c107-4fe2-8d6f-d1ac59d883bc.pdf. If you have any other questions, please feel free to reach out to us via social media or through our Contact Us page. We hope this helps. Best wishes. Mike@GEA
A: You can select the energy mode, it washes the dishes just as good with less time and water usage.
A: Hi there Pipedreams, Thank you so much for reaching out. We're sorry to hear that your dishwasher stops in the middle of the cycle. We would recommend resetting the circuit breaker. If that does not resolve the issue, then we recommend scheduling service. You can schedule an appointment by calling 1-800-432-2737. If you have any other questions, please feel free to reach out to us via social media or through our Contact Us page. We hope this helps. Best wishes. Mike@GEA
A: Hello Lisa, We appreciate you reaching out and are happy to help answer your questions. This dishwasher does have a turbidity sensor, which detects how much soil is on the dishes. The cycle times can be found on page 7 of the owner's manual. https://files.bbystatic.com/Nk6RvUDwj1kY1EgmP8km1g%3D%3D/2c9afd40-ba6b-4328-8f34-008c8b2670a4.pdf. We hope this information is helpful. Best wishes -Mike@GEA
Q: How many gallons of water is consumed on the different cycles?
A: Hello Rizzo - Thank you for reaching out about this amazing dishwasher. Depending on the settings and the turbidity sensor in the unit, the water usage varies from 2.4 to 6 gallons of water per cycle. Keep in touch! - JB
Q: How to you it to wash the bowls？Which key do I press？
A: Hi Yuna - Thanks for choosing GE! Selecting either the Upper or Lower Wash Zones will target dishwashing of just one rack. This will shorten the cycle time and conserve energy. This option should be used when dishes are placed in only one rack. If you are just wanting to wash bowls loaded in the top rack, select Upper Wash Zone. We suggest viewing cycle options and descriptions on pages 5-7 of the Use and Care Manual at the following link: https://products.geappliances.com/MarketingObjectRetrieval/Dispatcher?RequestType=PDF&Name=49-55122-4.PDF - Keep in touch at GEAppliances.com. We are always eager to help! Sue
