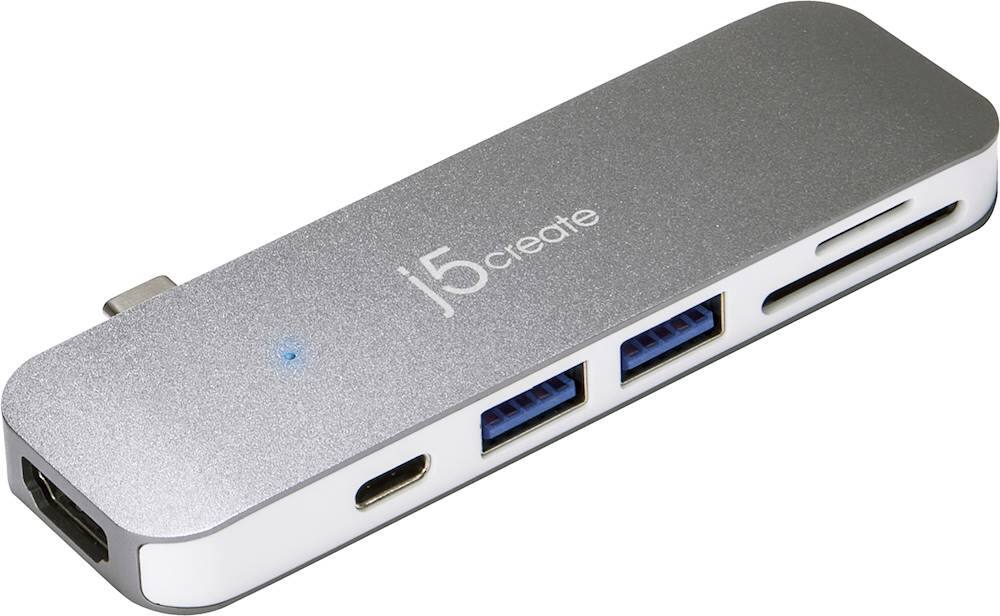

j5create - USB-C ULTRADRIVE MINIDOCK
- Key Specs
- Maximum Number of Displays Supported: 1
- Maximum Supported Resolution: 4K (2160p)
- Number of DisplayPort Outputs (Total): 0
- Passthrough Power: true (Indicates whether the device allows power to passthrough, possibly with some loss, to another device, typically to charge that other device.)
- General
- Product Name: USB-C ULTRADRIVE MINIDOCK
- Brand: j5create
- Model Number: JCD386
- Display
- Maximum Number of Displays Supported: 1
- Maximum Supported Resolution: 4K (2160p)
- Maximum Supported Refresh Rate: 30Hz (The number of frames per second the device can support, expressed as a frequency. Higher rates help produce smooth, seamless pictures.)
- Ports
- Display Connector(s): 1 x HDMI (The number and type of connectors used to connect to an external display.)
- Number of DisplayPort Outputs (Total): 0
- Number of HDMI Ports (Total): 1
- Number of VGA Ports: 0 (VGA (Video Graphics Adapter or Video Graphics Array) is a display standard that transmits via analog signals. This type of interface is typically used to connect a computer to a display device such as a monitor, projector, or TV.)
- Number of USB Ports (Total): 3
- USB Ports: 2 x USB-A 3.1 (The number and type of USB ports the product has.)
- Memory Card Slot: true
- Memory Card Type: Secure Digital, microSD
- Power
- Powered: true
- Power Supply Input: USB Type C
- Maximum Input Power: 60 watts (The maximum amount of power allowed to come into the device.)
- Passthrough Power: true (Indicates whether the device allows power to passthrough, possibly with some loss, to another device, typically to charge that other device.)
- Power Supply Output: USB Type C (The connector type(s) used by the device to send electrical power to another device.)
- Maximum Output Power: 60 watts (The maximum amount of power produced or allowed to flow through the device.)
- Compatibility
- Maximum Data Speed: 5000 megabits per second
- System Requirements: Available USB-C port that supports DisplayPort alt mode and USB Power Delivery 2.0 or 3.0. (The software that a product must have for it to be able to integrate with another product.)
- Brand Compatibility: Available USB-C port that supports DisplayPort alt mode and USB Power Delivery 2.0 or 3.0.
- Model Compatibility: Available USB-C port that supports DisplayPort alt mode and USB Power Delivery 2.0 or 3.0.
- Features
- Material: Aluminum
- Indicator Light(s): true
- Dimensions
- Product Height: 1.26 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 0.43 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 4.21 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 0.11 ounces (The out of box weight of the item.)
- Other
- UPC: 847626002755
This USB-C multi-adapter with HDMI turns your laptop into a portable workstation, adding 4K video, two USB Type-A ports with support for USB Power Delivery and an SD & microSD port. You can power and charge your USB-C devices through its USB-C port while simultaneously powering the hub.
- Expand: Expand one USB-C port into five ports: 2x USB 3.0 ports, SD and microSD slots. All ports can be used simultaneously.
- 4K HDMI port: Connect with HDMI cable and output to 4K @ 30Hz high resolution monitor.
- High-speed data transfer: Data transfer of up to 5 Gbps with USB3.1 / 3.0 Gen1. Various peripheral devices can be added.
- Power Delivery 3.0 + data transfer: The installed Type-C port supports both PD 3.0 charging and data transmission. Data transfer can be used when PD charging is not performed.
- Card reader: The card reader supports a maximum capacity of 2TB. You can easily back up data with a memory card.
Whats Included
- 1 - JCD386 USB-C 7-in-1 ULTRADRIVEMINIDOCK
- 1 - Quick Installation Guide
Product Manuals
Q: will this work for a mac mini m1?
A: Yes, it's a Plug n Play device, it does not require a driver.
A: We are working with the retailer to get the description fixed. Please visit j5create.com if you need more information on the JCD386 device. Thank you.
A: The Mini Dock will only support (1) HDMI display, will not support 11. Unfortunately, it seems the specifications are incorrect. Thank you for bringing this to our attention. Cordially, j5.
A: USB 3.1 provides up to 5 Gbps transfer rate.
Q: Will this work with a Surface 4?
A: If the Surface Laptop 4 or Pro 4 has a USB Type-C 3.1 Gen 2 port and supports DisplayPort Alt. Mode for video output and Power Delivery for pass-through charge, then the Mini Dock will work. Please contact Microsoft Support to have them verify those features. Thank you.
Q: Is this compatible with a Dell Inspiron FHD+ laptop?
A: Because the JCD386 requires DP alt-mode capability on your USB-C port and your computer does not , this mini dock will not fully function for you. Instead, we recommend the JCD381.
Q: Is this product compatible with an HP Book Firefly 15 G7?
A: Yes, the JCD386 will work for your HP.
Q: Can this use for Samsung Galaxy tab S5e?
A: The JCD367 Can be used with any device that has a USB type C port that supports Displayport Alternate mode.
