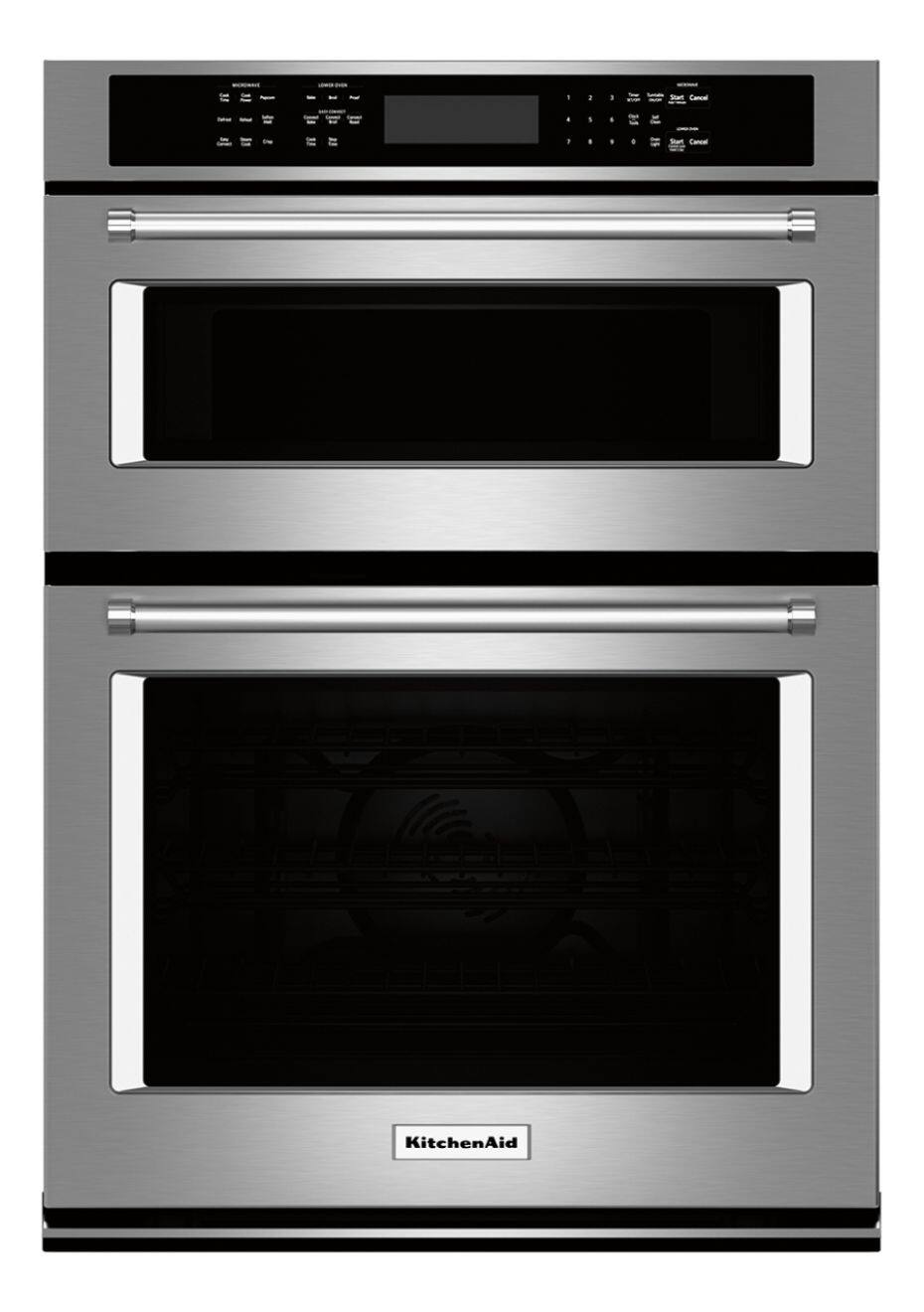

KitchenAid - 30" Single Electric Convection Wall Oven with Built-In Microwave - Stainless Steel
- Key Specs
- Color Finish: Stainless steel
- Product Height: 42 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 1/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 24 1/2 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Oven 1 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: KitchenAid
- Model Number: KOCE500ESS
- Product Name: 30" Single Electric Convection Wall Oven with Built-In Microwave
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 42 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 1/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Depth Without Handle: 24 1/2 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Door 90 Degrees Open: 46 3/4 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
- Product Weight: 200 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 41 5/16 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 28 1/2 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Oven 1 Capacity: 5 cubic feet
- Oven 2 Capacity: 1.4 cubic feet
- Features
- Oven Type: Double wall oven
- Oven Power Source: Electric
- Fingerprint Resistant: false
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Control Type: Touchpad, Touchpad, Touchpad
- Clock Display: true
- Oven Light: true
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Design
- Display Type: None
- Functions
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Delay Clean Option: false
- Hidden Bake Element: true (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Keep Warm Setting: true
- Variable Broil: false (This feature allows you to change the temperature of the broil function, which provides more versatility and control when preparing your favorite foods.)
- Timer: true
- Time Bake: true (Allows you to program the appliance to run at a pre-determined time and automatically turn off when baking time is finished. Plan for mealtime or entertaining by setting your oven to start baking at a convenient time and reduce the worry of overcooking your food with the automatic shut off feature.)
- Rapid Preheat: false
- Dehydration Settings: false (This function sets the oven at a low temperature, typically under 200 degrees Fahrenheit, for an extended period of time. During this time, warm air circulates throughout the oven to draw moisture out of foods.)
- Oven 1 Specification
- Oven 1 Location: Lower
- Oven 1 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 1 Window: true
- Oven 1 Cleaning Method: Self-High Heat Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 1 Rack Positions: 0
- Number of Oven 1 Racks: 0
- Oven 1 Bake Element: 2800 watts
- Oven 1 Broil Element: 4000 watts
- Oven 2 Specification
- Oven 2 Location: Upper
- Oven 2 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Window: true
- Oven 2 Cleaning Method: Manual (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 2 Rack Positions: 6
- Number of Oven 2 Racks: 3
- Electrical Specification
- Amperage: 32 amperes (Strength of electrical current.)
- Voltage: 240 volts (Amount of power needed to support an electrical current.)
- Wattage: 3200 watts (Measurement of electrical power.)
- Amperage At 208 Volts: true
- Amperage At 240 Volts: true
- Kilowatt Rating At 208 Volts: true
- Kilowatt Rating At 240 Volts: true
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Certifications Listings & Approvals
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Chemical Disclosures: This product may contain one or more regulated perfluoroalkyl and polyfluoroalkyl substances or PFAS. Mandatory reporting is not required until January 1, 2025. Whirlpool Corporation is in the process of gathering more information on PFAS use across our supplier base, and will update this disclosure as we learn more. For more information about chemicals in this product, visit www.kitchenaid.com/regulatory. [Este producto puede contener una o más sustancias perfluoroalquilo y polifluoroalquilo reguladas o PFAS. No se requieren informes obligatorios hasta el 1 de enero de 2025. Whirlpool Corporation está en el proceso de recopilar más información sobre el uso de PFAS en nuestra base de proveedores y actualizará esta divulgación a medida que sepamos más. Para obtener más información sobre los químicos en este producto, visite www.kitchenaid.com/regulatory.] (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 883049327389
KitchenAid wall oven:Get the best of both worlds with this wall oven and microwave. SatinGlide roll-out extension rack provides an easy-grip handle to ensure simple loading and unloading of heavy dishes, and the microwave browns, crisps and fries.
- Circulates air evenly throughout the oven: Even-Heat convection ensures consistent heating for delicious results. Microwave convection helps reduce hot spots.
- Adjustable self-cleaning cycle: Does the scrubbing for you, so you can spend more time relaxing with your family.
- Accommodates multiple dishes simultaneously: 5.0 cu. ft. capacity oven lets you cook for a crowd, and the 1.4 cu. ft. capacity microwave offers plenty of room for heating up a quick snack.
- Accommodate heavy and odd-shape cookware: 3 oven racks, including 1 SatinGlide roll-out extension rack, can be placed in 6 different positions for simple loading and unloading.
- Use the microwave to grill, fry and convection cook: Crispwave technology with a crisper pan enables simple browning, crisping and pan-frying in the microwave.
- Arrive home to a perfectly cooked dinner: Delay-start option lets you begin cooking when it is best for you, even if you aren't at home.
- Auto shutoff: Program the timed bake to shut the oven off when the cycle finishes for worry-free use when the kids are home alone.
- Safely maintains the specified temperature for an extended period of time: Sabbath mode delivers simple compliance with kosher cooking practices.
- Control lock: Helps prevent accidental or unsupervised use.
- Make sure your meats are done: Temperature probe checks internal temperatures of your meats without releasing heat for an accurate reading.
- Circulates air evenly throughout the oven: Even-Heat convection ensures consistent heating for delicious results. Microwave convection helps reduce hot spots.
- Adjustable self-cleaning cycle: Does the scrubbing for you, so you can spend more time relaxing with your family.
- Accommodates multiple dishes simultaneously: 5.0 cu. ft. capacity oven lets you cook for a crowd, and the 1.4 cu. ft. capacity microwave offers plenty of room for heating up a quick snack.
- Accommodate heavy and odd-shape cookware: 3 oven racks, including 1 SatinGlide roll-out extension rack, can be placed in 6 different positions for simple loading and unloading.
- Use the microwave to grill, fry and convection cook: Crispwave technology with a crisper pan enables simple browning, crisping and pan-frying in the microwave.
- Arrive home to a perfectly cooked dinner: Delay-start option lets you begin cooking when it is best for you, even if you aren't at home.
- Auto shutoff: Program the timed bake to shut the oven off when the cycle finishes for worry-free use when the kids are home alone.
- Safely maintains the specified temperature for an extended period of time: Sabbath mode delivers simple compliance with kosher cooking practices.
- Control lock: Helps prevent accidental or unsupervised use.
- Make sure your meats are done: Temperature probe checks internal temperatures of your meats without releasing heat for an accurate reading.
Whats Included
- 30" Single Electric Convection Wall Oven with Built-In Microwave
- Owner's manual
- 30" Single Electric Convection Wall Oven with Built-In Microwave
- Owner's manual
A: My older one is a microwave with convection oven. It does work exactly as an oven. However, it is small, and on a turntable, so can only be used with smaller dishes.
Q: measurements for cabinet to fit unit??
A: Look at the photo attachment
Q: Is the black stainless steel fingerprint resistance?
A: Hello TN, the KOCE500EBS features a standard Black Stainless Steel finish, we strongly suggest affresh® Stainless Steel cleaners (and a soft, clean cloth!) to help keep your Stainless Steel looking great! Here is a link for you: https://www.bestbuy.com/site/searchpage.jsp?st=affresh+stainless&_dyncharset=UTF-8&id=pcat17071&type=page&sc=Global&cp=1&nrp=&sp=&qp=&list=n&af=true&iht=y&usc=All+Categories&ks=960&keys=keys
Q: What size of outlet plug is required to power this unit and how many plugs ?
A: It requires 220 volt power and is designed for direct connection (no plug or outlet) to 4 wire (two hot, one neutral, one ground) power supply. Not advisable to use a plug and outlet.
A: Hi. I had the same issue. But it is fixed now Press tools button and scroll until you get to turntable. Select on. Mine was off.
A: Hello UConnJohn! Unfortunately, we do not have this model in gray. We do apologize.
A: Wall oven cabinets and their openings are made specifically for a wall oven model. It sounds like you have a cabinet that was made for 2 separate appliances. If it happens that the measurement of the existing opening is the same as the height of the new oven then all is well. Otherwise your existing cabinet will need to be modified one way or another larger or smaller to accommodate the new appliance. The width is probably no problem. If opening is too large then you would need someone to close in and match the existing cabinet finish. Any qualified trim carpenter usually has some leftover trim pieces from previous projects that may be a perfect match. Otherwise a long standing cabinet supply company may also have what you need. If enlarging the opening then again a qualified and careful trim carpenter can often do that. Lou
A: I am sorry but I have been through the same issue with a previous combo from GE. I looked for a 2 piece unit but it would require wood work to enlarge the space for the new 2 piece unit, if I got it. I opted to go with the 1 piece unit because the problems I had with the GE had been remedied with the new KitchenAid in that the microwave was stainless steel throughout while the GE was painted white. That had been the main issue, the paint was peeling off making it unsafe to use. The new microwave is also a convection oven that is a nice addition to the capabilities. Being a one piece, yes, if it ever breaks down you will have to lose the whole oven, if it ever does!
