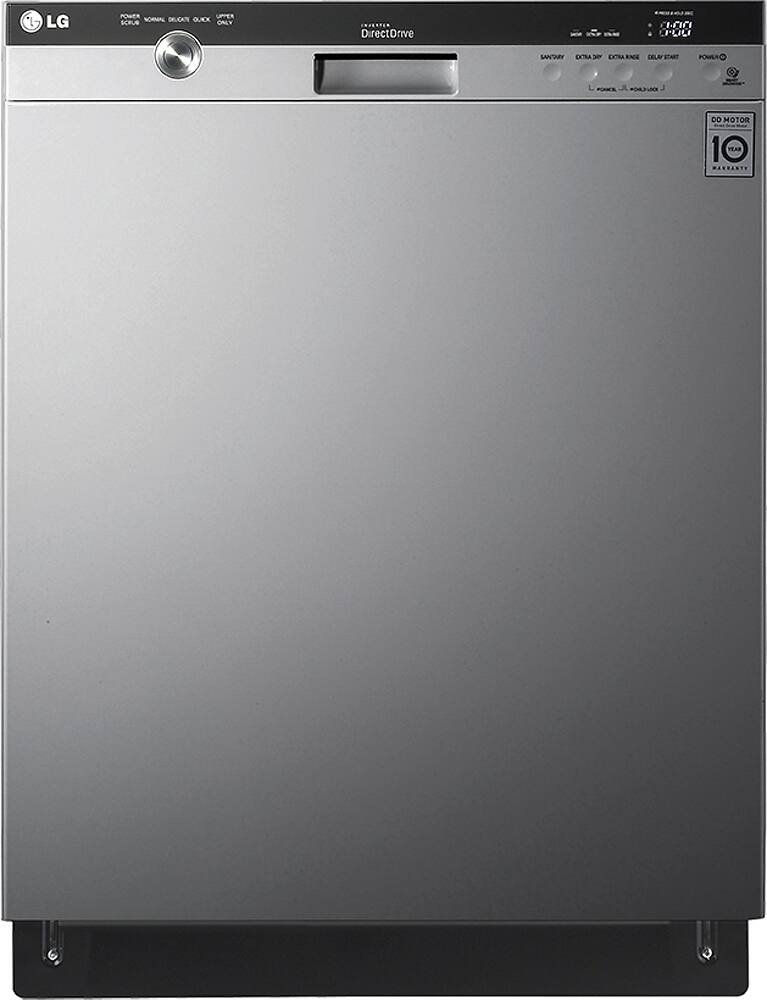

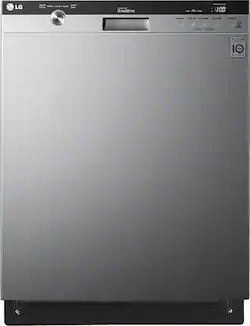

LG - 24" Built-In Dishwasher with Tub - Stainless steel
- Key Specs
- Product Depth: 24.63 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Operating Sound Level: 48 decibels (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Number Of Racks: 2
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Color Finish: Stainless steel
- General
- Product Name: 24" Built-In Dishwasher with Stainless Steel Tub
- Brand: LG
- Model Number: LDS5540ST
- Color Finish: Stainless steel
- Dimensions
- Product Depth: 24.63 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth With Door Open: 49.75 inches (Measurement from the back of the product to its front, with door fully open.)
- Cut-Out Dimensions
- Cut-Out Height: 34 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 24 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 25 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Hard Food Disposer: true (This feature has blades to chop and disintegrate hard food particles, making them small enough to easily drain away. This prevents them from being recirculated back onto dishware and allows for easy maintenance.)
- Operating Sound Level: 48 decibels (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Delay Start: true (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
- End-Of-Cycle Signal: false (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
- Cycle Status Lights: true (Lights on the control panel that indicate which cycle is in use and/or its current status. Know when to unload with a simple glance.)
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
- Filtered Water: true (Internal water filter(s) remove minerals and chemicals from hard water before the wash cycle. Filtered water is less likely to leave mineral deposits or stains, meaning your dishware will look cleaner for longer.)
- Cycle Specifications
- Steam Cleaning: false (Wash cycle that primarily uses steam to loosen food debris and clean fragile dishware without force.)
- Steam Pre-Wash: true (Loosens food debris by creating steam inside the washer before the primary wash cycle, allowing for an easier, gentler clean of dishware.)
- NSF-Certified Sanitization Cycle: true (Meets the National Sanitation Foundation (NSF) standards for performance and cleaning effectiveness. When operated on the sanitizing cycle, an NSF-Certified dishwasher reaches a final rinse temperature of 150⁰ Fahrenheit and achieves a minimum 99.999% percent reduction of bacteria.)
- Rack Features
- Number Of Racks: 2
- Rack Material: Nylon
- Design
- Dishwasher Type: Built-in dishwashers
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Control Type: LED display with touchscreen controls
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Electrical Specification
- Estimated Annual Electricity Use: 279 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 27 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Other
- UPC: 048231013062
Thoroughly clean up to 14 place settings in a single load with this LG LDS5540ST built-in dishwasher that features 5 wash cycles and an NSF Certified sanitary rinse for sparkling results. Semi-integrated SmoothTouch controls simplify use.
How to Prepare for Delivery and Installation
Learn how to get ready for the delivery and installation of your new dishwasher. Walk the path, check your hookups, order new parts, and empty your old dishwasher.
Watch the video ›
- Semi-integrated SmoothTouch controls: Offer a sleek look and easy operation. The LED display provides an easy-to-read design. Child lock helps prevent unintentional or unsupervised use.
- Large-capacity tub: Accommodates up to 14 place settings for efficient use.
- EasyRack Plus System: Features a height-adjustable upper rack, as well as color-coded adjustable tines in the upper and lower rack, to accommodate a variety of dishes and cookware up to 14" tall.
- 3-in-1 detachable cutlery baskets: Provide space for utensils and small items and can be removed to free space inside for more cookware. Stemware holders help keep your glassware in place during the wash cycle.
- 5 wash cycles: Include power scrub, normal, delicate, quick and upper-only to suit a variety of cleaning needs. Time-remaining indicator lets you easily see the progression of a cycle.
- NSF Certified sanitary option: Delivers a high-temperature rinse to help ensure hygienic results. Extra Dry option provides 60 minutes of drying for table-ready dishes, glassware and more. Extra rinse option effectively removes wash aids.
- Up to 19-hour delay-start: Lets you set the dishwasher to start running while you're working, sleeping or running errands.
- Vario Spray system: Alternates water spray between the upper and lower racks for concentrated cleaning power. Hybrid condensing drying system dries dishes efficiently without use of the heating element to help reduce energy consumption.
- Soft-food grinder: Helps eliminate drain-clogging particles. Self-cleaning filter system continuously cleans wash water to remove additional dirt and residue.
- LoDecibel quiet operation: Along with an inverter-controlled Slim Direct Motor runs at just 48dBA, so your kitchen conversations can carry on uninterrupted.
- Uses as little as 5 gallons per cycle: To minimize water use.
Whats Included
- 24" Built-In Dishwasher with Stainless Steel Tub
- Owner's manual
A: The Front Control Dishwasher with Flexible EasyRack™ Plus System, Model # LDS5540ST uses a Hybrid Drying System which effectively dries dishes without the use of a heating element that would increase energy consumption. The Hybrid Drying System relies on the heat that is retained by the dishes and the tub during the wash and rinse cycles to turn the moisture in the tub into humidity. Warm, moist air in the dishwasher is then pulled into a condensing duct in the door by a fan. The air then cools, which causes the humidity to condense. Room temperature air is also drawn into the duct to help the air cool down faster. When this moisture condenses into a liquid, it is drained out. Rinse aid is required to enhance the drying performance. If no rinse aid is used, water may remain on the dishes and the tub. Your inlet water temperature should be a minimum of 120°F (49°C) so you may need to check that your water heater is set appropriately...^IFV
Q: How long is the quick wash cycle?
A: The Quick Cycle takes about 84 minutes. I'll attache a chart from the manual for you, page 9 (see below). Thank you. We appreciate your feedback, please give us a “thumbs up” if this answer is helpful to you; and please let us know if we can assist you with anything else. Have a lovely weekend!
Q: No difference in height of tines in the front and back
A: You might try using pieces of the 1/4" tubing made for air lines on fish tanks (clear) or the black tubing made for drip irrigation. Heat the end in hot water if it's hard to push onto the end of the tines. Then to stiffen it (so it doesn't bend over from the hot water when running) insert pieces of bamboo skewers or coat hanger wire cut to size, and seal the ends with silicone.
Q: were can i get the operating instructions
A: http://www.lg.com/us/support-product/lg-LDS5540ST
A: Yes, it's stainless and yes, it shows fingerprints and watermarks. You do have to wipe it down to keep it looking nice.
Q: What temperature does the NSF cycle get to?
A: If you're asking about the sanitary rinse, the ma i am says 161° F
Q: It appears in the picture, that there are no tines on the top rack. Is this correct?
A: Tines are there...you can fold them down when you don't need them.
Q: is installation of dishwasher included in price?
A: No it is not included but for me it was worth the money
