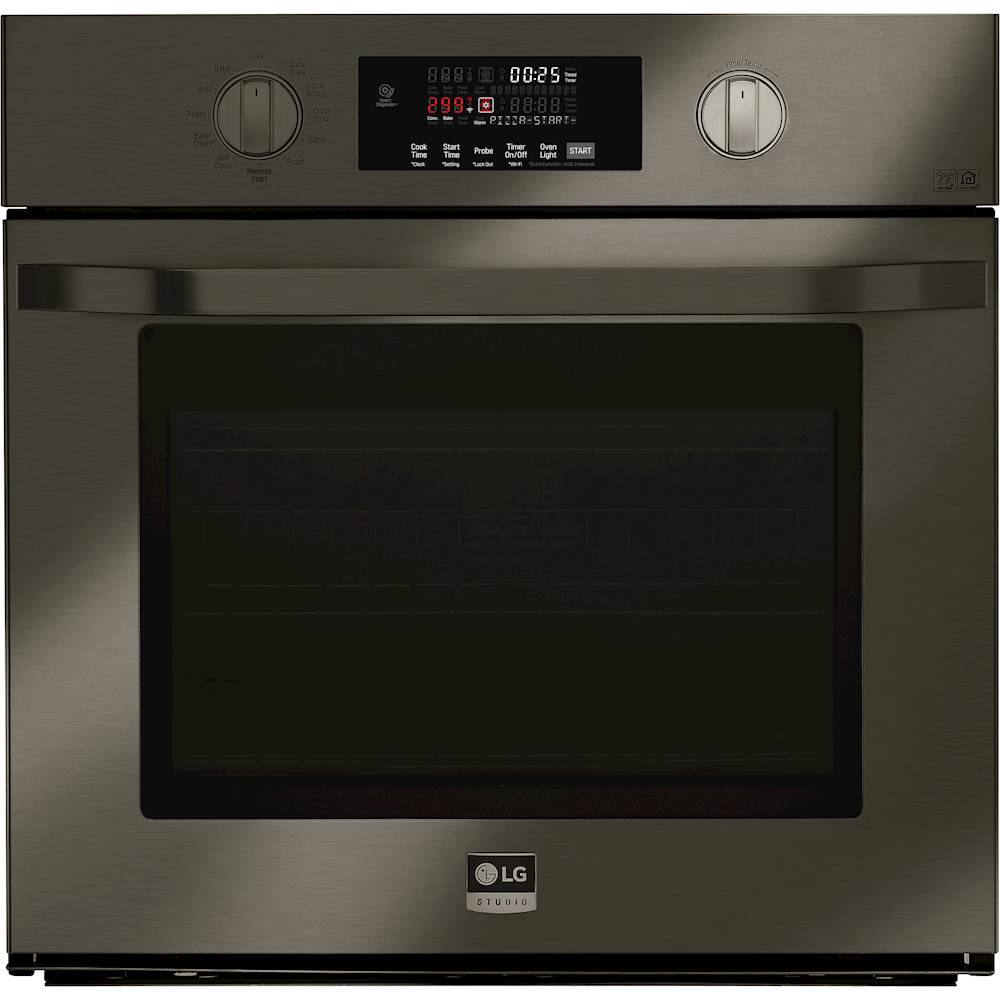

LG - STUDIO 30" Built-In Single Electric Convection Wall Oven - Black Stainless Steel
- Key Specs
- Product Height: 29 5/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 2/5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth With Handle: 24 2/5 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
- Color Finish: Black stainless steel
- General
- Product Name: STUDIO 30" Built-In Single Electric Convection Wall Oven
- Brand: LG
- Model Number: LSWS300BD
- Vendor Collection: LG STUDIO (Part of a line of different product types, like kitchen appliances.)
- Color: Black Stainless Steel
- Color Finish: Black stainless steel
- Dimensions
- Product Height: 29 5/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 2/5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Depth With Handle: 24 2/5 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Product Weight: 156.97 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 29 5/16 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 28 1/2 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 23 1/2 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Oven Capacity: 4.7 cubic feet (Standard ovens typically have capacities of about 5 cubic feet, while wall ovens typically have about 3 cubic feet of space.)
- Features
- Oven Type: Single wall oven
- Oven Power Source: Electric
- Fingerprint Resistant: true
- Auto Shut-Off: false (Feature automatically turns off the product.)
- Control Type: Touchscreen
- Clock Display: true
- Oven Light: true
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Design
- Display Type: LED
- Functions
- Sabbath Mode: false (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Delay Clean Option: true
- Hidden Bake Element: true (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Keep Warm Setting: true
- Variable Broil: true (This feature allows you to change the temperature of the broil function, which provides more versatility and control when preparing your favorite foods.)
- Timer: true
- Time Bake: true (Allows you to program the appliance to run at a pre-determined time and automatically turn off when baking time is finished. Plan for mealtime or entertaining by setting your oven to start baking at a convenient time and reduce the worry of overcooking your food with the automatic shut off feature.)
- Rapid Preheat: false
- Dehydration Settings: false (This function sets the oven at a low temperature, typically under 200 degrees Fahrenheit, for an extended period of time. During this time, warm air circulates throughout the oven to draw moisture out of foods.)
- Bake Element: 2500 watts
- Broil Element: 1500 watts
- Oven Features
- Oven Convection: true (A cooking process that consistently circulates heated air to quickly and evenly cook food.)
- Oven Cleaning Method: Self-High Heat Cleaning, Self-Steam Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Oven Window: true
- Number of Oven Racks: 3
- Number of Rack Positions: 5
- Electrical Specification
- Amperage: 17.3 amperes (Strength of electrical current.)
- Voltage: 230 volts (Amount of power needed to support an electrical current.)
- Wattage: 4100 watts (Measurement of electrical power.)
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Certifications Listings & Approvals
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Chemical Disclosures: This product contains PFAS. For more information about PFAS chemicals in this product, visit https://www.lg.com/us/cookware-chemical-compliance-information. Este producto contiene PFAS. Para más información sobre químicas PFAS en este producto, visite https://www.lg.com/us/cookware-chemical-compliance-information. (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
- Other
- UPC: 048232338652
The extraordinary performance and design of this LG STUDIO single built-in wall oven make it a standout - yet it still integrates seamlessly into your kitchen. From the black stainless steel finish and pro-style knobs to the EasyClean brilliant blue interior, every detail has been crafted with your style in mind. With LG's 4-Mode True Convection system you can be confident every dish will come out with extraordinary precision.
- LG black stainless steel: LG black stainless steel elevates your kitchen with a satin-smooth, warm and sophisticated finish unlike any other.
- Fingerprint & smudge resistant, easy-to-clean finish: Distinctively beautiful, with an easy-care finish to ensure it stays that way.
- Timeless, pro-style design: Every details draw attention with timeless sophistication both inside and out.
- Large capacity (4.7 cu ft): Large enough to handle all your family's cooking needs.
- LG SmartThinQ technology: Cooking your ideal meal has never been easier with help from LG STUDIO wall ovens with SmartThinQ technology.
- WiFi capable with remote start: Monitor your oven or cooktop anytime, anywhere.
- LG exclusive 4-mode True Convection: Pre-heat faster for even cooking results on every rack.
- Gliding Rack system: The adjustable full extension rack glides out effortlessly and extends over the open oven door for easy access to food. Now you can baste and check on food from a safer distance.
- 2-Year Limited Warranty on All Parts and Labor: All LG Studio appliances are backed by LG's exclusive 2-year limited warranty, so you can confidently enjoy this appliance for years to come.
Whats Included
- 2 x heavy duty rack
- Broiler pan
- Gliding rack
- Griddle
- LG STUDIO 29.8" Built-In Single Electric Convection Wall Oven
Product Manuals
Q: where does the electric connect to the unit
A: The LG - STUDIO 30" Built-In Single Electric Convection Wall Oven - Stainless Steel, Model # LSWS307ST must be connected to an individual, properly grounded branch circuit, protected by a 30 Amp circuit breaker or fuse with a #10 AWG wire gauge at least. The flexible conduit must be connected to a junction box behind the wall oven that must be recessed and be a minimum of 22" from the bottom of the range oven...^IFV
A: Hello there. We thank you for reaching out. The Self Cleaning feature takes more time but can be used to remove heavy both of soils that are difficult to clean such as sugar based soils. LG's Self-Clean cycle gives you the ability to thoroughly clean your oven cavity keeping your oven looking shiny and new. For heavy built-up soils, especially in those hard-to-reach areas are for a thorough cleaning every 6 months. Self-Clean uses high temperatures during a 3 to 5 hour cycle to burn the soils to ashes. `Jai.
Q: Does the finish on the STUDIO series match other LG non-STUDIO appliances in stainless steel?
A: The Stainless Steel on the LG STUDIO 30" 4.7 cu. ft. Smart Wi-Fi Enabled Built-In Single Electric Convection Wall Oven - Stainless Steel, Model # LSWS307ST will match the Stainless Steel and PrintProof™ Stainless Steel on all other LG Appliances...^IFV
Q: does it have a bread proofing setting
A: The LG STUDIO 30" Built-In Smart Wi-Fi Enabled Single Electric Convection Wall Oven - Stainless Steel, Model # LSWS307ST has a Proof feature that maintains a warm oven for rising yeast leavened products before baking.. Rack position 2 or 3 should be used for proofing. Proofing does not operate when the oven is above 125 °F and it is normal for the fan to operate during the Proof function...^IFV
A: Built-In Wall Oven LSWS307ST does not have a backlit control panel. ^Daphane
A: Using the oven with the door open may damage the oven knobs and display. ^Daphane
Q: Does it have Delay Start with a timed feature? Is it available in Black, NOT Black SS?
A: Yes, this unit has a delayed start timer. The automatic timer of the DELAYED TIMED COOK function turns the oven ON and OFF at the time you select. This feature can only be used with the BAKE, ROAST, CONV. BAKE, CONV. ROAST, CRISP CONV. and SELF CLEAN modes. No, this unit is not available in Black. ^Daphane
A: The specification do not provide a height dimension for the back of the oven. Perhaps the installation manual can offers more detail, https://files.bbystatic.com/paEl30S4KL8Na%2Fo86wLbBQ%3D%3D/513351fb-9dc7-473e-8a5c-7f726ff4c3b7.pdf. For further assistance, please reach out to our support team via private message on Facebook @LGUSSupport and use #VOC in your first message to our social media support team or call at 800-243-0000. ^Daphane
