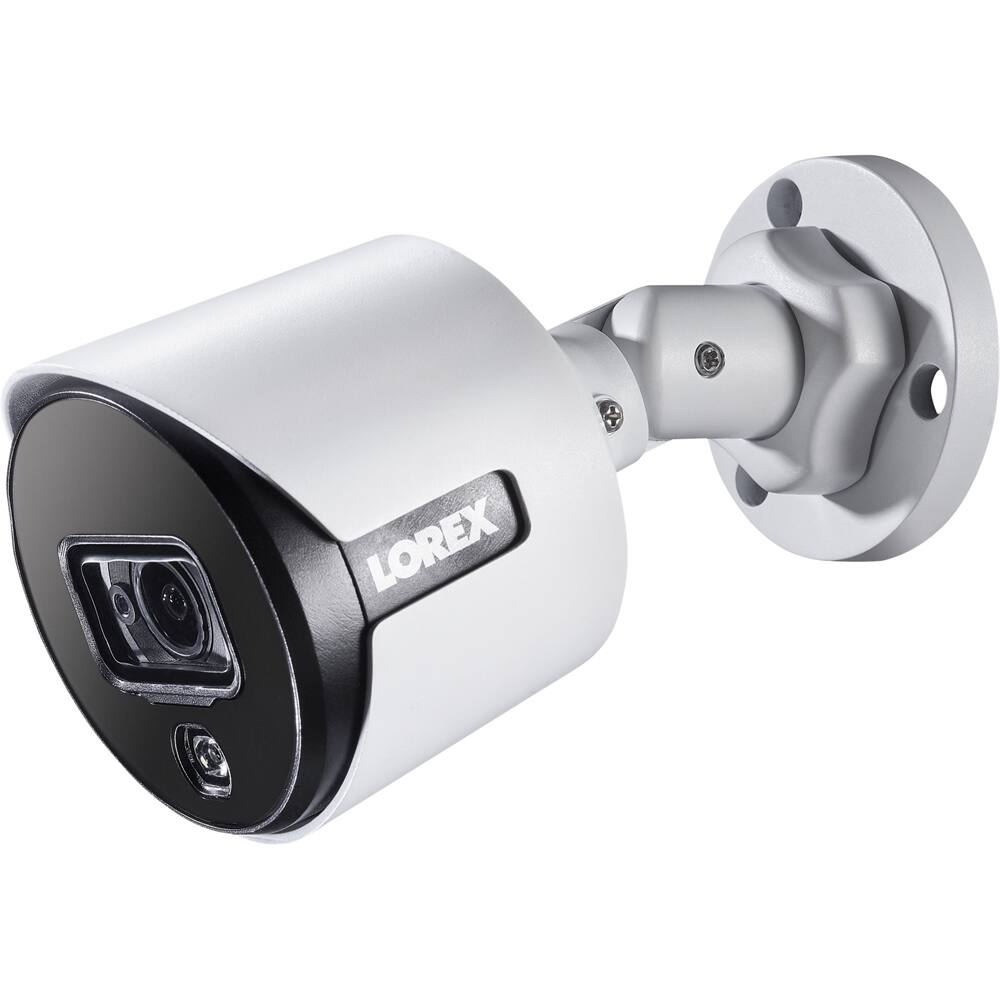

Lorex - Indoor/Outdoor 4K UHD Wired Security Camera

Model: LBV8543XB
SKU: 6250940
This item is no longer available in new condition. See similar items below
  • Key Specs
    • Video Camera Resolution: 4K (2160p) (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
    • Field Of View: 87 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
    • Night Vision: true
    • Number Of Cameras Included: 1
    • Maximum Operating Temperature: 140 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
    • Storage Type: DVR
    • Indoor Or Outdoor Use: Indoor and outdoor (Indicates the appropriate environment product was designed to be used in.)
    • Minimum Operating Temperature: -22 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
  • General
    • Product Name: Indoor/Outdoor 4K UHD Wired Security Camera
    • Brand: Lorex
    • Model Number: LBV8543XB
  • Camera
    • Video Camera Resolution: 4K (2160p) (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
    • Camera Resolution: 3840 x 2160 (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
    • Effective Pixels: 8 megapixels (The actual number of pixels which make up the viewable image.)
    • Field Of View: 87 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
    • Night Vision: true
    • Night Vision Distance: 150 feet
    • Number Of Cameras Included: 1
    • Frame Rate: 15 frames per second (The frequency at which consecutive images can be captured. The higher the frame rate, the more detail that can be captured.)
    • Day/Night Mode: true (Captures images/video with optimal clarity by automatically adjusting settings to various light levels.)
    • IP Camera: false (An Internet Protocol (IP) camera is able to record and display image/video data via the internet, without need for a local recording device.)
    • Minimum Required Illumination: 0 lux (Refers to the minimum amount of light needed to view objects. Generally, the lower the number, the better the camera can detect objects in little to no light.)
    • Number of IR LEDs: 1 (Quantity of infrared (IR) LED lights for emitting IR light and allowing the camera to detect objects in low light.)
    • Camera Iris: Automatic (The iris is the opening on a camera that controls how much light reaches its image sensor, which in turn affects image/video clarity. Fixed and manual irises are generally suited for locations with consistent levels of light. Automatic and "P" (precise) irises automatically adjust in response to changing levels of light and are suited for a wider variety of environments. "P" irises feature additional capabilities for improving footage clarity.)
    • Image Sensor Type: CMOS (CCD and CMOS are the two main technologies used in image sensors. CCD, the older of the two types, turns analog light signals into digital pixels. This conversion happens without distortion, resulting in high-quality images. Newer CMOS sensors use transistors at each pixel to move electrical charges. CMOS sensors are typically less expensive, but also require more light to create distortion-free images.)
    • Infrared Cut Off Filter: true (Often referred to as an IR or heat-absorbing filter, this camera feature is designed to block infrared light during the day to produce optimally lit images, while still allowing for night vision capabilities in low light.)
    • Focal Length Control: Fixed focal (Fixed cameras do not allow for adjustments to the focal length, and typically provide a wide angle view. Vari-focal cameras allow manual adjustments, while motorized zoom cameras can be adjusted from either the camera or control center.)
  • Power
    • Voltage: 12 volts (Amount of power needed to support an electrical current.)
  • Compatibility
    • App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
    • Compatibility: Select Lorex HD DVR recorders
    • Brand Compatibility: Lorex
    • Voice Assistant Built-in: Not Applicable (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
  • Connectivity
    • Camera Connectivity: Wired (Security system cameras can be set up in several ways. Wired cameras require cables for power and footage transmission, while wire-free cameras don't need cables for either. Wireless cameras still require cables for receiving power but are able to transmit footage via a wireless network.)
  • Performance
    • Maximum Operating Temperature: 140 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
    • Indoor Or Outdoor Use: Indoor and outdoor (Indicates the appropriate environment product was designed to be used in.)
    • Minimum Operating Temperature: -22 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
  • Storage
    • Storage Type: DVR
  • Features
    • 3-Axis Adjustable: true
    • Mount Type: Ceiling mount, Wall mount
  • Dimension
    • Product Height: 3.2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 3.2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 5.9 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • Product Weight: 0.65 pounds (The out of box weight of the item.)
  • Sensor
    • Sensors: Motion sensor (Detects stimuli such as heat, light, sound, motion, or pressure and responds accordingly by operating a control or initiating a function of the device.)
  • Display
    • Color Display: true
  • Included
    • Cable(s) Included: true
  • Warranty
    • Manufacturer's Warranty - Parts: 1 year
    • Manufacturer's Warranty - Labor: 1 year
  • Other
    • UPC: 695529017136

Protect any indoor or outdoor space with this convenient Lorex security camera. Its 4K Ultra HD technology captures clear, vivid visuals, and its motion-activated LED warning light deters possible intruders. This Lorex security camera has a night vision range of up to 150 feet to provide protection in all light conditions.

Choosing a Home Security Solution

  • Color Night Vision™: Smart IR imaging technology and Clear Night Noise Reduction provide high low light performance and the integrated infrared cut filter switches on and off between day and night, ensuring accurate color reproduction in all lighting conditions.
  • Active deterrence: Motion-activated customizable LED warning light warns off would-be intruders. Remote-triggered siren helps deter crime.
  • Capture everything in 4K UHD: Get the clear visual evidence possible with 4K Ultra HD, 4 times the detail of 1080p.
  • Infrared night vision lets you see in the dark: Keep an eye on things up to 150' away in ambient lighting and 100' in total darkness.
  • 87° horizontal field of view: Captures a wide area of your property for high-level security at all times.
  • Works with select Lorex HD DVR recorders: This camera is compatible with select Lorex HD DVR recorders (not included). For a full list of compatible recorders, visit www.lorex.com/compatibility.
  • Simple wired connectivity: Includes 60' UL/CM-rated in-wall video/power cable for simple installation.
  • Mounting kit: Provides versatile ceiling or wall mounting options.
  • IP67-rated weatherproof design: As well as vandal-resistant construction with cable pass-through bracket allow use outdoors in temperatures from -22° F to 140° F.
Whats Included
  • 60' UL/CM-rated BNC/DC extension cable
  • Lorex Indoor/Outdoor 4K UHD Wired Security Camera
  • Mounting kit
  • Owner's Manual
  • Power adapter

Q: When buying a single camera is 60 Ft. cable provided?

A: Yes, the cable and plug are included.

Q: Is there any mechanical zoom cameras out there that have the bnc connector that will work with the mpx dvr

A: Thank you for submitting your question about this product. Yes please look for the following model numbers for the cameras: LBV2723B LEV2724B The Lorex Customer Service Team

Q: does this camera operate without wifi how does it record

A: No wifi is needed. To record you have a 4K DVR if you bought the set. To save video you can plug in an SD card or flash drive and record and save it to the flash drive.
