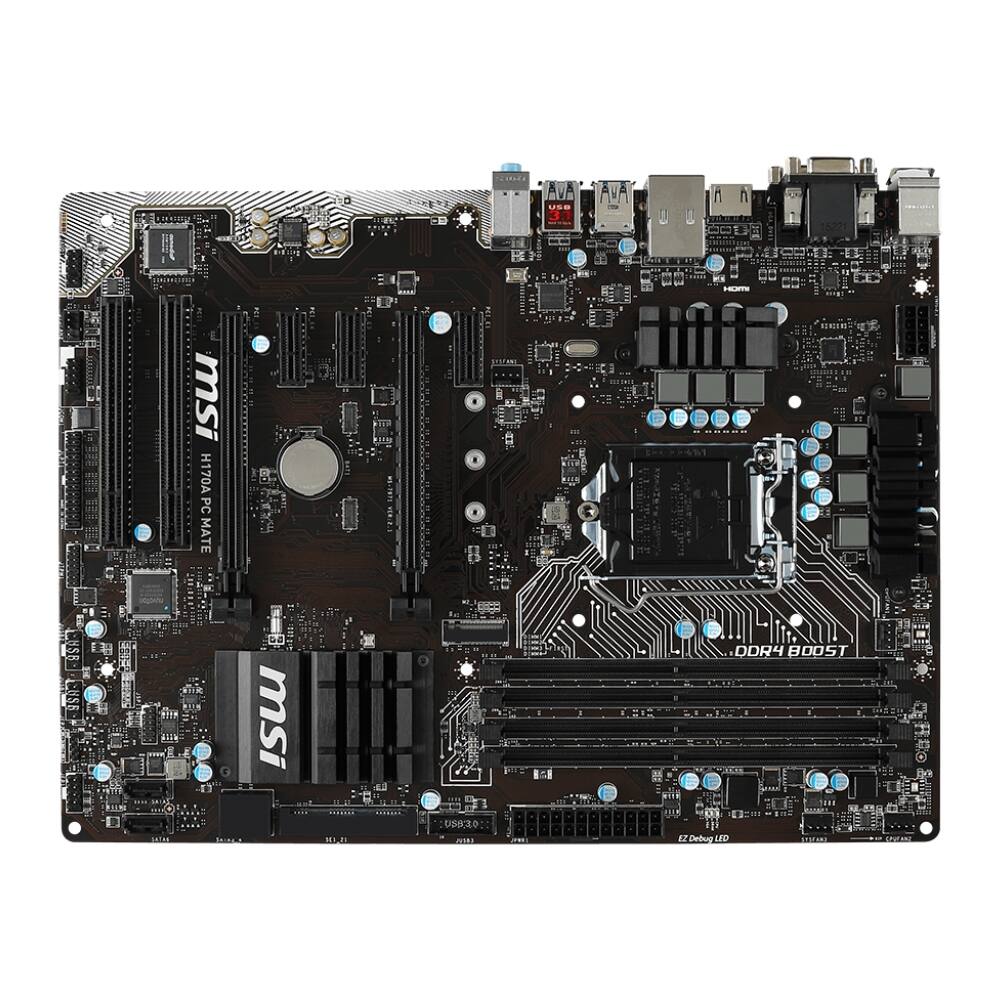

MSI - H170A PC MATE ATX Motherboard (Socket 1151) - Multi
Model: H170APCMATE
SKU: 4832501
This item is no longer available in new condition. See similar items below
- Key Specs
- Chipset: Intel H170
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1151 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 64 gigabytes
- General
- Product Name: H170A PC MATE ATX Motherboard (Socket 1151)
- Brand: MSI
- Model Number: H170APCMATE
- Compatibility
- Chipset: Intel H170
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1151 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel
- Slot
- Number Of Memory Slots: 4
- Dimensions
- Product Length: 8.9 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 8.9 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Memory
- Maximum Memory Supported: 64 gigabytes
- Memory Slot Type: 288-pin DIMM
- Other
- UPC: 824142120156
This MSI motherboard incorporates the latest DDR4 and Intel processor technologies, which provide unprecedented gaming performance. The motherboard's Audio Boost 3 brings enhanced sounds, so you can clearly hear every blast, tackle and jump. Put this hotkey-compatible MSI motherboard in your computer and start playing like you never have before.
- Compatible with 6th Gen Intel Core / Pentium / Celeron processors: In an LGA 1151 socket.
- 4 DDR4 sockets: Support up to 64GB of system memory at speed up to 2133 MHz.
- Supports 7.1-Channel High Definition Audio: Realtek ALC887 Codec for an excellent sonic performance.
- Realtek RTL8111H Gigabit LAN controller: For easy connection to the Internet.
- Peripheral interfaces: Include 8 USB 3.0 ports (2 internal, 6 rear), 4 USB 2.0 ports (internal), 1 HDMI, 1 DVI-D, 1 VGA and 2 PS/2 (mouse and keyboard).
- Expansion capabilities: Include 2 PCI Express 3.0 x16, 3 PCI Express 3.0 x1 and 2 PCI connectors.
Whats Included
- Motherboard
- Drivers & Utilities Disc
- Motherboard User Guide
- I/O Shield
- SATA Cable x2
