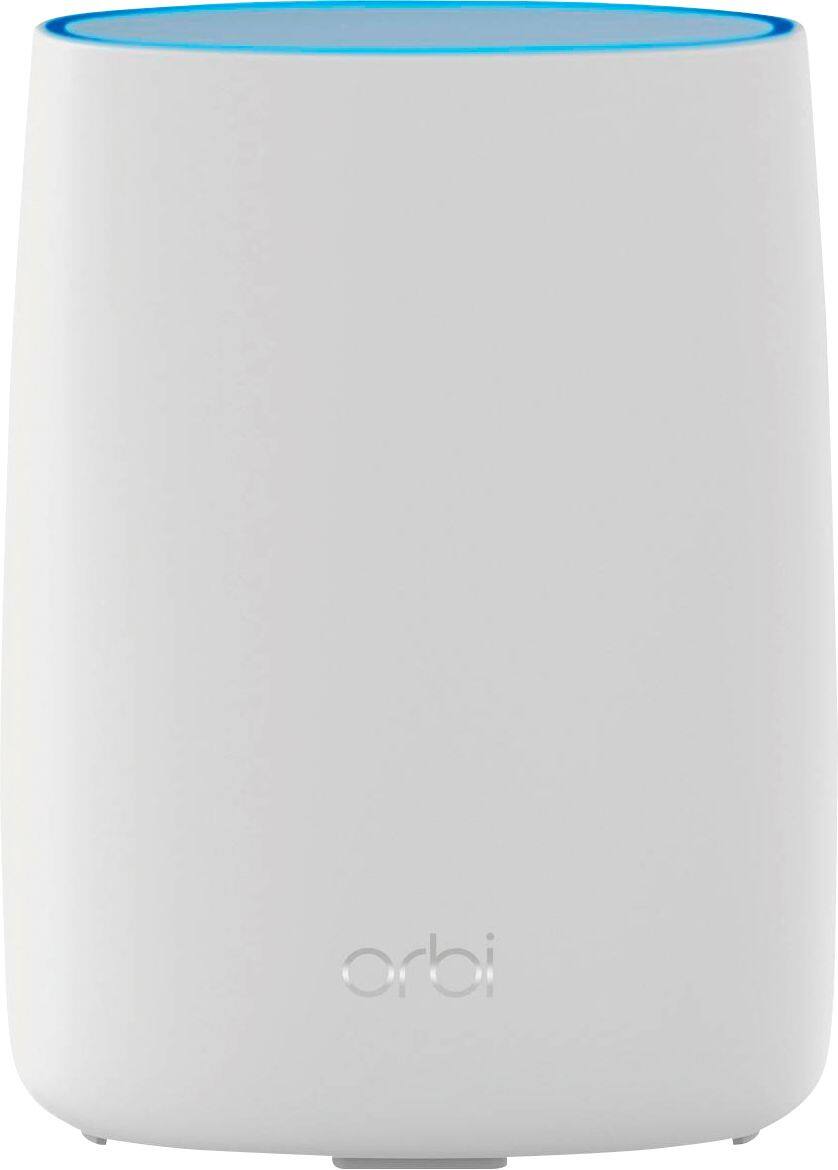

NETGEAR - Orbi AC2200 Tri-Band Mesh 4G LTE Wi-Fi Router
Model: LBR20-100NAS
SKU: 6445368
This item is no longer available in new condition. See similar items below
- Key Specs
- Wi-Fi Range: 2000 square feet (The device will provide a Wi-Fi connection to this approximate area.)
- Number Of LAN Ports: 2 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- Wi-Fi Speed: 2.2 gigabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
- Works With: Amazon Alexa, Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
- General
- Product Name: Orbi AC2200 Tri-Band Mesh 4G LTE Wi-Fi Router
- Brand: NETGEAR
- Model Number: LBR20-100NAS
- Security
- Data Encryption: true
- Encryption Type: WPA3 (The security protocols or certification programs that protect the Wi-Fi network.)
- Firewall Type: NAT, SPI (The method the firewall uses to filter and process data to increase network security, primarily by blocking malicious traffic requests while allowing legitimate traffic through.)
- Security Features: NETGEAR Armor, Guest WiFi network, 128-bit AES encryption with PSK
- Parental Controls: true (Allows user to block unwanted content, signals, channels, networks, etc. from being received or accessed.)
- Network
- Band Technology: Tri (Refers to the number of frequency bands used to wirelessly transmit an internet signal. For example, dual-band devices may use one 2.4 and one 5 GHz band, while tri-band devices may use one 2.4 and two 5 GHz bands. Multiple bands also provide more flexibility for designating connected devices to specific band use.)
- Ethernet Standard: 10/100/1000 (Each standard is a variation of the IEEE 802.3 set of computer networking technologies known as Ethernet. New versions evolved to include higher bandwidth, different physical media, and other new and improved features. Standards are often denoted by speeds (in Megabits per second). For example, a 10/100/1000 Ethernet port transmits at 10 Mbps, 100 Mbps, and 1000 Mbps (1 Gbps).)
- Frequency Band: 2.4 GHz, 5.0 GHz (Bands may be grouped into categories such as low- and high-band VHF (Very High Frequency), low- and high-band UHF (Ultra High Frequency), or certain frequency channels (measured in MHz or GHz). Generally, higher frequencies transmit information faster but have shorter range than lower frequencies.)
- Wireless Networking Standard: Wi-Fi 5 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: AC, AX, N (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Wi-Fi Range: 2000 square feet (The device will provide a Wi-Fi connection to this approximate area.)
- Input/Output Technology: MU-MIMO (Multi-user Multiple-Input Multiple Output) (Generally, multiple-input multiple-output communication technologies allow for more signals to be transmitted at a single time, which can improve the device's overall performance.)
- Number of 2.4Ghz Streams: 1 (A router's streams are like lanes on a highway. The more streams a router has, the less traffic congestion. Because the 2.4 GHz band is used to transmit wireless signals to a wide variety of devices, there is often high amounts of traffic on that stream. But with multiple streams, each can be designated to a specific device for optimal performance. For example, if one 2.4 GHz stream is assigned to one device, such as a desktop computer, it leaves the remaining streams open for guest users, devices that use more data, or devices with specific band compatibility.)
- Number of 5.0Ghz Streams: 2 (A router's streams are like lanes on a highway. The more streams a router has, the less traffic congestion. The 5.0 GHz band provides high speed, short-range data transmission and typically has less traffic than the 2.4 GHz band. With multiple streams, each can be designated to a specific device for optimal performance. For example, if one 5.0 GHz stream is assigned to one device, such as a streaming media player, it leaves the remaining streams open for guest users, devices that need less data, or devices with specific band compatibility.)
- Ethernet Switch: true (Connects multiple devices to expand the Local Area Network (LAN).)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Features
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- App Name: Orbi app
- Beamforming: true (A signal processing technique that enables a router to focus a Wi-Fi signal in a specific direction. The router determines where a connected device in the network is located and projects a stronger signal in that specific direction. This can result in faster and higher quality data transfer as well as reduced signal interference.)
- Integrated Modem: false
- Wireless: true
- Ports
- Number Of WAN Ports: 1 (Number of devices able to be connected to the Wide Area Network (WAN). This type of port may simply be labeled "Internet," and it allows the device to share its internet connection with all devices connected to it via LAN ports.)
- Port Type(s): RJ-45 (USB 2.0 connects external drives, gaming controllers, smartphones, MP3 players and other accessories.USB 3.0 transfers data faster than USB 2.0, but only when used with USB 3.0 devices.USB Type-C provides fast speeds and versatile power, featuring connectors with identical ends that plug in upside down or right side up. Adapters allow for video as well as backward compatibility.Thunderbolt provides ultra-high bandwidth for fast data transfer between devices featuring a Thunderbolt or MiniDisplayPort connection.HDMI allows you to connect a projector or display HD media on your HDTV or monitor.Media card slots allow you to transfer photos from your digital camera or camcorder.)
- Number Of LAN Ports: 2 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- Speed
- Wired Speed: 1000 megabits per second (The maximum rate at which data is transferred between a network device and router using an Ethernet cable.)
- Wi-Fi Speed: 2.2 gigabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
- Gigabit Ethernet Speed: true (Supports the gigabit Ethernet networking standard, which has a data rate of at least one gigabit per second, or 1,000 Mbps.)
- Compatibility
- Works With: Amazon Alexa, Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
- Dimensions
- Product Height: 3.1 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 8.9 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 6.7 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 1.72 pounds (The out of box weight of the item.)
- Warranty
- Manufacturer's Warranty - Parts: 1 year
- Manufacturer's Warranty - Labor: 1 year
- Other
- UPC: 606449148015
Stream your favorite TV shows with this NETGEAR Orbi mesh Wi-Fi router. A Gigabit Ethernet WAN port lets you tap wired networks for convenient wireless Internet connectivity, and a built-in 4G LTE modem uses a cellular SIM card to keep your home connected during cable Internet outages. Compatibility with the Orbi app and voice control systems enables hassle-free configuration. This NETGEAR Orbi mesh Wi-Fi router uses Beamforming tech to cover up to 2000 sq. ft., making it a good option for large homes.
- Circle smart parental controls: A smart way for families to manage content and time online on any connected device.
- Quick and easy setup with Orbi mobile app: Use the Orbi app to set up whole-home Wi-Fi in minutes. The app enables you to share network credentials, see connected device list, speed test and more.
- Two Ethernet ports: Two Gigabit Ethernet ports (1 WAN and 1 LAN) keep your wired devices connected.
- Beamforming technology: Increases the range and performance for devices that operate in 2.4 and 5GHz bands.
- MU-MIMO: Gives every compatible device its own dedicated full-speed Wi-Fi connection so that multiple devices can connect at the same time without slowing down the network.
- Tri-band 2.4GHz and 5GHz wireless frequencies (802.11a/b/g/n/ac compliant): Three dedicated Wi-Fi bands let you optimize speeds for all Wi-Fi devices and ensure fast, efficient operation.
- Up to 2200 Mbps data transfer rates with wireless-AC technology: Combined speeds of up to 2.2 Gbps (867, 867, and 400 Mbps) for even faster performance.
- Use 4G LTE as your primary Internet connection: It lets you use 4G LTE cellular service for your home Internet connection when your existing Internet service fails, and is compatible with most major LTE cellular networks.*
- Expandable mesh Wi-Fi: As your coverage needs grow, you can easily add select compatible Orbi AC satellites to create a high-speed mesh Wi-Fi system.
- Works with Amazon Alexa and Google Assistant: Control your NETGEAR Wi-Fi network with simple voice commands.
- NETGEAR Armor: Guard your home network and connected devices with advanced cyber threat protection.
- Modern security standard: Supports WPA3 with quality Wi-Fi security protocol.
- Guest Wi-Fi network: Provide Internet access to friends and family without sharing your personal network password.
- 128-bit AES encryption with PSK: Protects your network against hackers and eavesdroppers.
- Wireless-N technology: Uses the MIMO smart antenna design to deliver improved range while eliminating drops and dead zones.
Whats Included
- NETGEAR Orbi AC2200 Tri-Band Mesh 4G LTE Wi-Fi Router
- 2m Ethernet cable
- 12V/2.5A power adapter
- Third party SIM card and activation instructions
- Owner's manual
