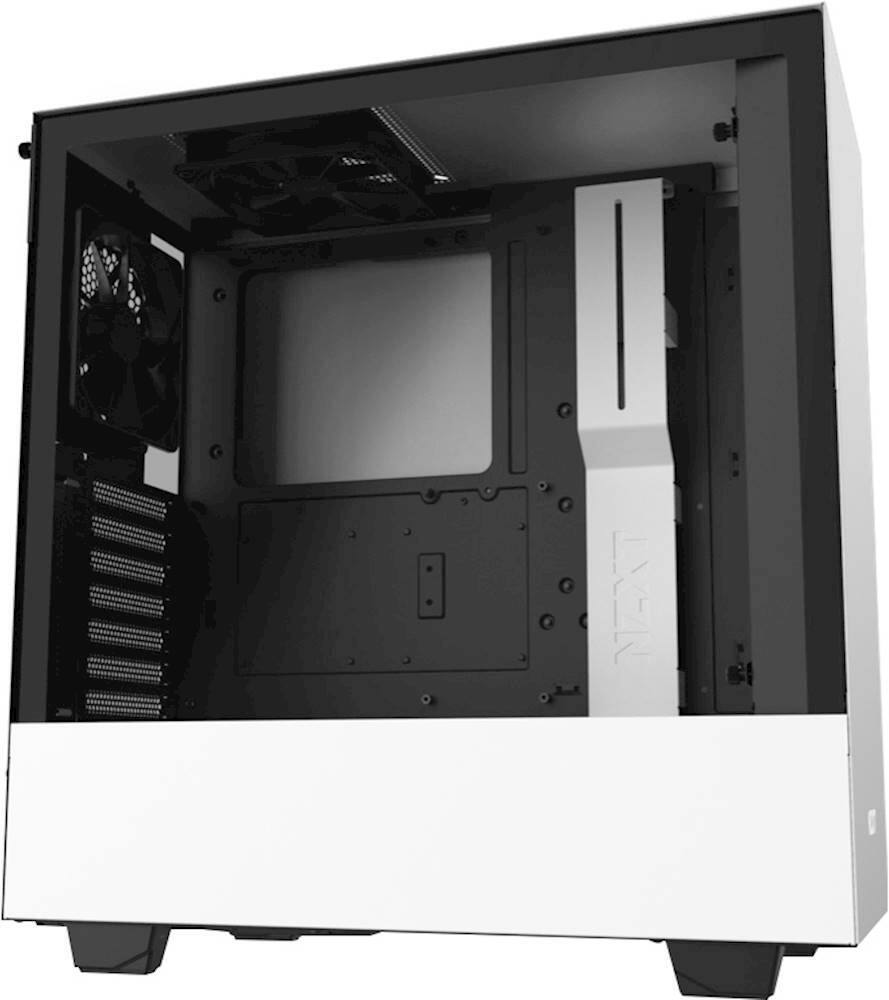

NZXT - H510 Compact ATX Mid-Tower Case with Tempered Glass - Matte White

Name: NZXT - H510 Compact ATX Mid-Tower Case with Tempered Glass - Matte White
Brand: NZXT
SKU: 6366008
Rating: 4.6 (1656 reviews)

Model: CA-H510B-W1

SKU: 6366008

This item is no longer available in new condition. See similar items below

Key Specs
- Motherboard Form Factor: ATX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum GPU Length: 381 millimeters
- Product Height: 18.1 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 8.3 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 16.9 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Window Panel(s): Side
- Case Material: Other
General
- Product Name: H510 Compact ATX Mid-Tower Case with Tempered Glass
- Brand: NZXT
- Case Material: Other
- Model Number: CA-H510B-W1
Compatibility
- Motherboard Form Factor: ATX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum GPU Length: 381 millimeters
- Number of Expansion Slots: 7
Ports
- USB Port Location: Front
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Microphone Input: true (The device features an input for connecting an external microphone.)
Bays
- Number Of Internal 2.5" Bays: 3
- Number Of Internal 3.5" Bays: 3
Dimensions
- Product Height: 18.1 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 8.3 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 16.9 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 232.8 ounces (The out of box weight of the item.)
Features
- Enclosure Type: Mid tower
- Window Panel(s): Side
Cooling
- Maximum CPU Cooler Height: 165 millimeters
- Cooling Support: Water cooling ready
- Radiator Support: Yes
Other
- UPC: 815671014764

Build a small-footprint PC without sacrificing on features using this white NZXT compact mid-tower computer case. The cable management system includes preinstalled channels for seamless, intuitive routing, while the removable radiator mounting brackets offer additional customization options. This NZXT compact mid-tower computer case features a front-facing USB-C port for connecting smartphones and external storage devices easily.

6 drive bays: Include 3 internal 2.5" and 3 internal 3.5" drive bays for installing a variety of components.
Front-panel ports: Include 1 USB 3.1 Gen 1, 1 USB 3.1 Gen 2 and 1 headphone/microphone jacks for installing peripherals.
Tempered glass side panel: Offers an unobstructed view of the case's contents.
2 cooling fans: Include 1 rear 120mm and 1 top 120mm fans. Two 120/140mm front-panel fan mounts allow easy enhancements.
Front and PSU fan filters: Help maintain a dust-free interior.
7 expansion slots: For adding graphics cards and other components.
Enhanced cable management: Patented cable routing kit with pre-installed channels and straps makes wiring easy and intuitive.
Water cooling support: Removable bracket designed for radiators up to 240mm simplifies the installation of either closed-loop or custom-loop water cooling.
Fits ATX, micro ATX and mini ITX motherboards: So you can easily begin building a custom computer.

Whats Included

NZXT H510 Compact ATX Mid-Tower Case with Tempered Glass

Q: How many case fans installed

A: This item have 2 case fans.

Q: Will my grandson be able Fort night on this computer?

A: This is simply the case or enclosure for a computer. It has no hardware installed. You would need to furnish your own motherboard, power supply, CPU, RAM, etc.

Q: Can you fit any power supply in this case or is there a maximum it can take?

A: I'm sure there's a limit, but I fit an ax1200i in it, which is a very large power supply.

Q: How many extra fan mounts are there after the two that it already comes with?

A: There are 2 more mounts on the front. Can fit 120 or 140 mm fans. It's a frame that can be removed to mount the fans easier since there is no removable front panel on this case.

Q: I see that there is only one USB port on the front. Is that the only port that you can plug your peripherals into? Or are there more USB ports somewhere else on the case. I have a keyboard and mouse that requires two USB ports. Can I plug both into case?

A: There is, sadly, only one USB port on the front of the case and it comes with no others. Once you build your PC, your motherboard should contain 4-6 more USB ports for you to plug all of your external devices into.

Q: Can It fit a MSI - MPG X570 GAMING EDGE WIFI (Socket AM4) USB-C Gen2 AMD Motherboard and a Seagate - Barracuda 2TB Internal SATA Hard Drive

A: Yes and easy way to check is to find the size of your motherboard for example Atx, Micro Atx, Mini Itx. Then find the size of your case this particular one is an atx midtower meaning it will fit motherboard sizes Atx and lower.

Q: Does this case come with the PCI Express adapter from the mobo to the graphics card so that you can mount the vertically in that case?

A: I do not believe this case includes that

Q: How far apart are the legs? I want to put this on a monitor/desktop riser that is only 15.7" deep. Will this fit? Or will the feet slip off one edge?

A: The legs are approximately 10 inches apart.

Customers are saying

Customers appreciate the H510 Compact ATX Mid-Tower Case's excellent cable management, ease of use, and sleek design, making it especially suitable for first-time builders. Many also praise its size and affordability, finding it to be a great value. However, some users note that airflow could be improved, and there have been some minor issues reported with screws. The tempered glass and inclusion of fans are also frequently cited as positive aspects.

This summary was generated by AI based on customer reviews.

Customer Images

The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.

Rated 3 out of 5 stars
Decent case for non-gamers
Airflow. Airflow is absolutely key to a successful build if you plan to push it even the slightest which is why I cannot recommend this case for anyone that actually games. I made the mistake of ordering online, thinking I chose the "mesh front" variant. Worst part is I didn't open the box until past the return date otherwise I would've returned this one for the other model. I have a pretty budget-friendly build and having run it for over 5+ months and feel I can properly share my views as I've used it enough to do so. Cable management comes pretty easily with the many areas for zip tying cables neatly in place. Multiple cable routing options which support a number of motherboards. Not to mention the case itself is a quality piece. I did have a slight issue regarding the RGB fan cables for my NZXT Kraken X53 but have to say that their customer service is absolutely amazing. I have to say, they really do listen to their customers. I just wish I could improve airflow with this case without permanently modifying anything. My next step is to add two additional fans on the other side of my radiator but that can create too much positive pressure which I'm afraid of.
Posted 2 years ago by Kwikvette
Rated 5 out of 5 stars
Nice roomy case.
I actually like this case. Nothing fancy but the tempered glass side is nice. Going to add some Corsair rgb fans in the future. This was a quick throw together for a Ryzen 5 5000 series. The stock fans light up but are single color. The cable management system is very nice.
This review is from NZXT - H510 Compact ATX Mid-Tower Case with Tempered Glass - Matte Black
Posted 2 years ago by myoder301
Rated 5 out of 5 stars
Great Budget Case
Perfect for what I needed it for. Built a new PC for work and needed something cost effective, not too large, and decent cooling. This case checked all the boxes for me. I'm using a 240mm AIO mounted to the front with an i7-11700k and the temps never get above 35 degrees. Please keep in mind I'm using this for Adobe Suite tasks and don't game so I'm not stressing the CPU that much to begin with. But I do feel there are some limitations to cooling if you are planning on air cooling. PROS - Great Looking Case, love the White/Black Contrast - Great Cable Management - plenty of space and dedicated channels for cable management in the back. - Plenty of space to work in front (I'm using a Micro ATX motherboard) and found it to be the perfect size for tucking cables and making it look clean. - Comes with 2 Case Fans - Removeable front bracket for easy AIO installing CONS - I wish the top of the case was vented across the entire top, so you could top mount an AIO. There is only one small vented cutout to fit the pre-installed 120mm fan at the top for exhaust. - The top venting comment was me just being picky because at this price point, there isn't really much to complain about. I'm sure there are better airflow cases out there around this price point but if you're planning on using an AIO, that shouldn't matter too much. And if you're not building a super high-end system, this really is a great case. I absolutely loved building in it.
Posted 4 years ago by Jordevos
