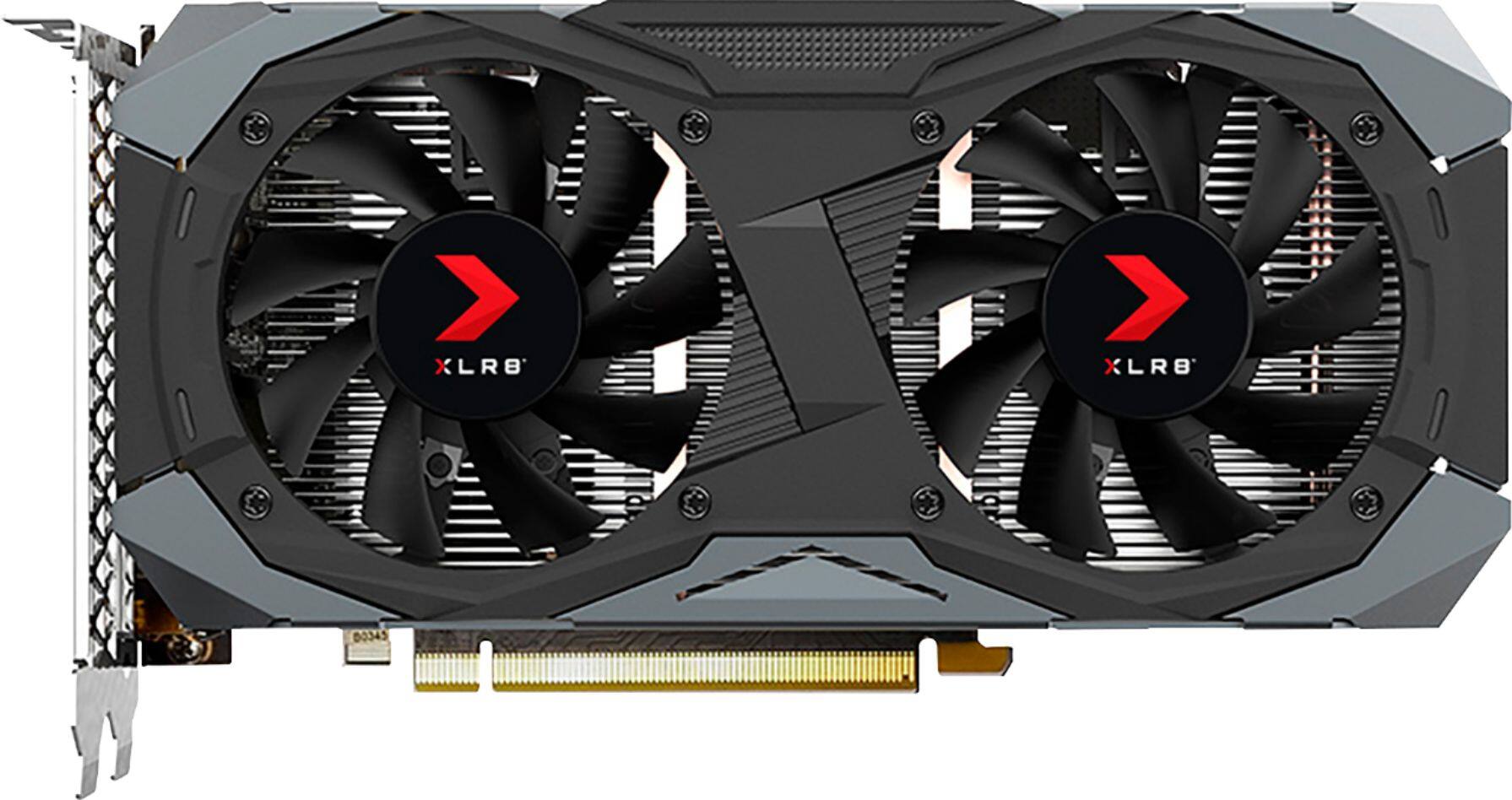

PNY - XLR8 Gaming NVIDIA GeForce GTX 1660 Overclocked Edition 6GB GDDR5 PCI Express 3.0 Graphics Card - Black
- Key Specs
- Maximum Number of Displays Supported: 3
- Advanced Graphics Rendering Technique(s): None (Imaging technology designed to improve graphics rendering.)
- Slot Size: Dual slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- Product Height: 4.9 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 1.6 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 9.1 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Graphics Processing Unit (GPU): NVIDIA GeForce GTX 1660 (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- General
- Product Name: XLR8 Gaming NVIDIA GeForce GTX 1660 Overclocked Edition 6GB GDDR5 PCI Express 3.0 Graphics Card
- Brand: PNY
- GPU Chipset Manufacturer: NVIDIA
- Graphics Processing Unit (GPU): NVIDIA GeForce GTX 1660 (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- Model Number: VCG16606DFMPB-O
- Performance
- Cooling System: Fan (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Display
- Maximum Number of Displays Supported: 3
- Advanced Graphics Rendering Technique(s): None (Imaging technology designed to improve graphics rendering.)
- Compatibility
- Slot Size: Dual slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- System Requirements: Linux (64-bit), Microsoft Windows 7 / 10 (64-bit) (The software that a product must have for it to be able to integrate with another product.)
- Operating System Compatibility: Linux, Windows
- Features
- Included Software: GeForce Experience
- Power
- Recommended Power Supply: 450 watts
- Dimensions
- Product Height: 4.9 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 1.6 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 9.1 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Other
- UPC: 751492628196
Game like a pro with this VR-ready PNY GeForce GTC 1660 graphics card. The 6GB of GDDR5 memory offer solid power for running high-resolution games at high speeds, while the DisplayPort, DVI-D and HDMI ports let you connect multiple 4K displays for total immersion in your favorite titles. This PNY GeForce GTC 1660 graphics card uses the NVIDIA Turing architecture for executing floating-point operations smoothly.
- Powered by the NVIDIA GeForce GTX 1660 graphics processing unit (GPU): With a 1530MHz clock speed and 1830MHz boost clock speed to help meet the needs of demanding games.
- 6GB GDDR6 (192-bit) on-board memory: Plus 1408 CUDA processing cores and up to 192GB/sec. of memory bandwidth provide the memory needed to create striking visual realism.
- PCI Express 3.0 x16 interface: Offers compatibility with a range of systems.
- NVIDIA CUDA technology: Harnesses the power of the graphics processing unit (GPU) to optimize computing performance.
- DirectX 12, OpenGL 4.5 and Vulkan support: Enhances gameplay by delivering ultrarealistic images, detail and texture and improved lighting effects that create lifelike interactivity.
- DVI, HDMI and DisplayPort outputs: Enable flexible connectivity.
Whats Included
- PNY XLR8 GeForce GTX 1660 Gaming Overclocked Edition
- GeForce Experience
Product Manuals
A: It is inline. It can do 6 or 8 pin as well it has both
A: Yes it’ll run just fine, I recommend tinkering with your settings to have the GPU a priority over the CPU where it can due to the lower end i3 (still holds up just not in newer, more demanding games)
Q: Can this graphic card run VR smoothly
A: Yes. My VR games run fine, but make sure you have a good all around pc. A good graphics card with poor quality cpu, ram etc. will still lead to a poor experience
A: undefined
A: yes i currently have it paired with a old intel core i7 extreme 975 with 24gb ddr3 ram in triple channel
Q: Is this compatible with the 4th gen I7?
A: i have it paired with a first gen i7 so it should be
Q: how much fps run on high fortnite settings
A: This will depend on your CPU and RAM as well, but as long as you have a decent CPU and 16GB of RAM, they won't hinder your GPU much. You can run Fortnite on Ultra in 1080p on this card and easily average 95-105 FPS. In 1440p on Ultra, you can expect around 75-85 FPS. If you run Fortnite on Pro or High, even in 1440p, you will push 95-100 FPS; 1080p on High will push 130 average FPS.
