Questions & Answers

Q: QuestionWill this work with Microsoft Surface Laptop 2? I have a Surface Laptop 2.

Asked 5 years ago by mauijoe.

• A:Answer Yes, this mini dock will connect to a Surface Laptop 2.

  Answered 5 years ago by J5create Team

  Helpful (3)Unhelpful (0)ReportAnswer this question

Q: QuestionIs it compatible with Microsoft Surface Laptop ?

Asked 5 years ago by SurfaceLaptopUser.

• A:Answer Yes, this item is compatible with Microsoft Surface Laptop.

  Answered 5 years ago by CommunityAnswer

  Helpful (2)Unhelpful (0)ReportAnswer this questionShow more answers (1)

Q: QuestionWill this doc work with a Surface Pro 3?

Asked 5 years ago by Alex.

• A:Answer The JDD320b is only compatible with Surface Pro models 4, 5, and 6.

  Answered 5 years ago by J5create Team

  Helpful (1)Unhelpful (0)ReportAnswer this question

Q: QuestionHas anyone tried this with the iPad pro (usb c)? Did it work?

Asked 5 years ago by chipnvirginia.

• A:Answer This mini dock is configured to work with Microsoft Surface models 4, 5 and 6. It will not connect correctly to an iPad Pro. The JCD386 would work and give you the exact same connections.

  Answered 5 years ago by J5create Team

  Helpful (1)Unhelpful (0)ReportAnswer this question

Q: QuestionWill this item work with a Surface Go and can it connect to more than one monitor?

Asked 5 years ago by Cpalermo.

• A:Answer Hello SJ, The j5create - UltraDrive Mini Dock USB 3.0 and Mini DisplayPort Docking Station (JDD320) is designed specifically for Microsoft Surface 4/5/6 tablets. The JDD320 has 2 separate connectors that need to be connected to the computer, a Mini DisplayPort and a USB 3.0, which are set to the specifications of Microsoft Surface 4/5/6 tablets. The Microsoft Surface Go, uses a USB-C connector instead of having a Mini DisplayPort and a USB 3.0 port. I recommend that you consider the j5create - USB Type-C Mini Docking Station (JCD381) or the j5create - USB Type-C Multi Adapter JCD383. The JUD381 is compatible with Windows and macOS computers that have a USB-C port and will support 2 HDMI displays. Although, you will have to switch your Surface Go tablet out of Windows 10 S Mode, in order to install driver software for the device to operate. The JCD383 offers 1 HDMI port, upon a variety of other ports, and is entirely plug-and-play.

  Answered 5 years ago by J5create Team

  Helpful (1)Unhelpful (0)ReportAnswer this question

Q: QuestionDoes the mini dock Jcd381 work with the surface go 3?

Asked 2 years ago by Shaz.

Q: QuestionDoes this product work with surface Pro 4, and does it have an Ethernet AND HDMI port?

Asked 5 years ago by Whitz20.

• A:Answer Yes, the JDD320B is compatible with the Surface Pro 4; it does have one HDMI port, but no Ethernet. There are other devices with more capabilities and in order to offer an alternative to meet your needs, we recommend contacting support on the casing and an agent will be happy to help.

  Answered 5 years ago by J5create Team

  Helpful (0)Unhelpful (0)ReportAnswer this question

Q: QuestionWill this Mini Dock station fit with my Surface pro 6 all Shell cases or just specific ones?

Asked 5 years ago by Fritz.

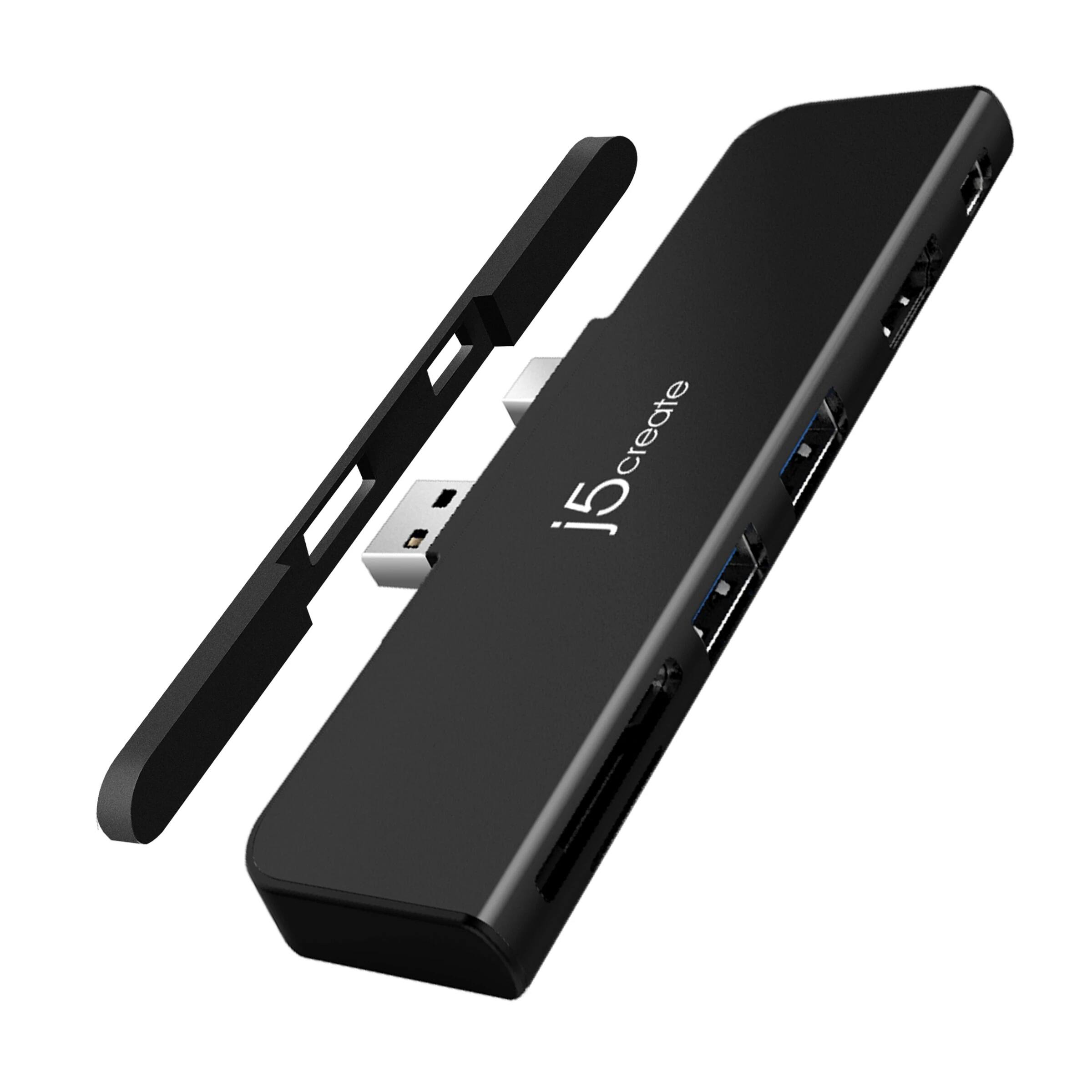

• A:Answer There is a rubber band that can be removed to use the device with a case, however the case will need to have a clear slot between the USB and Mini DisplayPort.

  Answered 5 years ago by J5create Team

  Helpful (0)Unhelpful (0)ReportAnswer this questionShow more answers (1)

Q: QuestionWill this allow me to power two additional monitors from my Surface 6?

Asked 5 years ago by Hotch.

• A:Answer Hi Hotch, unfortunately the JDD320 will only provide one additional monitor since it is plug and play device. If you wish to use two additional monitors we would recommend the JUD380 instead as it requires a driver and that allow the use of a VGA and HDMI monitor at the same time. ** Feel free to contact the Technical Support team on the packaging for device warranty registration, further assistance or if you have any other questions and someone will be glad to assist you. Thanks.

  Answered 2 years ago by J5create Team

  Helpful (0)Unhelpful (0)ReportAnswer this questionShow more answers (1)

Q: QuestionIs there any way to connect two monitors using this minidock?

Asked 5 years ago by Neal.

• A:Answer Yes, The Mini Displayport of the JDD320b can also be used to add a second display when used alongside the HDMI port.

  Answered 5 years ago by J5create Team

  Helpful (0)Unhelpful (0)ReportAnswer this question

Q: QuestionWill this work on a Surface pro 4 tablet connecting through the USB -C cable on a J5Create JCD543 docking station for my monitor and other device connections.

Asked 5 years ago by Bert.

• A:Answer The JDD320B is compatible wiith the Surface Pro 4, 5, and 6. However the device must be connected directly to the computer. It does not have a USB C connections so would not be compatible with the JCD543.

  Answered 5 years ago by J5create Team

  Helpful (0)Unhelpful (0)ReportAnswer this question

Q: Questioncan this be used as a powersource for my surface pro 4?

Asked 5 years ago by Anonymous.

• A:Answer No, the JDD320 is for mice, keyboard, flash drive, SD cards and either HDMI or mini displayport at a time; the JDD320 will not charge your Surface Pro PC.

  Answered 5 years ago by J5create Team

  Helpful (0)Unhelpful (0)ReportAnswer this questionShow more answers (3)

Q: QuestionWill this work with the Lenovo Yoga c930

Asked 5 years ago by imprecious.

• A:Answer It fits into 2 ports that are close together on the Surface. So my assumption is no.

  Answered 5 years ago by Gandolf

  Helpful (0)Unhelpful (0)ReportAnswer this questionShow more answers (1)

Q: QuestionCan you connect 2 external displays, a mouse, and keyboard? If so, can you leave the surface pro in tablet mode for hand-writing notes while simultaneously using the external mouse and keyboard for note taking on the external displays? Extend/duplicate

Asked 5 years ago by David.

• A:Answer With the j5create JDD320, you can connect a mouse, keyboard, flash drive via USB-A and you can also connect either an HDMI or mini displayport through the JDD320 as well. Because the JDD320 is a plug-and-play device; no driver required, it can only support one external monitor at a time, and you cannot use both the HDMI and mini displayports at the same time. Yes, you can leave it in Tablet mode as that is a setting with Windows.

  Answered 5 years ago by J5create Team

  Helpful (0)Unhelpful (0)ReportAnswer this questionShow more answers (2)

Q: Questionis this capable with hp spectre x360?

Asked 5 years ago by Anonymous.

• A:Answer No, this mini dock is for a Microsoft Surface model 4, 5, and 6. The connections on the dock are configured to attach to those model's port configurations.

  Answered 5 years ago by J5create Team

  Helpful (0)Unhelpful (0)ReportAnswer this question

Q: QuestionDoes this support 4k?

Asked 5 years ago by TSVM.

• A:Answer Yes, it supports up to 3840 x 2160 (4K) @ 30 Hz via HDMI™ and up to 4K @ 60 Hz via mini DisplayPort™ (*only one port can be used at a time).

  Answered 5 years ago by J5create Team

  Helpful (0)Unhelpful (0)ReportAnswer this question

Q: QuestionWill this work with a USB Monitor? I need to extend my display and the Usb hubs don’t work.

Asked 5 years ago by BBYCustomer2003.

• A:Answer Hello Gel, The j5create - UltraDrive Mini Dock USB 3.0 and Mini DisplayPort Docking Station (JDD320) is designed specfically for use with the Microsoft Surface Pro 4/5/6. If you are using a Microsoft Surface Pro 4/5/6, you may use the JDD320 to add: 1 additional monitor over HDMI or Mini DisplayPort, 2 USB 3.0 ports, and 1 SD/Micro SD card reader to your computer. We intend for low-powered USB devices, such as flash drives, mice, and keyboards, to be connected to the USB ports on the JDD320. The USB 3.0 ports on the JDD320 offer <900mA of power. So long as the USB Monitor that you are using does not require >900mA, you should be able to use the USB Monitor through our device.

  Answered 5 years ago by J5create Team

  Helpful (0)Unhelpful (0)ReportAnswer this question

Q: QuestionHow does this connect to the computer? Does it fit into a USB port on the side of the computer?

Asked 5 years ago by sj.

• A:Answer Hello SJ, The j5create - UltraDrive Mini Dock USB 3.0 and Mini DisplayPort Docking Station (JDD320) is designed specifically for Microsoft Surface 4/5/6 tablets. The JDD320 have 2 separate connectors that need to be connected to the computer, a Mini DisplayPort and a USB 3.0, which are set to the specifications of Microsoft Surface 4/5/6 tablets. If you do not have a Microsoft Surface 4/5/6 tablet, I recommend that you consider the j5create - USB 3.0 Mini Docking Station (JUD380). The JUD380 is compatible with Windows and macOS computers that have a USB 3.0 port.

  Answered 2 years ago by J5create Team

  Helpful (0)Unhelpful (0)ReportAnswer this questionShow more answers (1)

Q: Questionwill it work with a chromebook?

Asked 5 years ago by Tampa.

• A:Answer Unfortunately, this device will not work on a Chromebook.

  Answered 5 years ago by J5create Team

  Helpful (0)Unhelpful (0)ReportAnswer this question
