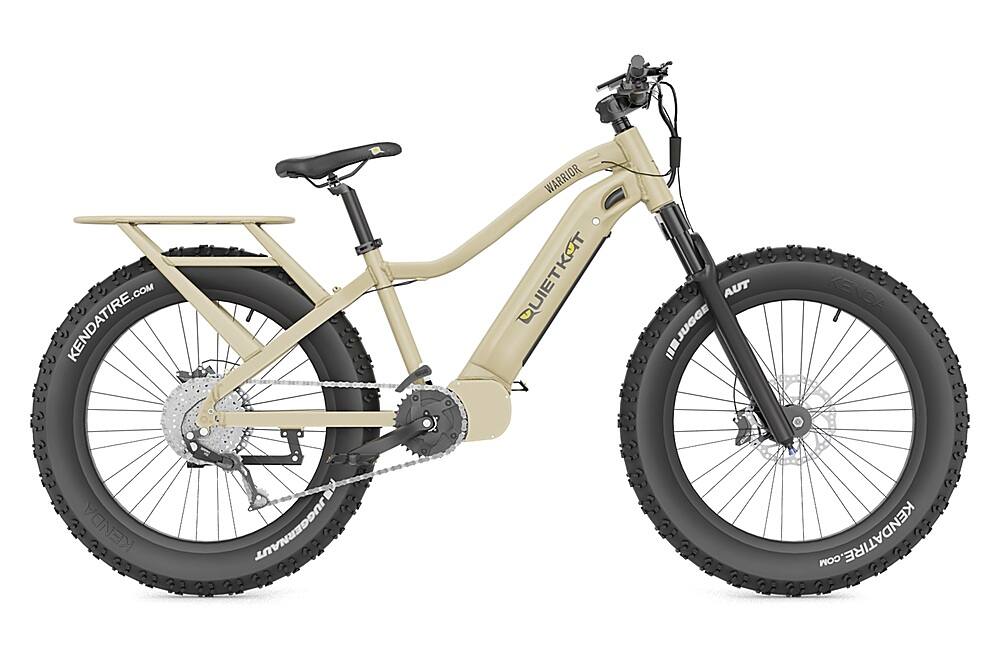

Name: QuietKat - Warrior eBike w/48 Mile Range & Max Speed 20 mph - Medium - Sandstone
Brand: QuietKat
SKU: 6476453
Rating: 0 (0 reviews)

Key Specs
- Product Weight: 70 pounds (The out of box weight of the item.)
- Maximum Operating Range: 48 miles
- Maximum Speed: 20 miles per hour
- Throttle Control Mechanism: Thumb
- Electric Bike Classification: Class 1 (Refers to the out of the box classification of the electric bike prior to any additional modifications. The three-tiered classification system is used to define and regulate the operation of the vehicle based on its speed capabilities. The use of these vehicles varies from state to state so it is important to check your local regulations prior to operating. Class 1: The bicycle is equipped with a motor that provides assistance only when the rider is pedaling, which ceases to assist when the e-bike reaches 20 miles per hour. Class 2: Bicycle equipped with a throttle-actuated motor that ceases to assist when the e-bike reaches 20 miles per hour. Class 3: The bicycle is equipped with a motor that provides assistance only when the rider is pedaling, which ceases to assist when the e-bike reaches 28 miles per hour.)
- Color: Sandstone
General
- Product Name: Warrior eBike w/48 Mile Range & Max Speed 20 mph
- Brand: QuietKat
- Electric Bike Classification: Class 1 (Refers to the out of the box classification of the electric bike prior to any additional modifications. The three-tiered classification system is used to define and regulate the operation of the vehicle based on its speed capabilities. The use of these vehicles varies from state to state so it is important to check your local regulations prior to operating. Class 1: The bicycle is equipped with a motor that provides assistance only when the rider is pedaling, which ceases to assist when the e-bike reaches 20 miles per hour. Class 2: Bicycle equipped with a throttle-actuated motor that ceases to assist when the e-bike reaches 20 miles per hour. Class 3: The bicycle is equipped with a motor that provides assistance only when the rider is pedaling, which ceases to assist when the e-bike reaches 28 miles per hour.)
- Bicycle Type: Adults bike
- Bike Style: Electric bikes
- Assembly Required: Yes
- Model Number: 21 WAR 75 SND 17
- Color: Sandstone
Dimensions
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Height: 36 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 60 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 70 pounds (The out of box weight of the item.)
- Maximum Weight Capacity: 325 pounds (The maximum load that can be supported by the product.)
- Recommended Maximum User Height: 72 inches
- Recommended Minimum User Height: 66 inches
- Bicycle Size: Medium (The size of the bicycle as stated by the manufacturer.)
Display
- Display Type: LED
Performance
- Maximum Operating Range: 48 miles
- Maximum Speed: 20 miles per hour
Power
- Throttle Control Mechanism: Thumb
- Batteries Included: true (Indicates whether the product comes with the required batteries for its operation.)
- Removable Battery: false
- Battery Charge Time: 5 hours (Battery charge time will vary depending on the product configuration, product model, applications loaded on the product, power management setting of the product and the product features used by the customer. Charging time will likely decrease with time and usage of the battery.)
- Battery Chemistry: Lithium-ion
- Battery Voltage: 11.6 volts
- Rear-Rack Mounted Battery: false
Features
- Padded Seat: false
- Adjustable Seat(s): true
- Kickstand: true
- Front Rack: false
- Rear Rack: true
- Fenders: true
Design
- Bicycle Frame Design: Step-over (Step-through frames, also known as open-frame or low-step bicycles, have a lower curved horizontal top tube which allow the rider to step through the frame when mounting and dismounting. Step-over frames, also known as diamond frames, have a horizontal top tube that connects to the seat tube and down tube to form a triangle. Riders must step over the frame when mounting and dismounting this style of bicycle.)
- Foldable Design: false
- Frame Material(s): Aluminum
- Gear Shifting Method: Trigger
- Derailleur: true
- Chain Guard: false
Brakes
- Brake Style: Disc
- Rear Brakes: true
Tires
- Wheel Diameter: 26 inches
- Wheel Thickness: 4.5 inches
Other
- UPC: 609832636267

The Warrior features the power and large torque advantage of a mid-drive motor with the budget-friendly performance component package. An integrated rack and compatibility with all QuietKat accessories make the Warrior an excellent choice to explore the outdoors and the perfect bike for hunting and fishing in flatter, more moderate terrain.

Engineered for the outdoors: Performance level components keep the price point a bit lower to make room in the budget for accessories.
Top-quality motor: The Warrior's mid-drive motor utilizes the full range of gears for maximum torque for climbing steep mountains or hills.
Flexible classification: Available as a 1000W unclassified eBike for maximum power or programmed at 750W for Class 1 and Class 2 compliance.
Improved suspension: Up front, you'll find 120 millimeters of travel out of the coil-suspension fork.
Advanced brakes: Outfitted with Tektro Mechanical Disc brakes so you can navigate steep descents with confidence.
Fat tires: Fitted with high-quality 26" x 4.5" tires to tackle tough terrain from soft sand and snow to hardpack trails and rocks.
Rider flexibility: Multiple sizes available, large 17 or 19-inch frame sizes.
8 Speeds: Built with an SRAM 8-speed drivetrain that allows you to adjust your gears for steep ascents and descents.
Recommended Height: 17'' Bike Height Recommendations- 5 feet 6 inches-6 foot
