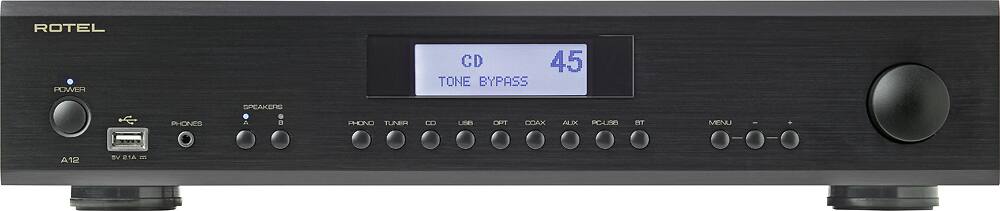

Rotel - 120W 2.0-Ch. Amplifier - Black
- Key Specs
- Continuous Watts x Channel @ Ohms: 60 Watt x 2 @ 8 Ohm
- Number of Channels: 2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- General
- Product Name: 120W 2.0-Ch. Amplifier
- Brand: Rotel
- Model Number: A-12 BLACK
- Audio
- Continuous Watts x Channel @ Ohms: 60 Watt x 2 @ 8 Ohm
- Total Power Handling: 120 watts (How much amplifier (amplified) power (wattage) that can be handled before damaging the product.)
- Number of Channels: 2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Minimum Frequency Response: 10 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Total Harmonic Distortion: 0.03 percent (Measurement of the harmonic sound distortion. The lower the percentage, the cleaner the sound.)
- Maximum Frequency Response: 100 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Amplifier Class: AB (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Signal-to-Noise Ratio (SNR): 100 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Sensitivity: 200 decibels
- Bass Boost: None (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Audio
- Impedance: 8 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Inputs
- Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Features
- Bridgeable: false (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Dimensions
- Product Height: 3.7 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 16.9 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 13.6 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 17.6 pounds (The out of box weight of the item.)
- Other
- UPC: 672563242113
Enhance the output quality of your digital music files with this Rotel RA-12 amplifier. Its Bluetooth connectivity lets you stream music directly from your mobile device with deeper bass and midrange clarity for your discerning ears. This Rotel RA-12 amplifier also has a dedicated moving magnet phono input for a convenient turntable connection when playing your prized vinyl records.
- 120W total power: RMS rating of 60W x 2 @ 8 ohms, 20 - 20 kHz, 0.03% THD, 2 channels driven for robust audio.
- 8 ohms impedance: Efficiently conducts power.
- Class AB design: Combines efficiency with fidelity for high-powered operation.
Whats Included
- Rotel 120W 2.0-Ch. Amplifier
Q: What subwoofer can be used with the Rotel A12?
A: Any powered sub should work. You would just connect it to the pre-amp out on the back of the unit. At most you may have to get an RCA Y cable if the sub you choose only has 1 RCA jack on the back of it.
A: The A12 easily powers my B&W 684s. I’ve turned it up past the 70 mark a few times without any issues. But that’s pretty loud so I’m not usually up past that. I don’t have a receiver connected. My sources are CDs, digital FLAC files and sometimes iPhone via Bluetooth. I’m really happy with the A12. Hope this helps
A: This integrated amplified has a built-in phono preamplifier. First, the most obvious question: have you plugged your turntable into the phono inputs? If you plug it into any of the other inputs, the signal won't go through the phono preamp. The phono preamp amplifies the low-level signal from your phono cartridge and also applies RIAA equalization (boosts lows and cuts highs). Another possibility is that you have a moving coil (MC) phono cartridge rather than a moving magnet (MM) type. MC has lower output than MM and requires a phono preamp suitable for MC cartridges. It's also possible you have a MM cartridge with lower than typical output. The input sensitivity of the A12's phono preamp is specified as 3 mV. Compare that to your cartridge's spec.
Q: Pls advise, what voltage range it has: 110-240V or only 110V?
A: If you bought a US version of the A12, then just as the specifications plainly state (you can download the manual via the...gasp...internet): Power Requirements USA 120V, 60 Hz or a European version EC 230V, 50 Hz.
Q: Can I run 6 ohm speakers on this amp. like the Elac Uni Fi series?
A: The amp is designed to drive speakers of 8 Ohm nominal impedance (of course impedance of a speaker varies with frequency). Nevertheless, it should be able to drive the Elac's. (I have the A14 MkII and have used it with Wharfedale Linton Heritage speakers, which are also rated at 6 Ohms). And since the A12 MkII has recently been released, you should be able to find the A12 discounted (at least $200 from Best Buy's price, so get them to price match).
