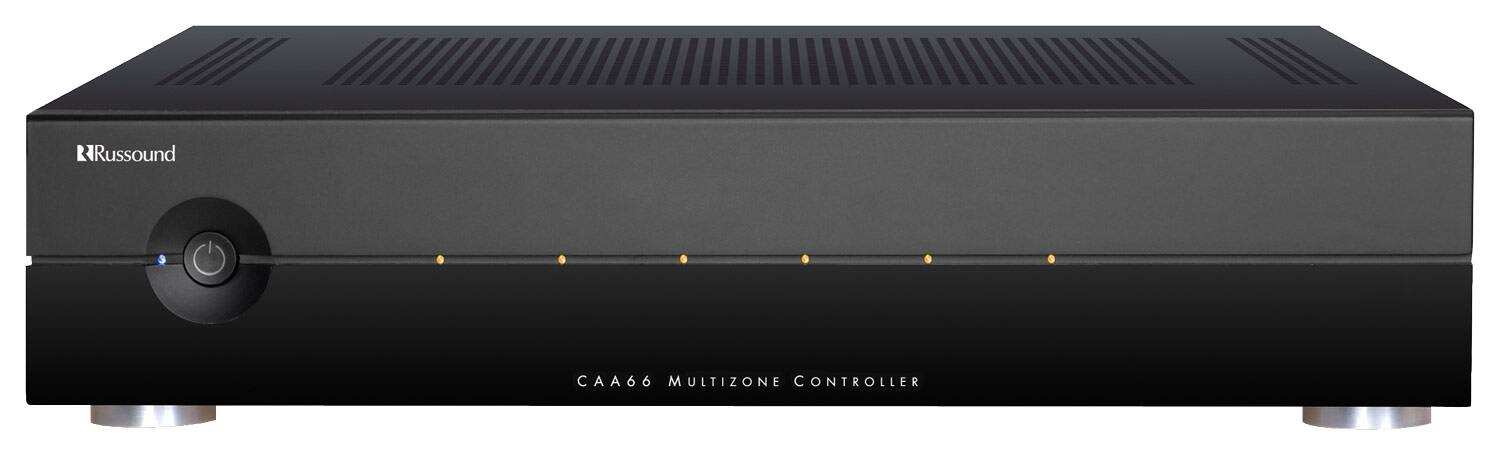

Name: Russound - 240W 6-Zone Controller Amplifier - Black
Brand: Russound
SKU: 4428008
Rating: 0 (0 reviews)

Key Specs
- Number of Channels: 12 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
General
- Product Name: 240W 6-Zone Controller Amplifier
- Brand: Russound
- Model Number: CAA66
Audio
- Total Power Handling: 240 watts (How much amplifier (amplified) power (wattage) that can be handled before damaging the product.)
- Number of Channels: 12 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Minimum Frequency Response: 20 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Total Harmonic Distortion: 0.10 percent (Measurement of the harmonic sound distortion. The lower the percentage, the cleaner the sound.)
- Maximum Frequency Response: 20 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Signal-to-Noise Ratio (SNR): 90 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Bass Boost: None (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
Audio
- Impedance: 8 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
Features
- Fan Cooled: false
- Bridgeable: false (Bridging an amplifier increases the power it supplies to the speaker(s).)
Dimensions
- Product Height: 7.2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 12 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 23 pounds (The out of box weight of the item.)
Other
- UPC: 612934524882

Control your home audio environment with this Russound CAA66 controller amplifier, which includes 6-zone output with 40W per zone for robust audio throughout your home. Built-in IR learning offers simple, intuitive control with your A/V system.

240W system power (40W x 6 zones): Delivers rich audio performance.
6 zones: Each with 2 channels to support stereo operation in multiple areas of your home.
Front-panel controls: Offer simple operation.
Built-in IR learning: Along with an IR library provides intuitive control.
Controller link input and output: Along with a rear RS-232 serial controller port for easy connectivity. Color-coded, detachable 14-gauge snap connectors make setup a breeze.
Rack-mountable design: Enables simple installation.
