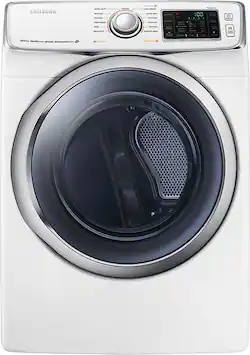

Samsung - 7.5 Cu. Ft. 13-Cycle Electric Dryer with Steam - White
- Key Specs
- Product Height: 38.75 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 27 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 32.5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth With Door Open: 51.19 inches (Measurement from the back of the product to its front, with door fully open.)
- Capacity: 7.5 cubic feet
- Steam Function: true (In washers, this feature may be employed before, during, or after the main wash cycle. Steam aids in stain removal, activating detergent, sanitizing, and softening wrinkles. In dryers, this feature can be used to remove wrinkles or quickly freshen clothing items.)
- Dryer Heating Source: Electric
- Moisture Sensor: true (This feature automatically senses moisture levels of the items in the cycle to determine the proper drying time.)
- Matching Washer Model Number: DV45H6300EW
- Stackable: true (To stack with similar products, ensure that the necessary support and/or installation hardware is in place to reduce safety hazards.)
- Color Finish: White
- General
- Product Name: 7.5 Cu. Ft. 13-Cycle Electric Dryer with Steam
- Brand: Samsung
- Model Number: DV45H6300EW
- Color Finish: White
- Dimensions
- Product Height: 38.75 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 27 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 32.5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth With Door Open: 51.19 inches (Measurement from the back of the product to its front, with door fully open.)
- Product Weight: 126 pounds (The out of box weight of the item.)
- Capacity
- Capacity: 7.5 cubic feet
- Features
- Steam Function: true (In washers, this feature may be employed before, during, or after the main wash cycle. Steam aids in stain removal, activating detergent, sanitizing, and softening wrinkles. In dryers, this feature can be used to remove wrinkles or quickly freshen clothing items.)
- Water Source: Fill hose
- Dryer Heating Source: Electric
- Automatic Temperature Control: false (This feature regulates hot and cold temperatures of the water or air within the appliance in order to keep them in the optimal range for each cycle.)
- Moisture Sensor: true (This feature automatically senses moisture levels of the items in the cycle to determine the proper drying time.)
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
- Delay Start: false (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
- End-Of-Cycle Signal: true (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
- Time-Remaining Display: true
- Vibration Reduction: false (Additional features, such as sensors that adjust spin speeds or weights that counter unbalanced loads, help to minimize vibration for smoother, quieter operation.)
- Interior Light(s): true
- Design
- Reversible Door Hinge: true
- Exhaust Vent Location: Ventless
- 4-Way Venting: true (The appliance has four possible vent locations (right, left, front, or rear), which allows for placement versatility.)
- Control Type: Analog
- Control Location: Front panel
- Drum Material: Stainless steel
- Drying Rack: true
- Window: true
- Cycle Specifications
- Number Of Drying Cycles: 13
- Compatibility
- Pedestal Available: true
- Matching Washer Model Number: DV45H6300EW
- Stackable: true (To stack with similar products, ensure that the necessary support and/or installation hardware is in place to reduce safety hazards.)
- Electrical Specification
- Amperage: 30 amperes (Strength of electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- NSF Listed: true (Meets the National Sanitation Foundation's standards for public health protection.)
- Other
- UPC: 887276963402
Samsung 7.5 Cu. Ft. 13-Cycle Electric Dryer: This dryer makes doing laundry simple with 13 cycles for a wide variety of fabrics. A moisture sensor monitors the drying process to ensure that your clothes aren't overdried.
Measure Twice, Deliver Once
Learn how to measure your space and check connections for a new washer and dryer.
Watch the video ›
How to Prepare for Delivery and Installation
Learn how to get ready for the delivery and installation of your new electric dryer. Walk the path, check your hookups, order new parts, and empty your old dryer.
Watch the video ›
- Smart Care lets you troubleshoot issues from your smartphone: The dryer connects with your smartphone to perform an immediate diagnosis and offer quick solutions.
- Vent Sensor detects duct blockages: It reminds you when to clean your vent. You can even have these alerts forwarded to your smartphone.
- Lint filter indicator: Get notified when the filter needs to be cleaned.
- Large capacity so you can complete your laundry in less loads: 7.5 cu. ft. D.O.E. capacity.
- Safely dry all your garments and linens with 1 of 13 cycles: Includes wrinkle away, eco normal, quick dry, sanitize, delicates and more.
- Select the perfect drying temperature for your clothes: Choose from 5 temperature settings to protect your fabrics.
- Reduce odors and freshen clothes: Use the Steam Dry cycle when you need to quickly reduce wrinkles.
- Ideal drying time and energy savings with Sensor Dry technology: Detects moisture levels and automatically adjusts drying time to accommodate each load.
- Save time between loads with an end-of-cycle signal: Know exactly when it's time to change your load with an audible signal.
- Front-load design to save space: With an optional stacking kit, you can add the matching washer (sold separately).
- Reversible door enables flexible placement: Window lets you easily see drying clothes. Drum light provides a clear view of the dryer's interior.
- Easily operate your washing machine: Up-front digital controls and LED display offer easy operation.
- Durable drum: Made with stainless steel to prevent rust and discoloration.
- Keep children safe: Child lock prevents unintentional or unauthorized use of the dryer.
Whats Included
- 7.5 Cu. Ft. 13-Cycle Electric Dryer with Steam
- Drying rack
- Owner's manual
- Short inlet rubber hose, long inlet rubber hose
- Y connector, rubber washer
Q: why is the dryer not getting hot
A: undefined
Q: Do you have to use the steam feature or can you still use dryer without hooking up the water line?
A: We didn't connect the steam line. It works great!
Q: How to hook up if it is across the room from washer?
A: if you have a basement run a water line under the floor then back up to dryer
Q: What are the missing accessories. Also what is the height & width?
A: Well i bought a 4 prong 240 power cord for it and a dryer vent kit that included the dryer vent hose and fittings i needed for it but thats all i needed.
Q: where is the exhaust vent ? Middle of machine? Right side? Left side?
A: It comes out of the back on the right side about 3 inches off the floor, however you can get vent relocation kit and vent it out of the left side, right side, or the bottom. I have mine vented out the bottom.
Q: Can a countertop be installed on top of this dryer?
A: I'm pretty sure those measurements are for a closed in area such as a small closet with a door that closes because I seem to remember I read somewhere in the owner's manual where they recommend even leaving your door open/cracked when you use the washer/dryer. There's a sensor on the dryer that measures airflow.
Q: the steam function uses a water reservoir or need a water supply hose
A: The DV45H6300EW comes with the water supply hose and Y-connector needed to access fresh water for the Steam feature, rather than storing water in a reservoir. Thanks for your interest, Ms. Samsung
