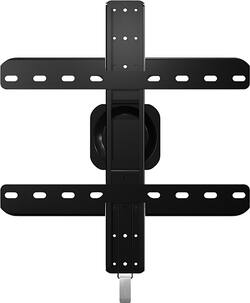

Sanus - Premium Full-Motion TV Wall Mount for Most 40" - 50" TVs - Extends 18" - Black
- General
- Product Name: Premium Full-Motion TV Wall Mount for Most 40" - 50" TVs - Extends 18"
- Brand: Sanus
- Model Number: VMF518-B1
- Features
- Mount Profile: Flush (The view of the product when seen attached to a wall or surface.)
- Compatibility
- Maximum Weight Capacity: 75 pounds (The maximum load that can be supported by the product.)
- Compatibility: Most 40" - 50" TVs weighing up to 75 lbs.
- Mount Location: Wall
- Maximum Television Size: 50 inches
- Minimum Television Size: 40 inches
- VESA Wall Mount Standard: No VESA wall mount pattern (VESA wall mount standards refer to the spacing of screw holes built into a TV in order to fit with standard TV wall mounts. These standards are implemented into most TVs and monitors.)
- Dimension
- Product Height: 19 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17.25 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 3.38 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Maximum Extension: 18 inches
- Material
- Mount Material: Metal
- Warranty
- Manufacturer's Warranty - Parts: 10 years limited
- Manufacturer's Warranty - Labor: 10 years limited
- Other
- UPC: 793795526229
This Sanus Premium VMF518-B1 wall mount features tilt and swivel capabilities and extends up to 18", so you can enjoy a comfortable view of your TV's screen. The mount accommodates most 40" - 50" TVs weighing up to 75 lbs.
- Compatible with most 40" - 50" TVs: Up to 75 lbs. for sturdy support.
- Full-motion adjustment: Enables tilt and swivel capability, as well as up to 18" extension, so you can enjoy a clear view of your TV almost anywhere in the room.
- Steel material: For long-lasting use.
- Click, lock and release: Provides safety and easy access.
- Decorative cover: Hides hardware for a finished look.
- Integrated cable management: Routes cords and wires from your TV to the wall for easy organization.
- VESA compliant: Including VESA 200mm x 200mm, 300mm x 200mm, 300mm x 300mm, 400mm x 200mm, 400mm x 300mm, 400mm x 400mm, 500mm x 400mm, 600mm x 400mm, 700mm x 400mm and 800mm x 400mm for a variety of mounting options.
- Built-in keyhole: Allows simple installation.
Whats Included
- Sanus Premium Full-Motion TV Wall Mount for Most 40" - 50" TVs - Extends 18"
- Mounting hardware
- Installation template
- Owner's manual
Q: Protrusion?
A: 6.5 inches from wall to front of TV. Not too invasive. When there are limited places available to mount it is well worth the convenience of having it up off a TV stand/cabinet and the flexibility to move the TV and tilt it.
Q: Dimensions of wall mount for VMF-518
A: The part that actually attaches with 2 lag bolts to the stud is 3" wide by 8-1/4" tall. That's all that sits on the wall. There's a swing arm (triple-knuckled) that comes off from that that the tv hangs on. I've got a 48", very heavy tv on mine and couldn't be happier. Hope this helps.
Q: What is the best way to remove the TV from the wall mount for temporary use elsewhere?
A: There is a "tag' on the wall mount at the bottom that you "pull" and it unlocks the wall mount. Easy to attach and unattach the tv to the wall mount.
A: by the way, it's in this corner of our living room.
Q: Would this braket fit a 40" Sony Bravia?? Model. KDL-40W650D
A: Hey Erneejf, Yes! They are a perfect fit! If you are ever curious, check out the MountFinder on BestBuy.com to verify. Let us know if you need anything else. Thanks! Jake @ SANUS
Q: will this work on an LG 49" model number 49UF6430SKU Vesa compatibility 300 x 300mm?
A: This product will work with most 49" TVs.
Q: wil this wall mount work with a Philips Model 43pfl4609/fb? Thanks
A: Yes, it works! Just confirmed it is compatible on the MountFinder on bestbuy.com: http://mf1.bestbuy.selectionassistant.com/
