Serial 1 - MOSH/CTY eBike, w/up to 105mi Max Operating Range & 20mph Max Speed - Xlarge - Black

Name: Serial 1 - MOSH/CTY eBike, w/up to 105mi Max Operating Range & 20mph Max Speed - Xlarge - Black
Brand: Serial 1
SKU: 6486798
Rating: 5 (2 reviews)

Model: 15400395

SKU: 6486798

This item is no longer available in new condition. See similar items below

Key Specs
- Product Weight: 48 pounds (The out of box weight of the item.)
- Maximum Operating Range: 105 miles
- Maximum Speed: 20 miles per hour
- Electric Bike Classification: Class 1 (Refers to the out of the box classification of the electric bike prior to any additional modifications. The three-tiered classification system is used to define and regulate the operation of the vehicle based on its speed capabilities. The use of these vehicles varies from state to state so it is important to check your local regulations prior to operating. Class 1: The bicycle is equipped with a motor that provides assistance only when the rider is pedaling, which ceases to assist when the e-bike reaches 20 miles per hour. Class 2: Bicycle equipped with a throttle-actuated motor that ceases to assist when the e-bike reaches 20 miles per hour. Class 3: The bicycle is equipped with a motor that provides assistance only when the rider is pedaling, which ceases to assist when the e-bike reaches 28 miles per hour.)
- Color: Black
General
- Product Name: MOSH/CTY eBike, w/up to 105mi Max Operating Range & 20mph Max Speed
- Brand: Serial 1
- Electric Bike Classification: Class 1 (Refers to the out of the box classification of the electric bike prior to any additional modifications. The three-tiered classification system is used to define and regulate the operation of the vehicle based on its speed capabilities. The use of these vehicles varies from state to state so it is important to check your local regulations prior to operating. Class 1: The bicycle is equipped with a motor that provides assistance only when the rider is pedaling, which ceases to assist when the e-bike reaches 20 miles per hour. Class 2: Bicycle equipped with a throttle-actuated motor that ceases to assist when the e-bike reaches 20 miles per hour. Class 3: The bicycle is equipped with a motor that provides assistance only when the rider is pedaling, which ceases to assist when the e-bike reaches 28 miles per hour.)
- Bicycle Type: Adults bike
- Bike Style: Electric bikes
- Assembly Required: Yes
- Model Number: 15400395
- Color: Black
Dimensions
- Product Width: 27.2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Height: 45 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 77.8 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 48 pounds (The out of box weight of the item.)
- Maximum Weight Capacity: 280 pounds (The maximum load that can be supported by the product.)
- Recommended Minimum User Height: 72 inches
- Bicycle Size: Xlarge (The size of the bicycle as stated by the manufacturer.)
Connectivity
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
Display
- Display Type: LED
- Information Displayed: Battery life, Assist mode
Performance
- Maximum Operating Range: 105 miles
- Maximum Speed: 20 miles per hour
Power
- Batteries Included: true (Indicates whether the product comes with the required batteries for its operation.)
- Removable Battery: true
- Battery Charge Time: 4.7 hours (Battery charge time will vary depending on the product configuration, product model, applications loaded on the product, power management setting of the product and the product features used by the customer. Charging time will likely decrease with time and usage of the battery.)
- Battery Chemistry: Lithium-ion
- Battery Capacity: 529 watt hours (The amount of energy stored in the battery.)
- Battery Amperage: 15 ampere hours
- Battery Voltage: 36 volts
- On/Off Switch: true
- Battery Indicator Light: true
- Rear-Rack Mounted Battery: false
Features
- Passenger Ready: false
- Padded Seat: true
- Adjustable Seat(s): true
- Adjustable Handlebar(s): false
- Kickstand: true
- Front Rack: false
- Fenders: false
Design
- Bicycle Frame Design: Step-over (Step-through frames, also known as open-frame or low-step bicycles, have a lower curved horizontal top tube which allow the rider to step through the frame when mounting and dismounting. Step-over frames, also known as diamond frames, have a horizontal top tube that connects to the seat tube and down tube to form a triangle. Riders must step over the frame when mounting and dismounting this style of bicycle.)
- Foldable Design: false
- Frame Material(s): Aluminum
- Gear Shifting Method: None
- Derailleur: false
- Chain Guard: true
- Alloy Rims: true
Brakes
- Brake Style: Disc
- Rear Brakes: true
Tires
- Wheel Diameter: 27.5 inches
- Wheel Thickness: 2.8 inches
Other
- UPC: 810093260003

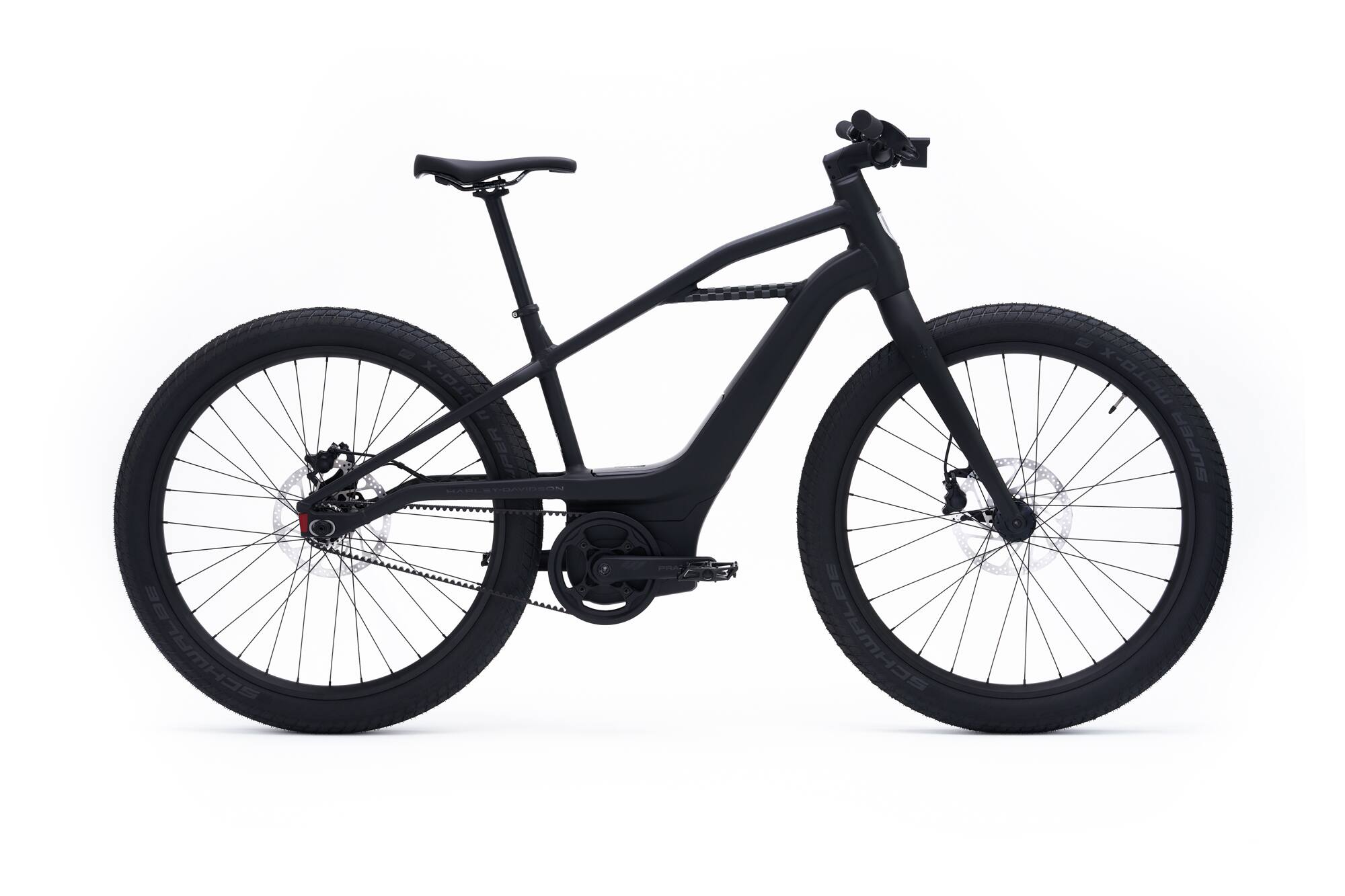

The ultimate urban playbike. The MOSH/CTY model is a pedal-assist eBicycle designed for trend-setting adults seeking a stylish and flexible way to move around their fast-paced urban environments. Fly faster and farther, solo or in a pack. It’s quick, nimble and an absolute ripper.

Motor: The lightweight, mid-mounted Brose S MAG motor features a brushless internal rotor and produces 90Nm/66 ft. lb. torque, plenty of power assistance to provide a quick launch from a standing start and to give the rider the ability to conquer challenging hills.
Belt: The Gate carbon-fiber belt drive is smooth, quiet, and maintenance-free; it requires none of the frequent lubrication or adjustment of a traditional chain-drive system.
Hub: MOSH/CTY uses a single-speed freewheel hub for the most direct connection between the rider and the road.
Battery: The MOSH/CTY is equipped with an integrated, 529Wh lithium-ion battery that can be quickly removed from the frame without tools. The battery locks into the the frame for enhanced security
Range: The integrated, removable, 529Wh lithium-ion battery delivers a real-world range of 35-105 miles, depending on ride-mode selection, terrain, and how much pedal input the rider supplies.
Charging: The lithium-ion battery can be charged on-the-bike through a charging port conveniently located on the frame downtube, or easily removed for off-the-bike charging. Charge times are as follows: 0-100% = 4.75hrs; 0-75% = 2.6hrs.
Brakes: Front and rear hydraulic disc brakes utilize two-piston calipers and 203 x 1.8mm brake rotors designed to deliver confident braking performance in most riding conditions. This is essential for faster-moving eBicycles and all-weather commuting.
Wheels and Tires: Wheels consist of 27.5 x 35mm alloy rims laced with stainless-steel spokes and fit with high-volume, 2.8-inch Schwalbe Super Moto-X tires. The result is a perfect combination of low rolling resistance, ample shock absorption, and responsive, predictable handling.
Lighting: LED headlamp on the handlebar stem illuminates the path ahead. Bright combination LED tail and brake lights integrated into the frame make the bike more visible from the rear.
Ride Modes: Eco Mode for a gentle amount of assistance in flat-and-favorable conditions. Tour Mode for the optimal blend of assistance. Sport Mode for pronounced assistance for hills, Boost Mode for steep hills, strong winds or other conditions requiring a boost
Sizing: Frame geometry is optimized for each frame size to maintain a comfortable riding position and consistent handling across all rider sizes, regardless of rider height. Size is based on inseam and height.
Integration: Brake lines and electrical wiring are routed through the frame, promoting longer life and less maintenance through protection from the elements and clean, snag-free styling.
Styling: Contemporary design touches like the sleek, integrated battery, the elevated chainstays, and the mass-centralized motor position all mark the beauty, craftsmanship and emotional connection inspired by Harley-Davidson.
What Size Bike is for Me?: SMALL = 4'11" - 5'7", MEDIUM = 5'3" - 5'10", LARGE = 5'7" - 6'1", XLARGE = 5'9 - 6'5"+. Note the overlap on all sizes. Riders will easily fit on more than one size for all models.
Sizing Recommendations: We recommend the smaller size if you want the ebike to feel more responsive and playful & larger size if you want the ebike to feel more steady and stable for straight line cruising or carrying cargo.
