Swann - 16-Channel, 12-Camera Indoor/Outdoor Wired 1080p 1TB DVR Surveillance System - Black/White
- Key Specs
- Camera Resolution: 1920 x 1080 (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Field Of View: 90 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
- Night Vision: true
- Number Of Cameras Included: 12
- Works With: Amazon Alexa, Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
- Number Of Channels: 16
- Storage Type: DVR
- Indoor Or Outdoor Use: Indoor and outdoor (Indicates the appropriate environment product was designed to be used in.)
- General
- Product Name: 16-Channel, 12-Camera Indoor/Outdoor Wired 1080p 1TB DVR Surveillance System
- Brand: Swann
- Model Number: SWDVK-1645812WL-US
- Camera
- Video Camera Resolution: Full HD (1080p) (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Camera Resolution: 1920 x 1080 (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Field Of View: 90 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
- Night Vision: true
- Night Vision Distance: 32 feet
- Number Of Cameras Included: 12
- Number Of Cameras Supported: 16
- Day/Night Mode: true (Captures images/video with optimal clarity by automatically adjusting settings to various light levels.)
- IP Camera: Wired (An Internet Protocol (IP) camera is able to record and display image/video data via the internet, without need for a local recording device.)
- Camera Infrared Distance: 100 feet (The distance over which the camera's infrared, or night vision, capabilities can detect objects.)
- Camera Mount Type: Wall mount
- Power
- Battery Backup: false (Provides power if the main power source is unavailable.)
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Camera Compatibility: Most Swann wired BNC cameras
- Operating System Compatibility: Android, Apple iOS, Mac, Windows
- Works With: Amazon Alexa, Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
- Connectivity
- Camera Connectivity: Wired (Security system cameras can be set up in several ways. Wired cameras require cables for power and footage transmission, while wire-free cameras don't need cables for either. Wireless cameras still require cables for receiving power but are able to transmit footage via a wireless network.)
- Recording & Playback
- Streaming Video: true (The ability to transmit a live video feed from the product.)
- Records Audio: false
- Subscription: Optional and included
- Number Of Channels: 16
- Storage
- Storage Type: DVR
- DVR Storage Capacity: 1000 gigabytes
- Internal Storage Capacity Upgradeable Upto: 4000 gigabytes
- Performance
- Indoor Or Outdoor Use: Indoor and outdoor (Indicates the appropriate environment product was designed to be used in.)
- Protective Qualities: Water resistant
- Features
- Mobile Notifications: true
- Auto-On Detection: Motion
- Alarm Type: Visual
- Alarm Location: On camera
- Dimensions
- Camera Height: 3.07 inches
- Camera Width: 2.24 inches
- Camera Depth: 5.67 inches
- DVR Height: 1.9 inches
- DVR Width: 9.05 inches
- DVR Depth: 8.3 inches
- Sensor
- Sensors: Motion sensor, Temperature sensor (Detects stimuli such as heat, light, sound, motion, or pressure and responds accordingly by operating a control or initiating a function of the device.)
- Motion Detection Range: 32 feet
- Output
- DVR Output(s): HDMI, RCA audio, USB 2.0, VGA
- Included
- Camera(s) Included: true
- DVR Included: true
- Monitor Included: false
- Remote Control Included: false
- Cable(s) Included: true
- Other
- UPC: 840236126330
Cover all the security angles with this Swann 12-camera 16-channel DVR security system. The reliable wired connection ensures dependable surveillance 24/7, while the True Detect technology offers accurate motion and heat detection that triggers push notifications. This Swann 12-camera 16-channel DVR security system features Full HD resolution so you see every detail with clarity.
- Notifications keep you informed: Receive movement detection notifications that contain recorded footage and give you the options to watch live and turn on spotlights.
- Monitor your property with 12 cameras: Includes twelve 4K PRO-1080 cameras for recording high-resolution wide-screen video.
- View and record from up to 16 channels: Add up to four more cameras of your choice for 16-channel simultaneous monitoring. Compatible with most Swann cameras.
- Set and forget with hard drive storage: Record continuously from 16 channels with a 1TB hard drive.
- Infrared night vision lets you see in the dark: Keep an eye on things up to 100' away when there's little to no light.
- Viewing angle up to 90°: Expertly captures a wide angle of your property for exceptional security all the time.
- Weather-resistant design: The aluminum construction and IP66 rating protect against wind and rain for versatile indoor and outdoor monitoring.
- Live viewing and real-time playback: Easy setup for wide-screen, real-time video playback on displays up to 1080p with high-speed Internet or smartphone connectivity.
- Works with Google and Alexa voice assistants: Use voice commands via Alexa the Google Assistant with Chromecast to stream video from your security cameras to your TV hands-free.
- Swann Security app: See livestreaming from multiple cameras, receive alerts when activity is detected, and store footages and images directly on your mobile device.
- HDMI and VGA outputs: Connect to a wide range of compatible displays for versatile viewing, including your HDTV, LCD, or plasma TV. USB connectivity makes it easy to transfer stored footage.
- Dropbox integration: Set up the system to upload still images to your Dropbox account in the cloud, so you'll always have image evidence off-site.
- DIY installation: Includes everything you need for a simple camera mounting, such as 60' cables, screws, wall plugs and more.
Whats Included

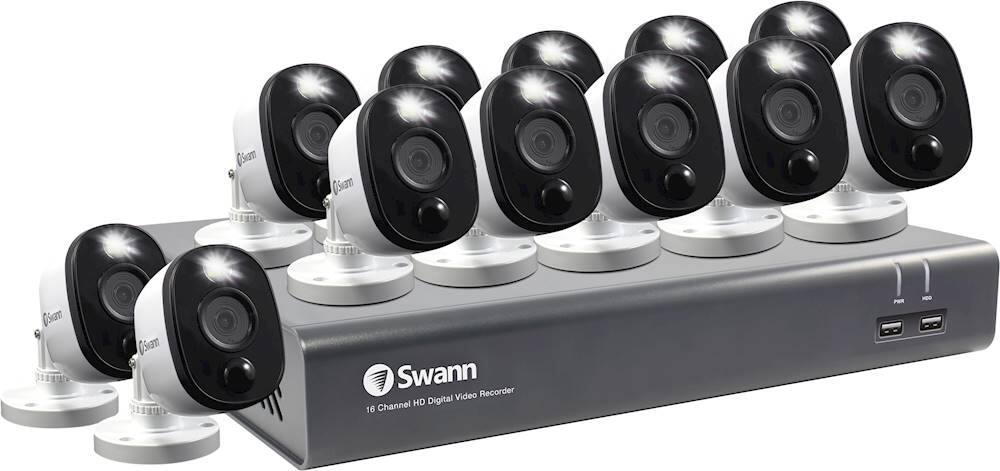

- Swann 16-Channel, 12-Camera Indoor/Outdoor Wired 1080p 1TB DVR Surveillance System
- 12 PRO-1080MSFB 1080p full hd sensor warning light cameras
- 10 60' Bnc cables
- Ethernet and HDMI cables
- Power adapter and splitter
- Mouse
- Theft deterrent stickers
- Mounting screws and plugs
- Quick start guide
- Owner's manual
A: Hello, Thank you for reaching out to us with your question. Yes, these units can be remotely accessed on your smart phone via the Swann Security application available for IOS/Android devices. You can do this while at or way from home. Please let us know how we may further assist you, Thank you. JV Swann Customer Support
A: Hello GoldenRealtor, Thank you for your question. Yes, when set up you can have both video and still images uploaded to your DropBox Cloud. Please let us know how we may further assist you, Thank you, JV Swann Customer Support
A: Hello Ray, Thank you for reaching out to us with your question. The camera will require power with the supplied adapter. This will plug into the 60 foot BNC cable. You will receive 1 BNC cable per camera. Please let us know how we may further assist you, Thank you. JV Swann Customer Support
Q: Can you view the surveillance system from a nap while you're away on your phone?
A: Yes you can. It’s good for close up or distance. I’ve attached photos of both examples and also the screen with all camera views. Hope this helps. It gives you a step by step instruction guide. I’ve been using Swann for 5 years. I’ve had a total of 5 systems for both of my stores. I’ve replaced one twice but only because the quality continues to get better and I finally broke down and got the big system. That is the way to go if you have a need for 5 or more cameras. Hope this helps. Feel free to ask anymore questions. -Tracy. PS, one thing I will say is the image isn’t as crisp on my phone as it is on the monitor attached to the system. I’m imagining it’s because of the 1080p resolution. It’s super crisp on my monitor. So crisp that the police have commented on it and actually used it in a homicide investigation. (Sorry to go dark there but it just says a lot about the resolution.)
Q: Is there a monthly fee with Swann systems?
A: Hello JBD, Thank you for reaching out to us with your question. Swann does not charge any monthly installments for our systems. Consumers want smart security solutions that prevent crime, interconnect with one another, and offer value with no recurring fees, and this is what we are delivering with the new Swann Security products. Please let us know how we may further assist you, Thank you. JV Swann Customer Support
Q: Does the swann have sound that you can talk through it or listen from it?
A: No, this model does not have audio capturing.
Q: Can this system be set to record all the time or is it strictly motion detection?
A: Hello, Thank you for reaching out to us. Yes, this kit can be set to continuously record onto its 1 TB hard drive. Please let us know how we may further assist you, Thank you. JV Swann Customer Support
A: Hello Jojo, Thank you for reaching out to us with your question. No, this system does not require an internet connection in order to record into its 1 TB hard drive. This can be accessed while connected to a monitor using the HDMI/VGA cords on the back of the unit. Please be advised that an internet connection is required when remotely accessing your unit. Please let us know how we may further assist you, Thank you. JV Swann Customer Support
