Tesla - Wall Connector Level 2 Hardwired Electric Vehicle (EV Charger) - up to 48A - 24' - White
Installation: Get your EV charger professionally installed by our service partner Helm Smart Energy
Specifications
General
Product NameWall Connector Level 2 Hardwired Electric Vehicle (EV Charger) - up to 48A - 24'BrandTeslaModel Number1517085-XX-YColorWhite
Power
Electric Vehicle Charging LevelLevel 2Input Wiring TypeHardwiredPower RequirementsNominal 200-240V AC single-phaseCircuit Breaker NeededYes. Requires 60A, 50A, 40A, 30A, 20A, or 15A breaker. Includes integrated GFCI protection.Charging RateUp to 11.5kW (on 60A breaker)Charging Cable Length24 feetSurge ProtectionN/A
Connectivity
Connector Type(s)TeslaWireless ConnectivityWi-Fi
Compatibility
App Compatibletrue
Features
Overload ProtectiontrueNumber of Vehicles Charged Simultaneously1Mount TypeWall, Stand
Certifications Listings & Approvals
ENERGY STAR CertifiedtrueCertifications and StandardscULus - E351002Product Safety Certifications and Standard(s)cULus, UL Listed
Environmental
Indoor or Outdoor UseOutdoorMinimum Operating Temperature-22 degrees fahrenheitMaximum Operating Temperature122 degrees fahrenheitNEMA Enclosure RatingType 3R
Dimensions
Product Height13.6 inchesProduct Width6.1 inchesProduct Depth4.3 inchesProduct Weight11.4 pounds
Warranty
Warranty - Parts4 year for Residential use and 1 year for Commercial use.Warranty - LaborNot Applicable
Other
UPC860009564008
Features
The Tesla Wall Connector is our most convenient charging solution for Tesla vehicles and is ideal for houses, apartments, hospitality properties and workplaces. A faster and Wi-Fi enabled option for your Tesla vehicle, Wall Connector receives over-the-air updates so the charger becomes better over time. Wall Connector adds up to 44 miles of range per hour (or 11.5 kW). Must be installed by a qualified electrician.
Vehicle compatibility
Compatible with Tesla vehicles.
Charging speed
Up to 44 mi of range added per hour at 11.5 kW / 48 amp output
App experience
Monitor and manage your charging schedule and usage from the Tesla app.
Ease
Over-the-air firmware updates for continual product improvements and access control. Auto-sensing handle to open a Tesla charge port
Variable amperage
Allows max output to be customized to an existing power supply and supports any output up to 48A. Possible max output configurations include: 48A, 40A, 32A, 24A, 16A, 12A.
What's Included
EV charger and user manual
Manuals & Guides
User Manual
Energy Ratings
Questions & Answers (47)
Q: Can the maximum output amperage be adjusted on this charger? (1 answers)
A: Yes, the Tesla Wall Connector allows for variable amperage, with a maximum output customizable up to 48A.Q: Does this charger have WiFi connectivity? (1 answers)
A: Yes, the Tesla Wall Connector has WiFi connectivity for over-the-air firmware updates and access control.Q: What is the length of the charging cable included with the Tesla Wall Connector? (1 answers)
A: The Tesla Wall Connector comes with a convenient 24ft charging cable.Q: What is the warranty period for this Tesla Wall Connector? (1 answers)
A: The Tesla Wall Connector has a four-year warranty for residential use and a one-year warranty for commercial use.Q: How many Tesla Wall Connectors can I link together for power sharing? (1 answers)
A: You can link up to six Wall Connectors for efficient power management.Q: What is the maximum charging speed of this Tesla Wall Connector? (1 answers)
A: The Tesla Wall Connector can provide up to 44 miles of range per hour of charging, or 11.5kW on a 60A breaker.- A: A single Wall Connector can only charge one car at a time. Tesla does have a “load sharing” feature that allows multiple Wall Connectors to split the available power on a circuit between them and charge two cars at once but you would have to buy a second Wall Connector.
Q: Which generation of this TWC? (5 answers)
A: 3rd gen

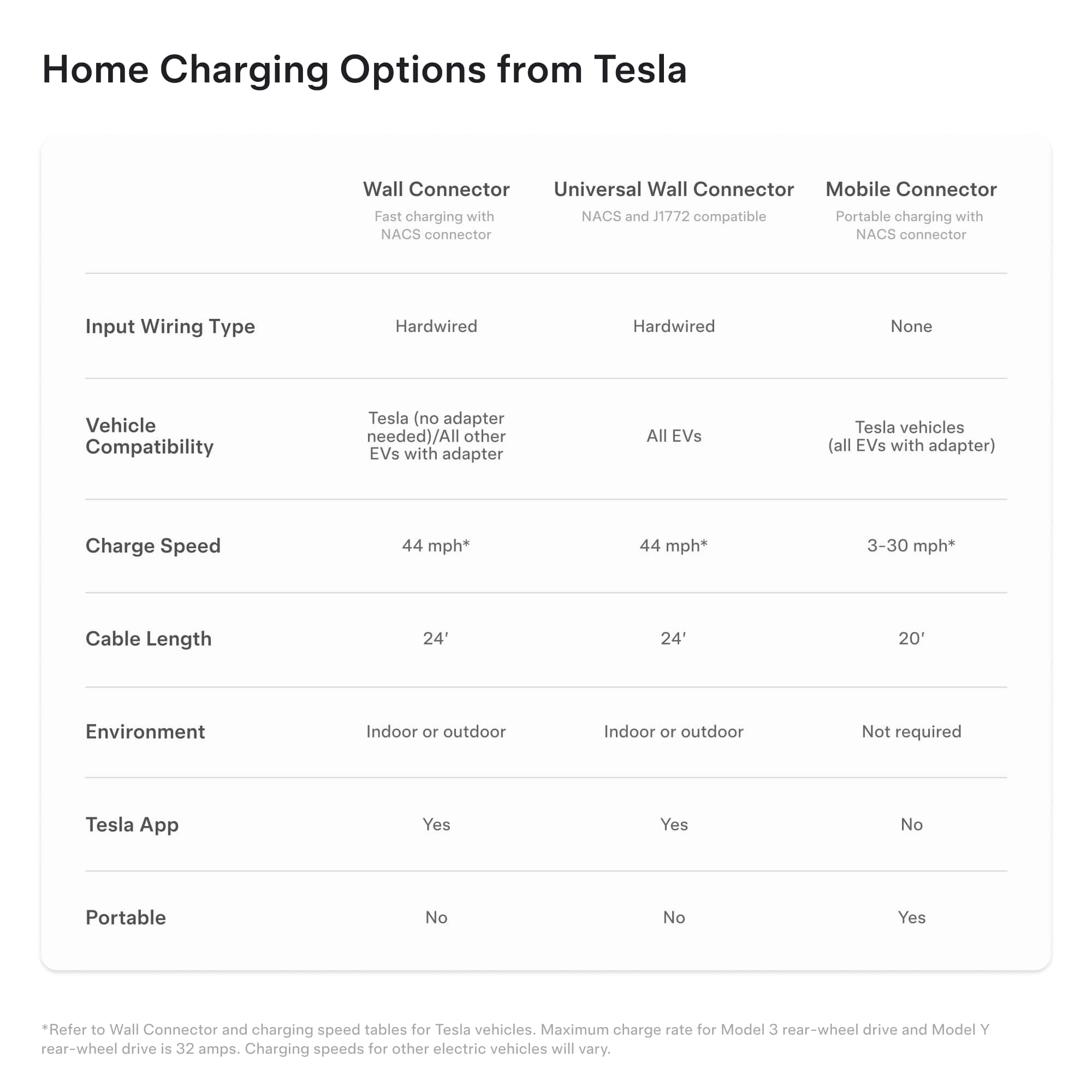

Compare similar products

Product Name | Wall Connector Level 2 Hardwired Electric Vehicle (EV Charger) - up to 48A - 24' | Universal Wall Connector Level 2 Hardwired Electric Vehicle (EV) Charger – up to 48A– 24’ | Mobile Connector, Portable Electric Vehicle (EV) NACS Charger up to 32A, 20ft cord | Tesla Level 2 NEMA 14-50 Electric Vehicle (EV) Charger- up to 40A - 16' |
---|---|---|---|---|
Brand | Tesla | Tesla | Tesla | Lectron |
Model Number | 1517085-XX-Y | 1734411-XX-Y | 1763817-00-A | LECHG14-50-40ATSLBLKUS |
