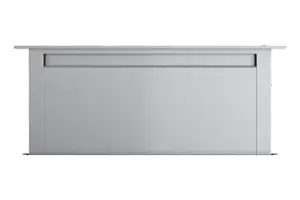

Thermador Masterpiece - 36 inches - Convertible & Recirculating - Telescopic Downdraft Range Hood - Stainless Steel
Shipping
Specifications
Key Specs
Product Height44 3/8 inchesProduct Width37 inchesProduct Depth2 3/4 inchesExhaust Vent LocationRearVent TypeDucted, DuctlessVent StyleConvertible, RecirculatingColor FinishStainless steel
General
Product NameMasterpiece Series 36" Telescopic Downdraft SystemBrandThermadorModel NumberUCVM36XSVendor CollectionThermador MasterpieceColorStainless SteelColor FinishStainless steel
Dimensions
Product Height44 3/8 inchesProduct Width37 inchesProduct Depth2 3/4 inchesStandardized Width36 inchesProduct Weight47 poundsDuct ShapeRoundRound Duct Diameter8 inches
Features
Exhaust Vent LocationRearVent TypeDucted, DuctlessVent StyleConvertible, RecirculatingTelescopingtrueRange Hood TypeDowndraftWireless ConnectivityNoneNumber of Fan Speeds3Temperature SensortrueControl TypeTouch padDisplay TypeNoneDelay Shut-OfftrueIntegrated Light(s)false
Filter Info
Filter MaterialAluminumDishwasher-Safe FiltertrueRemovable Grease Filtertrue
Electrical Specification
Amperage10 amperesVoltage120 volts
Warranty
Warranty - Parts2 YearsWarranty - Labor2 Years
Other
UPC825225960898
Features
Enhance your Thermador cooktop experience with this 36-inch Masterpiece downdraft ventilation. It blends seamlessly into the countertop and is the perfect space-saving solution equipped with easy-to-remove, dishwasher-safe filters. Capture heat, smoke, grease, and steam with the Masterpiece 15-inch telescopic rise, and discharge using one of six different options. The heat sensing functionality automatically adjusts the fan speeds for you, while Powerfully Quiet technology keeps the blower noise to a minimum.
Blends seamlessly into countertop
Blends seamlessly into the countertop and is the perfect space-saving solution. The Downdraft disappears into the counter when not in use without compromising performance.
15-inch Telescopic Design
15-inch telescopic design rises to capture heat, smoke, grease, and steam and retreats for a sleek unobstructed kitchen view.
Easy-to-remove, dishwasher-safe filters
Dishwasher-Safe Filters combine the elements of a filter with a splatter shield in one easy-to-remove, dishwasher-safe element. These filters maximize grease capture without affecting Downdraft range airflow.
Personalization options with flexible discharge connections
Personalization options available with six discharge connections, including front, side, rear and downward exhaust options, as well as recirculation—so you are not limited by kitchen design or pre-determined space.
Powerfully Quiet
Powerfully Quiet system accepts integral, inline, and remote blowers so you can choose the installation that is best and reduce noise while hood is in use. Ventilation should be seen, not heard.
3 Fan speeds for the perfect air flow for any cooking situation
3 fan speeds that lets you choose the perfect air flow power for any cooking situation and can handle high-power cooking.
Recirculation Kit available
Recirculation Kit is available for use with induction/electric cooktops only.
Grease filter reminder
The filter button will illuminate when dishwasher safe grease filter needs to be cleaned to ensure optimal performance.
What's Included
Thermador Masterpiece Series 36" Telescopic Downdraft System
Owner's manual
Manuals & Guides
Specification Sheet (PDF)
Installation Guide (PDF)
Use and Care Manual (PDF)
Product Datasheet/Brochure
Questions & Answers (14)
Q: Is it difficult to clean the Thermador downdraft? (1 answers)
A: This model features a sleek design and touch controls that can easily be cleaned with a damp cloth.Q: What type of filters does this system use? (1 answers)
A: This system uses dishwasher-safe, aluminum mesh filters.Q: How high does the telescopic downdraft rise? (1 answers)
A: The telescopic design rises a full 15 inches to effectively capture smoke and steam.Q: Does this downdraft system have a light? (1 answers)
A: No, this model does not have integrated lights.Q: How many fan speeds does the Thermador downdraft have? (1 answers)
A: This downdraft system offers 3 fan speeds to choose from.Q: Can this downdraft be used with an electric cooktop? (1 answers)
A: Yes, a recirculation kit is available for use with electric or induction cooktops.- A: It rises 15" perfect for the pasta pot.
Q: Does this system include a vent that takes away smoke? (1 answers)
A: Hi Lenny, thank you for your interest. This downdraft ventilation system is a kitchen vent that will remove smoke. The blower motor is sold separately, see your retailer for helpful information on what is needed.
