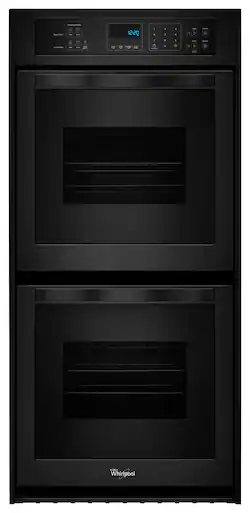

Whirlpool - 24" Built-In Double Electric Wall Oven - Black
- Key Specs
- Product Height: 51 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 25 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Oven 1 Convection: false (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Convection: false (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Color Finish: Black
- General
- Product Name: 24" Built-In Double Electric Wall Oven
- Brand: Whirlpool
- Model Number: WOD51ES4EB
- Color: Black
- Color Finish: Black
- Dimensions
- Product Height: 51 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 25 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 24 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Depth With Door 90 Degrees Open: 43 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
- Product Weight: 66 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 49 3/4 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 22 5/8 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 23 1/4 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Oven 1 Capacity: 3.1 cubic feet
- Oven 2 Capacity: 3.1 cubic feet
- Features
- Oven Type: Double wall oven
- Oven Power Source: Electric
- Fingerprint Resistant: false
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Control Type: Touchpad
- Clock Display: true
- Lock Type: Self-cleaning mode lock
- Oven Light: true
- Design
- Display Type: None
- Functions
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Delay Clean Option: true
- Hidden Bake Element: false (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Keep Warm Setting: true
- Variable Broil: false (This feature allows you to change the temperature of the broil function, which provides more versatility and control when preparing your favorite foods.)
- Timer: true
- Time Bake: true (Allows you to program the appliance to run at a pre-determined time and automatically turn off when baking time is finished. Plan for mealtime or entertaining by setting your oven to start baking at a convenient time and reduce the worry of overcooking your food with the automatic shut off feature.)
- Rapid Preheat: false
- Dehydration Settings: false (This function sets the oven at a low temperature, typically under 200 degrees Fahrenheit, for an extended period of time. During this time, warm air circulates throughout the oven to draw moisture out of foods.)
- Oven 1 Specification
- Oven 1 Location: Upper
- Oven 1 Interior Height: 16 inches
- Oven 1 Interior Width: 19 inches
- Oven 1 Interior Depth: 19 5/8 inches
- Oven 1 Cavity Material: Porcelain
- Oven 1 Convection: false (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 1 Window: true
- Oven 1 Cleaning Method: Self-High Heat Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 1 Rack Positions: 5
- Number of Oven 1 Racks: 2
- Oven 1 Bake Element: 2000 watts
- Oven 1 Broil Element: 3600 watts
- Oven 2 Specification
- Oven 2 Location: Lower
- Oven 2 Interior Height: 16 inches
- Oven 2 Interior Width: 19 inches
- Oven 2 Interior Depth: 19 5/8 inches
- Oven 2 Cavity Material: Porcelain
- Oven 2 Convection: false (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Window: true
- Oven 2 Cleaning Method: Self-High Heat Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 2 Rack Positions: 5
- Number of Oven 2 Racks: 2
- Oven 2 Bake Element: 2000 watts
- Oven 2 Broil Element: 3600 watts
- Electrical Specification
- Amperage: 40 amperes (Strength of electrical current.)
- Voltage: 240 volts (Amount of power needed to support an electrical current.)
- Wattage: 2000 watts (Measurement of electrical power.)
- Amperage At 208 Volts: true
- Amperage At 240 Volts: true
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Certifications Listings & Approvals
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Product Safety Certifications and Standard(s): CSA Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 883049357034
Whirlpool double wall oven: Finish dinner and begin dessert at the same time with this double wall oven, which features AccuBake temperature management for even heating. The 12-hour delay-start option lets you begin cooking when it's most convenient for you, even if you aren't at home.
- Self-cleaning mode: Uses high heat to power through tough, burned-on foods, so you can relax with your family.
- Provides plenty of space: 3.1 cu. ft. capacity in each oven for accommodating your needs.
- Cook multiple courses simultaneously: 4 oven racks (2 upper, 2 lower) with 10 guide positions (5 upper, 5 lower) ensure flexibility.
- Arrive home to freshly baked foods: 12-hour delay-start lets you begin cooking when most convenient for you, even if you aren't at home.
- Keep side dishes hot until the main course is ready: Keep-warm setting allows you to coordinate your meal with ease.
- Maintain a temperature for an extended period of time: Sabbath mode enables easy compliance with kosher cooking practices.
- Child lock: Helps your family stay safe by preventing accidental use.
Whats Included
- 24" Built-In Double Electric Wall Oven
- Trim, installation hardware
- Owner's manual
Q: Where does the electrical outlet need to be ?
A: The electrical outlet was located at the top of the back wall in the cutout for the built-in double oven. The original outlet was exchanged for an updated plug. The new oven was taller so the cut out was enlarged to fit.
A: tc- Here is a link to the double ovens that are available for purchase. http://bit.ly/2oGscYU
Q: what are the interior dimensions of each oven?
A: Both ovens are the same size. The interior measurements are 16" (h) x 19 (w) x 19.63" (d).
A: What matters is the size of the hole cut out not the oven. Our cutout needed a slight enlargement. This is what it was when ready to insert the ovens. 24 inches wide, 52 inches tall, You also need at least a minimum depth to the back wall of the house. We had 25 inches and that was fine. Sounds as if you likely have the width and depth if there is another oven in there now, but may need a trim at the top or bottom of the hole.
Q: are both ovens self cleaning?
A: No top oven self cleaning only.
A: Kate: The actual exterior width of the oven is 23 3/4, so you will have an extra 3/4 inch gap. The oven doesn't come with any kind of additional trim for these situations and I doubt Whirlpool would have any type of trim kit since it would be impossible for them to know what type of cabinetry they would have to try and match. Depending on your cabinetry, maybe you can find a similar piece of paneling or wood that you can cut down and use to fill the gaps on each side. Off hand, I can't think of an easier solution outside of buying a bigger oven... which I assume isn't really an option.
Q: What is the installation charge and do you haul away the old oven.
A: I believe it was about $180 and yes the will hail it away for $15
Q: Does the 24" model come with a microwave on top?
A: We apologize but currently there is not a 24 inch combination wall over offered. Hopefully this information is beneficial to you. Thank you for your inquiry regarding our Whirlpool appliances!
